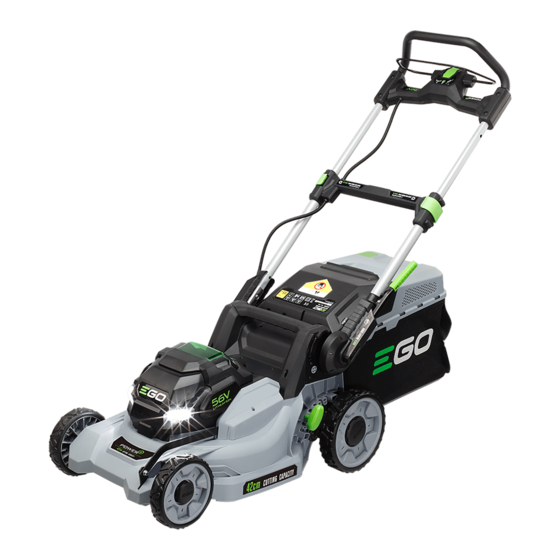

OPERATOR'S MANUAL
56 VOLT LITHIUM-ION
CORDLESS MOWER
MODEL NUMBER LM1700E/LM1700E-SP
WARNING: To reduce the risk of injury, the user must read and understand the
Operator's Manual before using this product. Save these instructions for future reference.
MNL_EGO_LM1700E LM1700E-SP_AV01.01_210510

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LM1700E-SP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EGO LM1700E-SP

Summary of Contents for EGO LM1700E-SP

  • Page 1 OPERATOR’S MANUAL 56 VOLT LITHIUM-ION CORDLESS MOWER MODEL NUMBER LM1700E/LM1700E-SP WARNING: To reduce the risk of injury, the user must read and understand the Operator’s Manual before using this product. Save these instructions for future reference. MNL_EGO_LM1700E LM1700E-SP_AV01.01_210510...
  • Page 2 2. Switch Lever 3. Safety Button 1. Self-propel Speed-control Knob 4. Handle 18. Handle- Locking Clamp 5. Full-grass Indicator 6. Grass Bag Handle 17. Side Rail 16. Quick-Adjust 7. Rear-Discharge Door Lever 8. Rear Handle 15. Grass Bag 9. Battery-Pack Cover 14.
  • Page 3 Bag Cover Mounting Slot Side Clips Ribs Frame Frame Bottom Clip Grass Bag Attachment/Removal Upper Operating Position Locked Middle Operating Storage Position Position Lower Operating Position Cutting Height Adjusting Level Safety Key Safety Key Slot Battery-release Button...
  • Page 5 Power indicator Stabilizer 1 Stabilizer 2 14mm Wrench Inner Flange Blade S-5 Bolt Outer Flange Fan S-5 Bolt...

  • Page 7: Safety Symbols

    SAFETY INSTRUCTIONS This page depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate it. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...

  • Page 8: General Power Tool Safety Warnings

    Such unavoidable, use a residual current device (RCD) preventive safety measures reduce the risk of starting protected supply. Use of an RCD reduces the risk of the power tool accidentally. electric shock. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 9 Do not expose a battery pack or tool to fire ◾ or excessive temperature. Exposure to fire or While mowing, always wear substantial footwear and temperature above 130 °C may cause explosion. long trousers. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 10 ◾ Switch off and remove detachable battery pack (or disabling device) and make sure that all moving parts have come to a complete stop before adjusting or cleaning: 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 11 Thrown objects that ricochet can cause serious injury to the eyes. Always use a face or dust mask if the operation is dusty. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 12 Inspect for damage; manual. Contact EGO Customer Service or your closest ◾ Replace or repair any user replaceable damaged EGO service center, and repairs or replacements shall be parts; performed by a qualified service technician! ◾ Check for and tighten any loose parts.

  • Page 13: Specifications

    18. Handle-Locking Clamp Cutting Height Positions 7 19. Self-propel Switch Deck Size 46cm 46cm 20. Safety Key Slot Cutting Width 42cm 42cm 21. Battery-Release Button 22. Switch Button for LED Grass Bag Volume 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...

  • Page 14: Operation

    To remove, just pull it out. Lastly, release the rear-discharge door. SAFETY KEY In order to prevent accidental start-up or unauthorized use of your cordless mower, a removable safety key has been incorporated into the design of your mower. The 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 15 To prevent serious injury, remove the safety key when the mower is unattended, or when adjusting, cleaning, LM1700E-SP mower is equipped with variable-speed self- servicing, transporting, lifting, or storing the mower. propel capability. This system is independent of the blade On-Off switch.

  • Page 16: Maintenance

    Always remove the safety key and battery pack when servicing or transporting the mower. The underside of mower deck should be cleaned after each use, as grass clippings, leaves, dirt and other debris will accumulate. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 17 If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...

  • Page 18: Troubleshooting

    10 seconds.) below 67°C. ◾ ◾ The side rail is retracted a little by the Unlock the clamps. Fully extend the pushing force applying on the handle. side rails and lock the clamps again. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...
  • Page 19 The motor shaft is bent. Contact the service center. ◾ ◾ The side rails are not fully extended. Fully extend the side rails, then lock The handle locking the clamps. clamps cannot be closed in position. 56 VOLT LITHIUM-ION CORDLESS MOWER — LM1700E/LM1700E-SP...

  • Page 20: Warranty

    New Zealand 0508 000 EGO (0508 000 346) any time you have questions or warranty claims. LIMITED SERVICE WARRANTY FOR TWO YEARS from the date of original retail purchase, this EGO product is warranted against defects in material or workmanship. Defective product will receive free repair.
