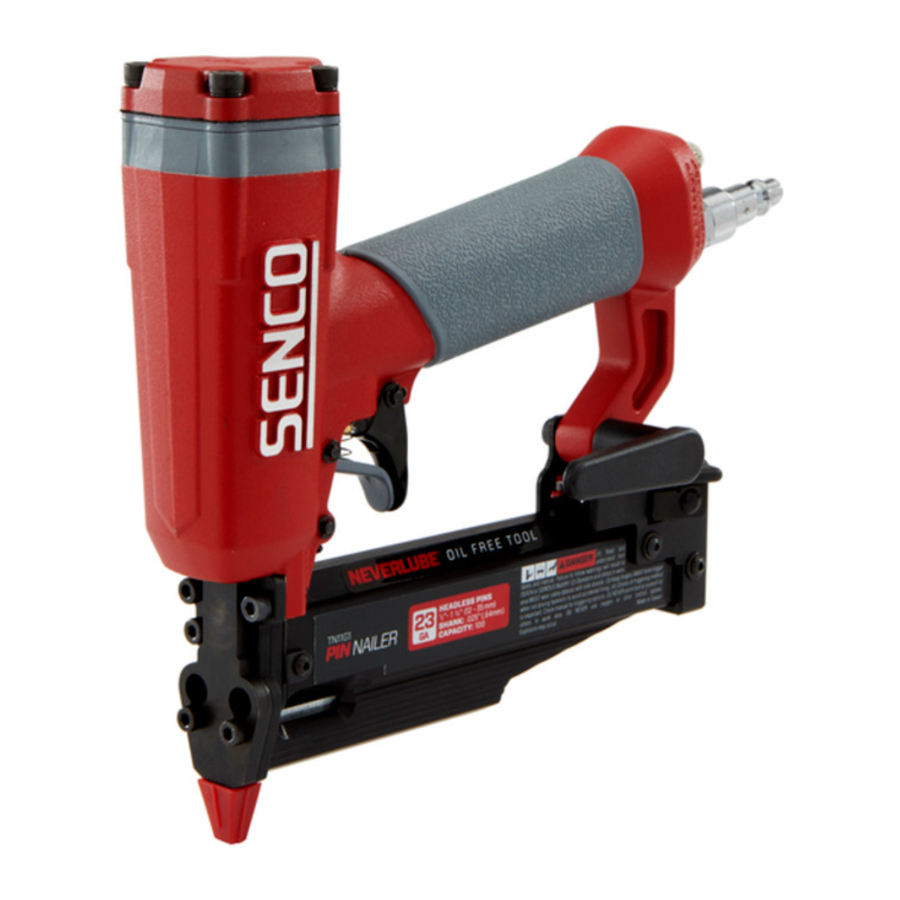

Senco TN11G1, TN11L1, TN21L1 - Micro Pinners Manual

EMPLOYER'S RESPONSIBILITIES

Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer. Keep this manual available for use by all people assigned to the use of this tool. For personal safety and proper operation of this tool, read and understand all of these instructions carefully.

SAFETY WARNINGS

	Read and understand all instructions. Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury. SAVE THESE INSTRUCTIONS
	Use safety equipment. Always wear ANSI Z87.1 safety glasses with permanently attached side shields. Dust mask, nonskid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Failure to do so could result in personal injury.
	PERSONAL SAFETY Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.
	EXPLOSION HAZARD Never use tool in an explosive atmosphere or in the presence of combustible materials such as flammable liquids, gases or dust.
	Never use oxygen, carbon dioxide or any other bottled gas as a power source for this tool; the tool will explode and cause serious injury.
	Always assume the tool contains fasteners. Keep the tool pointed away from yourself and others. No horseplay. Respect the tool as a working implement.
	Do not overreach. Keep proper footing and balance at all times. Proper footing and balance enable better control of the tool in unexpected situations.
	Keep bystanders, minors, and visitors away while operating a power tool. Distractions can cause you to lose control.
	SERVICE Tool service must be Authorized Service Center performed only by Authorized Senco repair personnel. Service or maintenance performed by unqualified personnel may result in a risk of injury.
	For information on the "SENCO Safety First Program," contact your SENCO representative.

TOOL USE

	To Load: Place strip of fasteners into magazine with points resting on fastener guide. Use only genuine SENCO fasteners.
	Push rail forward until it latches.
	To drive fasteners: This tool is equipped with a secondary trigger. Position tool against work surface. Using your middle finger, pull secondary trigger clear of primary trigger. Using your first finger, pull the primary trigger to actuate the tool. These tools are not required to have a workpiece contact. as these tools will drive a fastener when the trigger is pulled.
	NOTE: These tools are equipped with a lockout mechanism that activates to prevent dry-firing when approximately only five fasteners remain.
	To continue driving the last few fasteners, while pressing and holding down the lockout override button, pull the trigger.
	Should a fastener jam occur, disconnect air supply.
	Push latch and slide rail open. Remove fasteners.
	Remove jammed fastener.
	If you are still unable to remove jammed fastener, use the on-board wrench to undo the bottom two front screws and remove the front plate for better access to the jammed fastener. Before removing the front plate, make sure the magazine is OPEN. Removing the front plate with the magazine CLOSED could cause fasteners to be ejected under pressure.
	Push rail forward until it latches.
	Keep the tool pointed away from yourself and others and connect air to tool.

MAINTENANCE

	Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.
	All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
	With tool disconnected, make daily inspection to assure free movement of trigger. Do not use tool if trigger sticks or binds.
	Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary–DO NOT SOAK. Such solutions may damage O-rings and other tool parts.

TROUBLESHOOTING

Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596. Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.

Air leak near top of tool / Sluggish operation

Verify air supply / tighten screws.

Air leak near bottom of tool / Poor return

Clean tool / tighten screws.

Other problems

Contact SENCO.

TECHNICAL SPECIFICATIONS

ACCESSORIES

SENCO offers a full line of accessories for your SENCO tools, including:

• Air Comprerssors
• Hose
• Couplers
• Fittings
• Safety Glasses
• Pressure Gauges
• Lubricants
• Regulators
• Filters

For more information or a complete illustrated catalogue of Senco accessories, contact your sales representative or call Senco at 1-800-543-4596.

KYOCERA SENCO Industrial Tools
8450 Broadwell Road
Cincinnati, Ohio 45244
www.senco.com
Warnings for the safe use of this tool are included in this manual.
