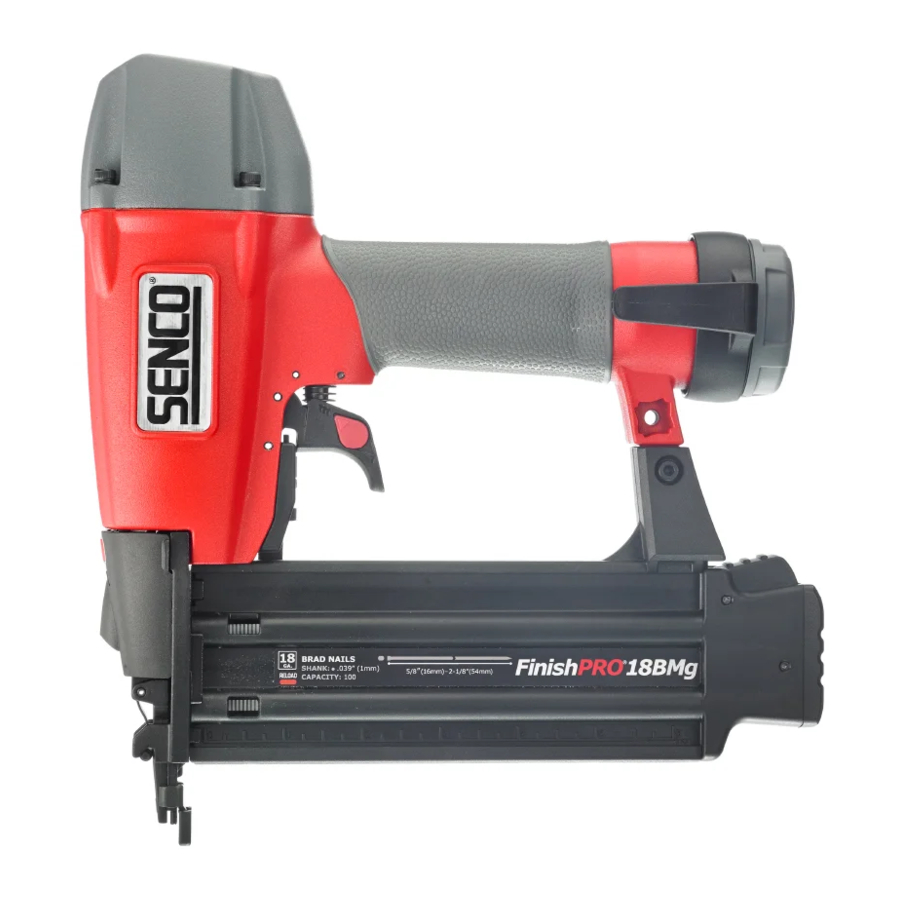

Senco FinishPro18BMg - Brad Nailer Manual

Table of Contents

Contents

1 EMPLOYER RESPONSIBILITIES
2 SAFETY WARNINGS
3 TOOL USE
4 MAINTENANCE
5 TROUBLESHOOTING
6 ACCESSORIES
7 TECHNICAL SPECIFICATION
8 FASTENER SPECIFICATION
9 Documents / Resources
- 9.1 References
- 9.2 Download manual

EMPLOYER RESPONSIBILITIES

warning Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer.

Keep this manual available for use by all people assigned to the use of this tool.

For personal safety and proper operation of this tool, read and understand all of these instructions carefully

SAFETY WARNINGS

Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY.

Save These Instructions
Use safety equipment. Always wear ANSI Z87.1 safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Failure to do so could result in personal injury.

Personal Safety

Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

Explosion Hazard

Never use tool in an explosive atmosphere or in the presence of combustible materials such as flammable liquids, gases or dust.
Never use oxygen, carbon dioxide or any other bottled gas as a power source for this tool; the tool will explode and cause serious injury.
Always remove finger from trigger when not driving fasteners. Never carry the tool with finger on or under trigger. Tool will eject a fastener if the safety element is bumped.
Always assume the tool contains fasteners. No horseplay. Respect the tool as a working implement.
Keep tool pointed away from yourself and others and connect air to tool.

Drive fasteners into work surface only; never into materials too hard to penetrate.
Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle; the fasteners can ricochet and hurt someone.
When using tool, care should be taken due to possibility of tool recoil after a fastener is driven. If safety element is unintentionally allowed to re-contact work surface following a recoil, an unwanted fastener will be driven. Therefore, allow tool to recoil completely off work surface after a fastener is driven to avoid this condition. Do not push safety element on work surface until a second fastener is desired.
Do not drive fasteners close to the edge of the work surface. The workpiece is likely to split and the fastener could fly free or ricochet and hit someone.
Use only parts, fasteners, and accessories recommended or sold by SENCO. Do not modify tool without authorization from SENCO.
Use only clean, dry, regulated compressed air at recommended pressure.

Do not connect tools to air pressure that potentially exceeds 200 psig or 13.7 bar.
Air compressors used to supply compressed air to this tool must comply with requirement ANSI/ ASME B 19.1–1995 (U.S.), "Safety Standard For Air Compressor Systems."
Air hose must have a minimum working pressure rating of 150 psig (10.3 bar) or 150% of the maximum pressure produced in the system, whichever is higher.
The tool and air supply hose must have a hose coupling such that all pressure is removed from the tool when the coupling joint is disconnected.
Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label.
Always place yourself in a firmly balanced position when using or handling the tool.
For information on the "SENCO Safety First Program," contact your SENCO representative.

TOOL USE

Read section titled "Safety Warnings," before using tool.

To load:

Place strip of fasteners into magazine with points resting on fastener guide. Use only genuine SENCO fasteners. Do not load with workpiece contact (safety element) or trigger depressed.
Push rail forward until it latches.
These tools have an adjustable trigger and can be set for Contact Actuation () or for Sequential Actuation ().
With a Contact-Actuation ("Dual-Action") trigger, nails can be driven two ways:
A The first way:

① Press the workpiece contact (safety element) against the work surface.
② Pull the trigger and the fastener is driven.
B The second way:

① Pull trigger.
② Depress workpiece contact element against work surface and drive a fastener. Each time you push the workpiece contact (safety element) against the work surface, a fastener is driven.
This mode of operation is preferred when you desire high production, rapid fastener placement.

With a Sequential Actuation (Restrictive) trigger, fasteners can only be driven one way:

① Press the workpiece contact (safety element) against the work surface.
② Pull the trigger.
This mode of operation is helpful when you require precise fastener placement.

Read the "Customer Satisfaction and Safety reminder" (CSSr) in the tool and fastener boxes for safety information regarding the Contact- Actuation and Sequential trigger modes. Under certain conditions, the Sequential trigger mode may reduce the possibility of injury to you or to others working with you.

The FinishPro18BMg comes equipped with an LED headlight. To turn the light on, push the red on/off button. To turn it off, push the button again.

To adjust the depth the fastener is driven:

Disconnect air supply.
Using your thumb or index finger, rotate wheel to adjust the Depth Control workpiece contact (safety element) to achieve desired depth.

To adjust the direction of the exhaust air:

Turn the exhaust deflector to the desired location.

Should a nail jam occur:

Disconnect air supply.
Push latch and slide rail open. Remove fasteners.
Release E-Z Clear latch and open door.
Remove jammed fastener.
Close door and latch.
Keep the tool pointed away from yourself and others and connect air to tool.

MAINTENANCE

Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at: 1-800-543-4596.
Read section titled "Safety Warnings" before maintaining tool.
All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
With tool disconnected, make daily inspection to assure free movement of safety element and trigger. Do not use tool if safety element or trigger sticks or binds.
Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary.
DO NOT SOAK.
Such solutions may damage O–rings and other tool parts.

TROUBLESHOOTING

SYMPTOM
Air leak near top of tool / Sluggish operation

SOLUTION

Verify air supply / tighten screws or install Parts Kit YK0868

SYMPTOM
Air leak near bottom of tool / Poor return.

SOLUTION

Clean tool / Tighten screws or install Parts Kit YK0868.

SYMPTOM
Other problems.

SOLUTION

Contact SENCO.

ACCESSORIES

SENCO offers a full line of accessories for your SENCO tools, including:

Air Compressors
Hose
Couplers
Fittings
Safety Glasses
Pressure Gauges
Lubricants
Regulators
Filters

For more information or a complete illustrated catalogue of SENCO accessories, ask your representative for #DLD118.

TECHNICAL SPECIFICATION

Minimum to maximum operating pressure	70–120 psi	4,8–8,3 bar
Air Consumption (60 cycles per minute)	1.6 scfm	45.3 liter/min.
Air Inlet	1⁄4 in. NPT	1⁄4 in. NPT
Maximum Speed (cycles per second)	2	2
Weight	2.8 lbs.	1.26 kg
Fastener Capacity	100	100
Tool size: Height	9.8 in.	248,9 mm
Tool size: Length	10 in.	254,8 mm
Tool size: Width: Main Body	2.5 in.	63,5 mm
