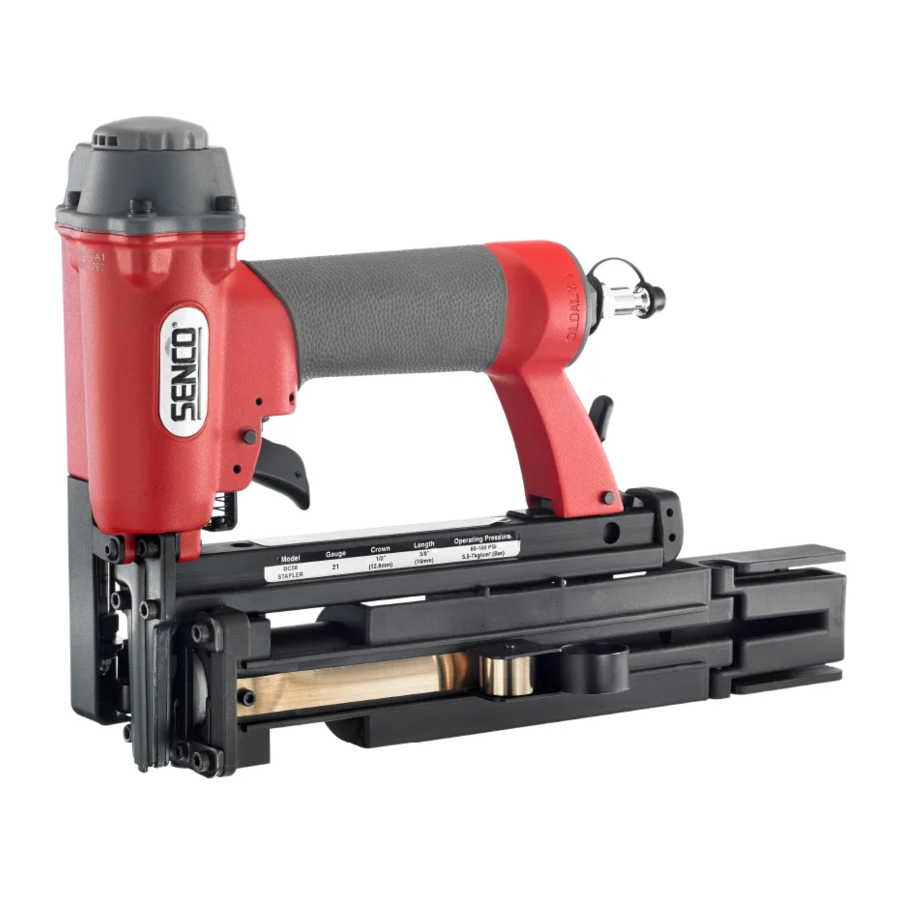

Senco BC58 - Button Cap Stapler Manual

EMPLOYER'S RESPONSIBILITIES

Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer. Keep this manual available for use by all people assigned to the use of this tool. For personal safety and proper operation of this tool, read and understand all of these instructions carefully.

Maintenance

Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.
All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
With tool disconnected, make daily inspection to assure free movement of trigger. Do not use tool if trigger sticks or binds.
Squirt SENCO pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts.
Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary–DO NOT SOAK.

Such solutions may damage O-rings and other tool parts.
Keep tool pointed away from yourself and others and connect air to tool.

Tool Use

To load staples: Depress latch and slide rail open.
Lay strip of staples into magazine. Use only genuine SENCO staples. Do not load with trigger depressed.
Push rail forward until it latches.
To load caps: Pull feeder shoe back completely, opening magazine door to left.
Insert caps with string extending out back side of magazine. Once caps are in, hold in place, and remove string by pulling. Close magazine door.

With a "Dual-Action" trigger, nails can be driven two ways:

Position safety element against work surface and pull trigger..."Trigger Fire."
To drive a nail, pull trigger and push safety element against work surface. Each time the safety element is pushed against the work surface a nail will be driven. This "bottom-fire" mode of operation is preferred when high production, rapid fastener placement is desired.

Fire tool once to advance/ load first cap.
Lift tool completely from work surface between shots to feed next cap.

TECHNICAL SPECIFICATIONS

BC58 4A0001N
Minimum to maximum operating pressure	80–100 psi	5.5–7 bar
Air Consumption (60 cycles per minute)	.77 scfm	21.8 liter
Air Inlet	1 ⁄4 in. NPT	1 ⁄ 4 in. NPT
Maximum Speed (cycles per minute)	7	7
Weight	4.1 lbs.	2 kg
Staple Capacity	110	110
Tool size: Height	8.5 in.	216 mm
Tool size: Length	12.5 in.	317 mm
Tool size: Width: Main Body	3.5 in.	89 mm
