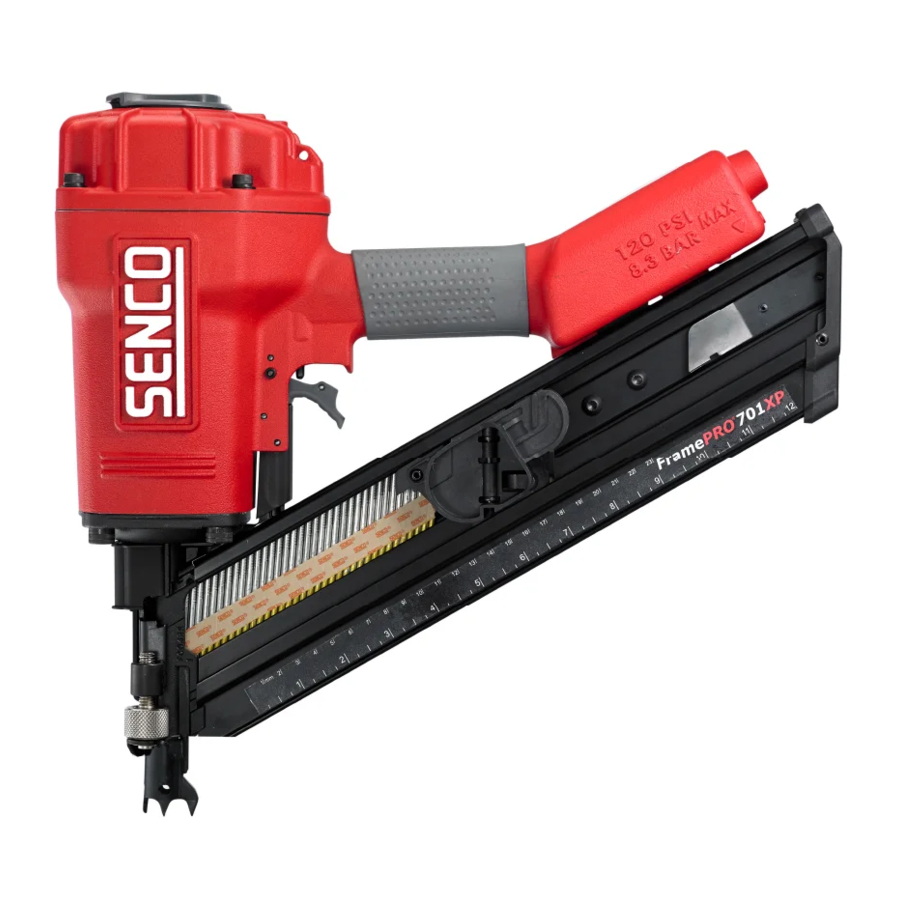

Senco FramePro701XP, FramePro751XP - Framing Nailers Manual

SAFETY WARNINGS

• Read and understand tool labels and manual. Failure to follow warnings could result in DEATH or SERIOUS INJURY.
  Save These Instructions
• Use safety equipment. Always wear ANSI Z87.1 safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. Failure to do so could result in personal injury.

• Personal Safety
  Stay alert, watch what you are doing, and use common sense when operating a power tool. Do not use tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in serious personal injury.

• Explosion Hazard
  Never use tool in an explosive atmosphere or in the presence of combustible materials such as flammable liquids, gases or dust.
• Never use oxygen, carbon dioxide or any other bottled gas as a power source for this tool; the tool will explode and cause serious injury.

• Always remove finger from trigger when not driving fasteners. Never carry the tool with finger on or under trigger. Tool will eject a fastener if the safety element is bumped.

• Always assume the tool contains fasteners. No horseplay. Respect the tool as a working implement.
• Keep tool pointed away from yourself and others and connect air to tool.
• Tools shall be operated at the lowest pressure needed for the application. This will reduce noise levels, part wear, and energy use.

• Drive fasteners into work surface only; never into materials too hard to penetrate.

• Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle; the fasteners can ricochet and hurt someone.

• When using tool, care should be taken due to possibility of tool recoil after a fastener is driven. If safety element is unintentionally allowed to re-contact work surface following a recoil, an unwanted fastener will be driven. Therefore, allow tool to recoil completely off work surface after a fastener is driven to avoid this condition. Do not push safety element on work surface until a second fastener is desired.

• Do not drive fasteners close to the edge of the work surface. The workpiece is likely to split and the fastener could fly free or ricochet and hit someone.

• Tool may eject a fastener when connected to air supply; therefore,
  1. remove all fasteners from tool
  2. before connecting air.

• Never use tool if safety element, trigger or springs have become inoperable, missing or damaged. Do not tamper with or remove safety element, trigger, or springs.

• Disconnect tool from air before doing tool maintenance, clearing a jammed fastener, leaving work area, moving tool to another location, or handing the tool to another person.

• Make sure all screws and caps are securely tightened at all times. Make daily inspections for free movement of trigger and safety element. Never use the tool if parts are missing or damaged.

• Use only parts, fasteners, and accessories recommended or sold by SENCO. Do not modify tool without authorization from SENCO.

• Use only clean, dry, regulated compressed air at recommended pressure.

• Do not connect tools to air pressure that potentially exceeds 200 psig or 13.7 bar.

• Air compressors used to supply compressed air to this tool must comply with requirement ANSI/ ASME B 19.1–1995 (U.S.), "Safety Standard For Air Compressor Systems."

• Air hose must have a minimum working pressure rating of 150 psig (10.3 bar) or 150% of the maximum pressure produced in the system, whichever is higher.

• The tool and air supply hose must have a hose coupling such that all pressure is removed from the tool when the coupling joint is disconnected.

• Do not load fasteners with trigger or safety element depressed.

• Never use a tool that leaks air or needs repair.

• Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label.

• Always place yourself in a firmly balanced position when using or handling the tool.

• For information on the "SENCO Safety First Program," contact your SENCO representative.

TOOL USE

• Read section titled "Safety Warnings," before using tool.

To Load

1. Connect air supply.
2. Insert strip of nails into rear of magazine.
   • Use only genuine SENCO fasteners (see Parts Chart).

• Do not load with workpiece contact (safety element) or trigger depressed.
• Pull feeder shoe back.


• With a Contact-Actuation ("Dual-Action") trigger, nails can be driven two ways:
  1. The first way:

     1. Press the workpiece contact (safety element) against the work surface.
     2. Pull the trigger and the fastener is driven.
  2. The second way:

     1. Pull trigger.
     2. Depress workpiece contact element against work surface and drive a fastener. Each time you push the workpiece contact (safety element) against the work surface, a fastener is driven. - This mode of operation is preferred when you desire high production, rapid fastener placement.
• With a Sequential Actuation (Restrictive) trigger, fasteners can only be driven one way:

  1. Press the workpiece contact (safety element) against the work surface.
  2. Pull the trigger.
• This mode of operation is helpful when you require precise fastener placement.

Read the "Customer Satisfaction and Safety Reminder" (CSSR) in the tool and fastener boxes for safety information regarding the Contact-Actuation and Sequential trigger modes. Under certain conditions, the Sequential trigger mode may reduce the possibility of injury to you or to others working with you.

To adjust the depth the fastener is driven

• First disconnect the air supply.
• Using your thumb or index finger, rotate wheel to adjust the Depth Control workpiece contact (safety element) to achieve desired depth.

Should a nail jam occur

• Disconnect air supply.

  1. Release the feeder shoe and slide it forward.
  2. Remove fasteners from the tool.

• Loosen locking knob at the rear of the tool by hand. Pull magazine back.

• Clear jammed fastener from guide body.

• Slide magazine back into position and tighten locking knob.
• Connect air supply and replace fasteners.
• Pull feeder shoe back.

• The tool can be converted for non-toenail (flat surface) applications by adding the no-mar pad.

• The deflector can be rotated to change the direction of the exhaust air. Disconnect air supply, loosen cap screw with a hex wrench, and then rotate deflector to desired direction. Tighten cap screw.

• This tool is equipped with a lockout feature that prevents the tool from being activated under these conditions:
  1. When approximately five nails remain in the magazine, the workpiece contact (safety element) will be locked in the undepressed position until more nails are loaded into the magazine.

     ( Safety Note: Due to various nail sizes, tool may lockout once but still drive a nail if the workpiece contact is depressed again.)
  2. When the magazine is pulled back, the workpiece contact will be locked in the undepressed position until the magazine is moved forward and locked into place.


MAINTENANCE

• Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at: 1-800-543-4596.
• Read section titled "Safety Warnings" before maintaining tool.
• All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.

• With tool disconnected, make daily inspection to assure free movement of safety element and trigger. Do not use tool if safety element or trigger sticks or binds.

• Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts.

• Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary.
• DO NOT SOAK.

•
  Such solutions may damage O–rings and other tool parts.

TROUBLESHOOTING

Parts Kits
Kit	Number
	YK0243
	YK0244

SYMPTOM & SOLUTION

	SYMPTOM	SOLUTION
1	Air leak near top of tool / Sluggish operation	Verify air supply / Tighten screws or install Parts Kit
2	Air leak near bottom of tool / Poor return.	Clean tool / Tighten screws or install Parts Kit .
3	Other problems.	Contact SENCO.

ACCESSORIES

SENCO offers a full line of accessories for your SENCO tools, including:

• Air Compressors
• Hose - Couplers
• Fittings
• Safety Glasses
• Pressure Gauges
• Lubricants
• Regulators
• Filters

For more information or a complete illustrated catalogue of SENCO accessories, ask your representative for #MK336.

OPTIONS

SEQUENTIAL TRIGGER — This feature is helpful when precise fastener placement is required.

TECHNICAL SPECIFICATIONS

FASTENER SPECIFICATIONS

• Rounded to nearest 5mm

1-800-543-4596
www.senco.com
