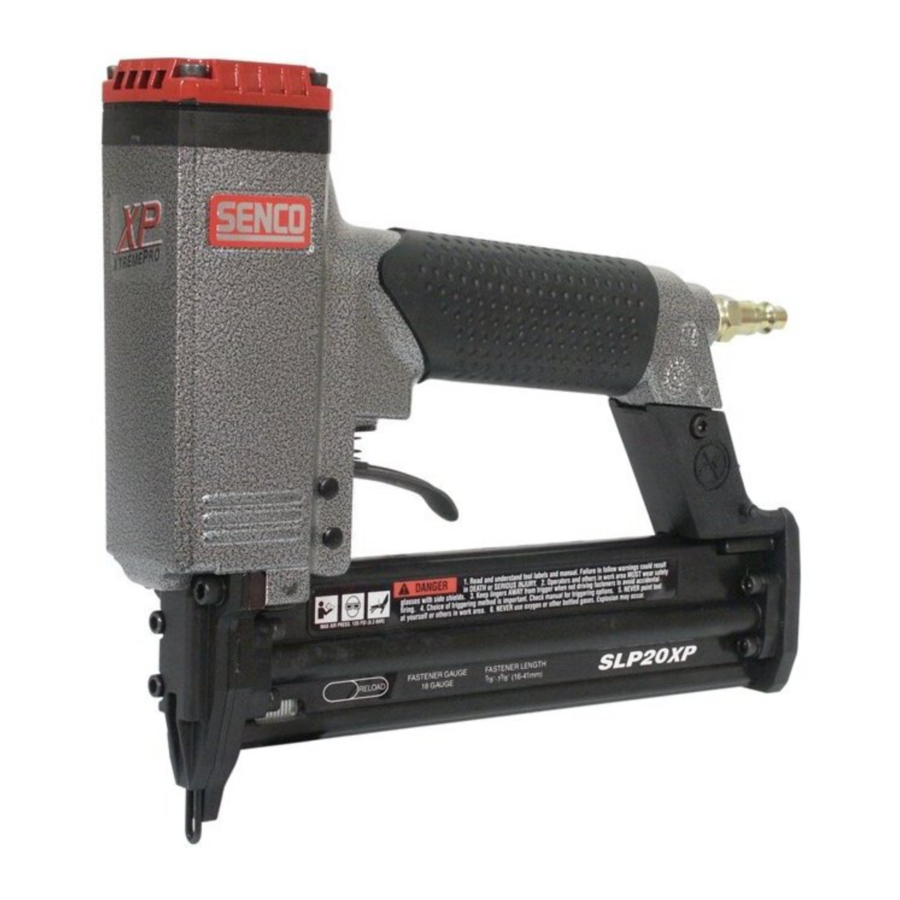

Senco SLP20XP - 18 Gauge Brad Nailer Manual

EMPLOYER'S RESPONSIBILITIES

Employer must enforce compliance with the safety warnings and all other instructions which accompany this tool as shipped from the manufacturer. Keep this manual available for use by all people assigned to the use of this tool. For personal safety and proper operation of this tool, read and understand all of these instructions carefully.

Tool Use

Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.

To Load: Place strip of fasteners into magazine with points resting on fastener guide. Use only genuine SENCO fasteners. Do not load with workpiece contact (safety element) or trigger depressed.
Push rail forward until it latches.
Position workpiece contact (safety element) against work surface and pull the trigger.
Should a fastener jam occur, disconnect air supply.
Push latch and slide rail open. Remove fasteners.
Remove jammed fastener.

Keep the tool pointed away from yourself and others and connect air to tool.

Maintenance

Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.
All screws should be kept tight. Loose screws result in unsafe operation and parts breakage.
With tool disconnected, make daily inspection to assure free movement of workpiece contact (safety element) and trigger. Do not use tool if workpiece contact or trigger sticks or binds.
Routine lubrication is not necessary. Do not oil.

Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary–DO NOT SOAK.

Such solutions may damage O-rings and other tool parts.

Accessories

SENCO offers a full line of accessories for your SENCO tools, including:

Air Compressors
Hose
Couplers
Fittings
Safety Glasses
Pressure Gauges
Lubricants
Regulators
Filters

For more information or a complete illustrated catalogue of SENCO accessories, ask your representative for #MK336.

Troubleshooting

Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596.

Read and understand "SAFETY INSTRUCTIONS" manual shipped with this tool before using tool.

Air leak near top of tool / Sluggish operation

Verify air supply / tighten screws or install Parts Kit YK0373.

Air leak near bottom of tool / Poor return

Clean tool / tighten screws or install Parts Kit YK0373.

Specifications

TECHNICAL SPECIFICATIONS

Minimum to maximum operating pressure	70–120 psi	4.8–8.3 bar
Air Consumption (60 cycles per second)	1.92 scfm	52.7 liter
Air Inlet	1/ 4 in. NPT	1 ⁄ 4 in. NPT
Maximum Speed (60 cycles per second)	5	5
Weight	2.3 lbs.	1 kg
Fastener Capacity	110	110
Tool size: Height	8 1 ⁄ 4 in.	210 mm
Tool size: Length	9 1 ⁄ 2 in.	241 mm
Tool size: Width: Main Body	2 in.	50 mm

Code	A		Code		A
	Inches	mm			Inches	mm
AY10	5 / 8	16	AX10	A200629	5 / 8	16
AY11	3 / 4	19	AX11	A200759	3 / 4	19
AY13	1	25	AX13	A201009	1	25
AY15	1 1 / 4	32	AX15	A201259	1 1 / 4	32
AY17	1 1 / 2	38	AX17	A201509	1 1 / 2	38
AY18	1 5 / 8	41	AX18	A201629	1 5 / 8	41
