Warnings for the safe use of this tool are included in this manual.
Los avisos para el uso seguro de esta herramienta están incluidos en este manual.
Les consignes pour l'utilisation en toute sécurité de cet outil se trouvent dans ce manuel.
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com

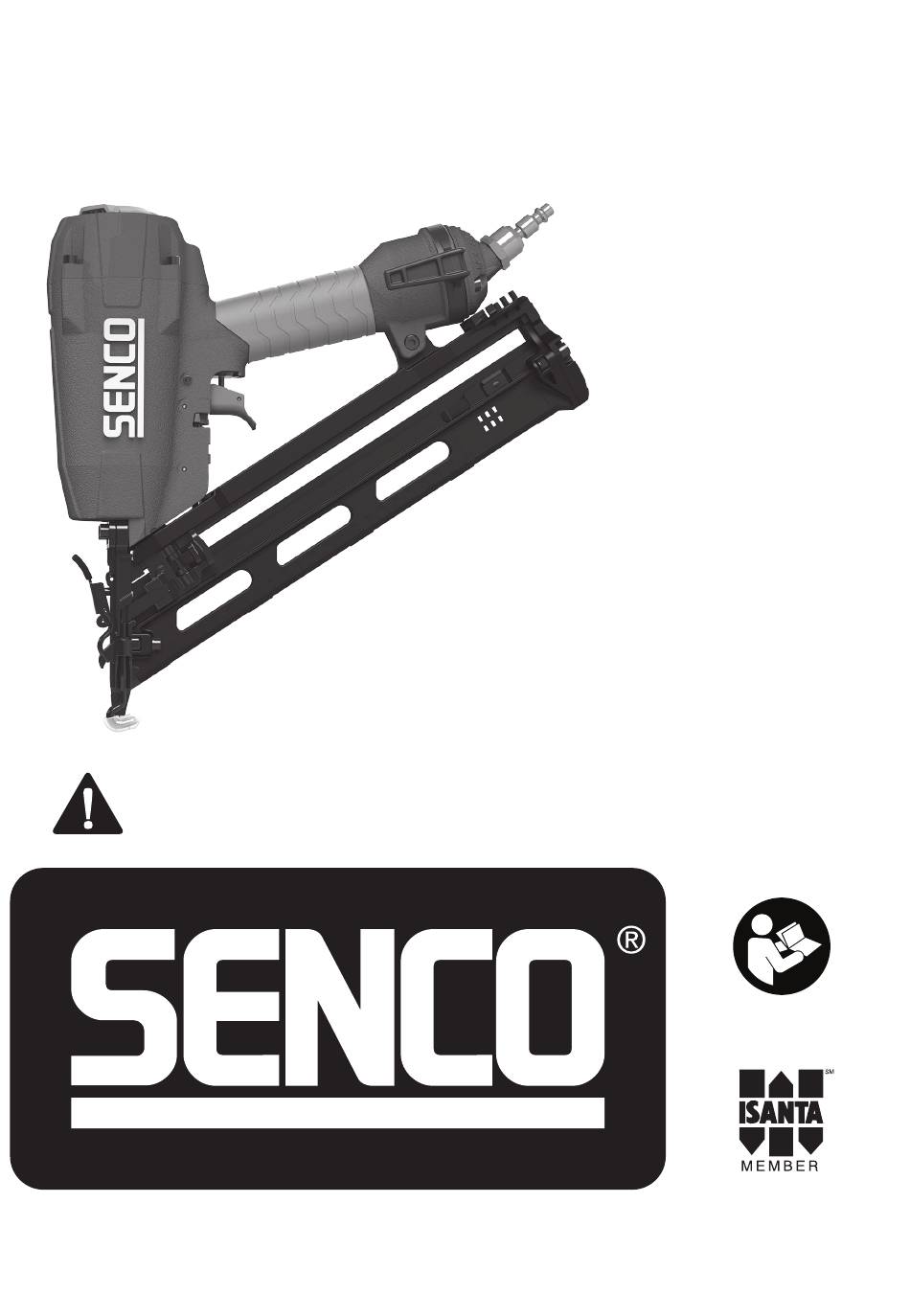

15 gauge FiNish Nailer
TN51P1P
Operating instructions
IMPORTANT:
Read before use.
NFD8TN5 • Issued July 13, 2023
© 2023 by KYOCERA-SENCO Industrial Tools, Inc.
Advertisement
Table of Contents
Related Manuals for Senco TN51P1P
Summary of Contents for Senco TN51P1P
- Page 1 Les consignes pour l’utilisation en toute sécurité de cet outil se trouvent dans ce manuel. IMPORTANT: Read before use. KYOCERA-SENCO Industrial Tools, Inc. NFD8TN5 • Issued July 13, 2023 8450 Broadwell Road Cincinnati, OH 45244 1-800-543-4596 www.senco.com © 2023 by KYOCERA-SENCO Industrial Tools, Inc.
-
Page 2: Table Of Contents
Table of Contents Employer’s Responsibilities ........................2 Safety Warnings ............................3 Maintenance ............................... 6 Functional Operation ..........................8 Tool Use ..............................9 Actuation System ............................9 Clearing Jam ............................10 Features ..............................10 Maintenance ............................. 11 Troubleshooting ............................12 Accessories .............................. 13 Technical Specifications ........................... -
Page 3: Safety Warnings
saFeTy WarNiNgs Read and understand tool labels and manual. Failure to follow WARNING warnings will result in DEATH or SERIOUS INJURY. Save These Instructions. Personal Protective equipment Use safety equipment. Always wear ANSI Z87+ safety glasses with permanently attached side shields. Dust mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions. - Page 4 It is recommended that operators that are less experienced using pneumatic fastener driving tools choose a sequential mechanism until they become familiar with the tool and its operation. Please call Senco Customer Service to obtain an alternate trigger type in those tools that can be user modified to fit the application and/or level of operator experience.
- Page 5 Operating Controls Do not use tool without danger label on tool. If label is missing, damaged or unreadable, contact your SENCO represen- tative to obtain a new label. Never use tool if safety element, trigger or springs have become inoperable, missing or damaged. Do not tamper with or remove safety element, trigger or springs.
-
Page 6: Maintenance
Do not use tool if safety element or trigger sticks or binds. Squirt Senco pneumatic oil (5 to 10 drops) into the air inlet twice daily (depending on frequency of tool use). Other oils may damage O-rings and other tool parts. - Page 7 saFeTy WarNiNgs The employer, tool owner and tool operator: • are responsible for ensuring that the tools are kept in safe working order. • are responsible for ensuring that only qualified personnel shall repair the tool. • are responsible for ensuring that manufacturers tool maintenance instructions are available to personnel performing maintenance.
-
Page 9: Tool Use
Push Tab on feeder shoe to release feeder from strip. Pull fastener strip out past sheet metal nail detainer. Do not load with workpiece contact (safety element) or trigger depressed. Use only genuine SENCO fasteners (see Fastener Specifications). actuation system: With a Contact-actuation (“Dual-action”) trigger, fasteners can be driven two ways:... -
Page 10: Clearing Jam
TOOl use Clearing Jams: Should a fastener jam occur, disconnect air supply. ① Remove fasteners from the tool. ② Open Quick Release latch. Clear jammed fastener from guide body. Close door and latch. Connect air supply and replace fasteners. Features The tool is equipped with a last fastener lockout and is designed to stop firing after the last fastener is driven. -
Page 11: Maintenance
Wipe tool clean daily and inspect for wear. Use non-flammable cleaning solutions only if necessary–DO NOT sOaK Caution: Such solutions may damage O-rings and other tool parts. No routine oiling necessary. repairs other than those described here should be performed only by trained, qualified personnel. Contact seNCO for information at 1-800-543-4596. -
Page 12: Troubleshooting
Nail set above work surface Low air pressure Increase air pressure (No greater than 120 psi) Application too rigorous Consider alternate type of wood Rate of drive too fast Reduce drive rate Incorrect depth of drive Adjust setting Other problems Contact SENCO... -
Page 13: Accessories
SENCO offers a full line of accessories for your SENCO tools, including: • Air Compressors • Hose • Couplers • Fittings • Safety Glasses • Pressure Gauges • Lubricants • Regulators • Filters • No Mar Pads Technical specifications... -
Page 14: Limited Warranty
KYOCERA-SENCO Industrial Tools, Inc. (“SENCO”) designs and constructs its products using the highest standards of material and workmanship. SENCO warrants to the original retail purchaser that the following products will be free from defects in material or workmanship for the warranty period... - Page 15 NOTES:...
- Page 16 KYOCERA-SENCO Industrial Tools, Inc. 8450 Broadwell Road Cincinnati, Ohio 45244 1-800-543-4596 www.senco.com...
