The following signal words and meanings are intended to explain the levels of risk associated with this product. | ||
SYMBOL | SIGNAL | MEANING |
| | Indicates a hazardous situation, which, if not avoided, will result in death or serious injury. |
| | Indicates a hazardous situation, which, if not avoided, could result in death or serious injury. |
| | Indicates a hazardous situation, which, if not avoided, may result in minor or moderate injury. |
NOTICE: | (Without Safety Alert Symbol) indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage). | |
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product in a better, safer manner. | ||
SYMBOL | NAME | DESIGNATION/EXPLANATION |
| Safety Alert | Indicates a potential personal injury hazard. |
![]() | Eye Protection | Always wear eye protection with side shields marked to comply with ANSI Z87.1. |
![]() | Do not rest your finger on the trigger when picking up the tool, moving between operating areas and positions or walking, as resting finger on trigger can lead to inadvertent operation. For tools with selective actuation, always check the tool before use to ascertain the correct mode is selected. This tool has either selective actuation for contact actuation or continuous contact actuation by actuation mode selectors or is a contact actuation or continuous actuation contact tool and has been marked with the symbol above. If using this tool in selective actuation mode, always ensure it is in the correct actuation setting. Be careful when changing from one driving location to another. | |
![]() | Do Not Oil | Routine lubrication is not necessary. |
![]() | Wet Conditions Alert | Do not expose to rain or use in damp locations. |
V | Volts | Voltage |
![]() | Direct Current | Type or characteristic of current |
Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
To prevent eye injuries, always wear OSHA required "Z87" safety glasses with permanently attached rigid, hard plastic side shields. These safety glasses must have "Z87" printed or stamped on them. Be sure everyone in your work area is wearing the same type of safety glasses.
The Fusion tool is charged with compressed air in a sealed chamber. Prior to any service or repair, release the charge of pressurized gas.
The pressurized air must be released prior to service. Major components such as the piston/driver assembly, gearbox, piston stop and guide body are all part of the drive assembly.
Deliberate tampering with the drive assembly may result in the release of the driver.
Any repair or upgrade requiring access to the pressure chamber may be handled by an authorized Senco dealer or service center.
Disconnect tool from battery when:
With battery disconnected, make daily inspection to assure free movement of workpiece contact element and trigger. Do not use tool if workpiece contact element or trigger sticks or binds.
Always remove finger from trigger when not driving fasteners. Never carry the tool with finger on or under trigger. Tool will eject a fastener if the workpiece contact element is bumped and the trigger is pulled.
Drive fasteners into work surface only; never into materials too hard to penetrate.
Do not drive fasteners on top of other fasteners or with the tool at too steep of an angle; the fasteners can ricochet and hurt someone.
When using tool, care should be taken due to possibility of tool recoil after a fastener is driven. If workpiece contact element is unintentionally allowed to re-contact work surface following a recoil, an unwanted fastener may be driven. Therefore, allow tool to recoil completely off work surface after a fastener is driven to avoid this condition. Do not push workpiece contact element on work surface until a second fastener is desired.
Please review triggering options.
Do not drive fasteners close to the edge of the work surface. The workpiece is likely to split and the fastener could fly or ricochet and hit someone.
Never use any part of the tool (i.e., the cap or mainbody ) as a hammer. The tool may activate or become damaged and result in an unsafe condition.
Keep hands and other body parts away from the area shown in the circle to avoid possible injury during operation.
Do not use tool without Danger Label on tool. If label is missing, damaged or unreadable, contact your SENCO representative to obtain a new label at no cost.
Operators and others in work area MUST wear safety glasses with side shields.
Keep fingers AWAY from trigger when not driving fasteners, to avoid accidental firing.
Choice of triggering method is important. See "Tool Operation" for triggering options.
Never point tool at yourself or others in work area.
Always point the tool away when connecting battery.
Do not alter or remove trigger or safety.
Tools shall not be modified without written approval of the manufacturer.
Use clamps or other practical ways to secure and support the workpiece to a stable platform. Holding the work by hand or against your body is unstable and may lead to loss of control.
ADDITIONAL SAFETY RULES FOR CHARGER & BATTERY CARTRIDGE
SAVE THESE INSTRUCTIONS
This manual contains important safety and operating instructions for SENCO battery charger VB0156 (US) and VB0189 (US)
Before using SENCO battery charger VB0156 (US) or VB0189 (US), read all instructions and cautionary markings on battery charger and battery.
Do not expose charger to water, rain, or snow.
Use indoors.
Battery | VB0155 | VB0212 |
Rated Capacity | 1.5Ahr | 2.0Ahr |
Chemistry | Li-Ion | Li-Ion |
Number of Cells | 5 | 5 |
Voltage | 18V | 18V |
Use of an attachment not recommended or sold by the battery charger manufacturer may result in a risk of fire, electric shock, or injury to persons.
To reduce risk of damage to electric plug and cord, pull by plug rather than cord when disconnecting charger.
Make sure cord is located so that it will not be stepped on, tripped over, or otherwise subjected to damage or stress.
RECOMMENDED MINIMUM AWG SIZE FOR EXTENSION CORDS FOR BATTERY CHARGERS
An extension cord should not be used unless absolutely necessary. Use of improper extension cord could result in a risk of fire and electric shock. If extension cord must be used, make sure:
Length of Cord (Feet) | |||
25 | 50 | 100 | 150 |
16 | 16 | 16 | 14 |
AWG Size of Cord) |
Do not operate charger with damaged cord or plug. If damaged, have replaced immediately by a qualified serviceman.
Do not operate charger if it has received a sharp blow, been dropped, or otherwise damaged in any way; take it to a SENCO Authorized Service Center.
Do not disassemble charger or battery cartridge; take it to a SENCO Authorized Service Center when service or repair is required. Incorrect reassembly may result in a risk of electric shock or fire.
To reduce risk of electric shock, unplug charger from outlet before attempting any maintenance or cleaning.
Do not charge battery cartridge when temperature is BELOW -20˚C (-4˚F) or ABOVE 40˚C (104˚F).
Do not attempt to use a step-up transformer, an engine generator or DC power receptacle.
Do not recharge non-rechargeable batteries.
Do not allow anything to cover or clog the charger vents.
Do not store the tool and battery cartridge in locations where the temperature may reach or exceed 60˚C (140˚ F).
Do not incinerate the battery cartridge even if it is severely damaged or is completely worn out. The battery cartridge can explode in a fire.
Never attempt to connect two (2) chargers together.
This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they do not play with the appliance.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
This product contains chemicals, including lead, known to the State of California to cause cancer, and birth defects or other reproductive harm.
Wash hands after handling
For more safety information, go to www.senco.com and safety training materials and programs visit the ISANTA website at www.isanta.org.
www.P65Warnings.ca.org.
F-15XP
F-16XP and F-18XP
![]() | LOADING THE TOOL, F-15XP:
Pull feeder shoe back. | |
BATTERY PACK INSTALLATION:
| ||
UNLOADING THE TOOL, F-15XP: Push Button on feeder shoe to release feeder from strip. Pull fastener strip out past sheet metal nail detainer. | ||
![]() | LOADING THE TOOL, F-16XP and F-18XP: Open magazine via rear latch. Place genuine fastener in magazine with nail tip against bottom of rail. Push magazine forward until "click" is heard. To unload, open magazine via rear latch. | |
Read section titled "Safety Warnings," before using tool. | ||
For best results, charge new battery before using. (see "To Charge Battery"). | ||
![]() Indicator LED ON | The tool should be switched off when not in use. Hold down either side of the selector switch for 1 second to turn the tool off. If left on, the tool will automatically turn off after 34 minutes. | |
All Fusion tools are equipped with selective-actuation triggering. This allows the user to choose between the following modes of operation: | ||
![]() Indicator LED ON-Flashing | Contact actuation Pressing the side of the selector switch toward the ![]() | |
![]() Indicator LED ON-Solid | Sequential Pressing the side of the selector switch toward the T symbol (as shown) for 0.5 sec. will turn the tool on in sequential mode. This is indicated by the solid green LED of the selector switch. | |
In the "contact-actuation" mode, nails can be driven in two ways: | ||
![]() | The first way:
| |
![]() | The second way:
| |
In the "sequential-actuation" mode, nails can only be driven one way: | ||
![]() |
| |
![]() | The Fusion nailer may detect a jam and reposition the driver. The warning indicator on the selector switch will flash red. | |
![]() | This tool is equipped with an indicator light at the ON/OFF/MODE switch. See above for detailed instructions. Note: When the tool is in the sequential mode, a fastener cannot be driven by pulling the trigger before activating the work piece contact element. If the workpiece contact is activated for more than 10 seconds, the workpiece contact must be released to start over. When the tool is in contact actuation mode, if the operator holds the trigger on for more than 3 seconds, the light will go out and the trigger must be released to start over. | |
![]() | ![]() | This tool is equipped with a multi-purpose light in the mode switch. The mode sensor light will indicate that the electronic controls are energized, which operating mode has been selected, if a jam was detected and when the battery requires a full recharge. |
Solid or Flashing Green Light Solid Red Light Flashing Red Light | ||
| ||
![]() | This tool is equipped with an electronic "Time-Out" feature. This tool will temporarily be disabled under any of the following conditions:
| |
![]() | The tool is equipped with a last fastener lockout. The tool will not fire the last 5 fasteners in the F-15XP angled tool. The F-16XP and F-18XP tools are designed to stop firing after the last fastener is driven. This feature prevents unnecessary wear on the tool and prevents the driver tip from marring the workpiece. When the tool locks out, load an additional strip and continue. It is not necessary to remove the remaining fasteners from the magazine. | |
![]() | This tool is equiped with a dual-purpose light on the nosepiece. The light will indicate that the electronic controls are energized while providing illumination of the workpiece in low light situations. The light will flash three times when the selector switch is switched to either sequential or contact actuation. This lets the user know that the tool is ready to fire a fastener. The light will remain on for ten seconds when the trigger is pulled or the work contact element is depressed. | |
![]() | This tool is equipped with depth-of-drive dial. Turning the dial to the right will countersink the fastener, turning the dial to the left will leave the fastener up or raised. Drive a fastener into a scrap piece of wood to test depth. Turning the dial in the direction shown in the image will result in the fastener driving deeper into the wood. | |
![]() | ![]() | This tool is equipped with an adjustable 6 position belt hook for right and left handed operators. The hook will safely support the tool when hanging from joists and rafters. Rotate the knurled knob to adjust opening or to switch from right to left side. Move black plastic cap to alternate side to complete assembly. |
![]() | Whenever possible, hold the tool at a right angle to the work surface. | |
![]() Indicator LED ON-Flashing | Always turn the tool off before storing. As an added protection feature, the tool will automatically turn off 34 minutes after the last activation. If a nail jam occurs, the red light at the mode selector switch will flash red. The tool will attempt to recover. If the jam is severe, the driver blade will lock in place by design and the red flashing light will not clear. Contact an authorized service center. | |
![]() | Should a minor fastener jam occur: Should a severe fastener jam occur: Remove fasteners from magazine. | |
![]() | Point nose of tool away from self and others.
Do not push on the driver with any force or use a hammer to strike the driver while it is visible. | |
![]() | Remove jammed fastener with a pliers or screwdriver. Do not tamper with the drive assembly. Re-attach the magazine or close the magazine. Insert battery and turn tool back on via mode selector switch. Tool will attempt to recover. If tool indicates a jam again via red light, return tool to authorized service center for evaluation | |
TO CHARGE BATTERY | ||
![]() | Red and green light flashing indicates defective battery pack. Return battery pack to your nearest senCo authorized service Center for inspection or replacement. Solid red indicates that the battery is charging. | |
![]() | When your battery pack becomes 80% charged, the red light will stay on and the green light will flash. When battery pack is fully charged, the red light will turn off and the green light will turn on. | |
![]() | After normal usage, 45 minutes of charge time is required to be fully charged. A maximum charge time of 1 hour is required to recharge a completely discharged battery pack. Maintenance charge is indicated when the red light turns off while the green light flashes. | |
![]() | The battery pack will become slightly warm to the touch while charging. This is normal and does not indicate a problem. | |
![]() | Battery is constructed with 4 LED lights built into a panel on the battery pack. These 4 LEDs reveal the state of charge and indicate possible problems inside the battery pack. State of Charge: |
MODE | CHARGER LABEL ICON | BATTERY PACK INSERTED? | RED LIGHT/GREEN LIGHT |
Standby | ---- | No | OFF / OFF |
Evaluate | Evaluating/HOT | Yes | FLASH/OFF |
Charging | ![]() | Yes | ON/OFF |
80% Charge | ![]() | Yes | ON/FLASH |
Fully Charged | ![]() | Yes | OFF/ON |
Maintenance | --- | Yes | OFF/FLASH |
Defective | ![]() | Yes | FLASH/FLASH |
Read section titled "Safety Warnings" before maintaining tool.
Repairs other than those described here should be performed only by trained, qualified personnel. Contact SENCO for information at 1-800-543-4596.
SENCO offers a full line of accessories for your SENCO tools, including:
For more information or a complete illustrated catalogue of SENCO accessories, ask your representative or www.senco.com.
Code | A | |
Inches | mm | |
DA15 | 1 1/4 | 32 |
DA17 | 1 1/2 | 38 |
DA19 | 1 3/4 | 44 |
DA21 | 2 | 50 |
DA23 | 2 1/4 | 57 |
DA25 | 2 1/2 | 64 |
Code | A | |
Inches | mm | |
M001000 | 3/4 | 19 |
M001001 | 1 | 25 |
M001002 | 1 1/4 | 32 |
M001003 | 1 1/2 | 38 |
M001004 | 1 3/4 | 44 |
M001005 | 2 | 50 |
M001007 | 2 1/2 | 65 |
Code | A | |
Inches | mm | |
AX10 | 5/8 | 16 |
AX11 | 3/4 | 19 |
AX13 | 1 | 25 |
AX15 | 1 1/4 | 32 |
AX16 | 1 3/8 | 35 |
AX17 | 1 1/2 | 38 |
AX18 | 1 5/8 | 41 |
AX19 | 1 3/4 | 45 |
AX21 | 2 | 50 |
AX22 | 2 1/8 | 55 |
F-15XP | F-16XP | F-18XP | |
TECHNICAL SPECIFICATIONS | |||
Voltage | 18 volts Li-ion | 18 volts Li-ion | 18 volts Li-ion |
Weight with Battery | 6.8 lbs. (3.1 kg) | 6.7 lbs. (3.1 kg) | 6.6 lbs. (3.0 kg) |
Height | 12.5" (31.8 cm) | 12.4" (31.5 cm) | 12.5" (31.6 cm) |
Length | 12.6" (32.0 cm) | 11.6" (29.4 cm) | 10.2" (25.6 cm) |
Width | 3" (76 mm) | 3" (76 mm) | 3" (76 mm) |
Recharge Time | 45 minutes | 45 minutes | 45 minutes |
Fastener Capacity | 110 15 Ga. Nails | 110 15 Ga. Nails | 110 18 Ga. Nails |
Fastener Range | .75" - 2.50" Length | 1.25" - 2.50" Length | .62" - 2.12" Length |
Collation Angle | 34° | 0° | 0° |
Problem/Symptom | Probable Cause | Corrective Action |
Pressing mode switch does not result in green light | Check battery. | Remove and reattach. |
PCB is not energized. | Check that trigger and contact are free to move. | |
Then choose mode selector. | ||
Electronic components damaged. | Return to an authorized service center. | |
Red light on | Low battery. | Recharge or replace battery. |
Check battery connection at tool. | ||
Red light flashes | Fastener jam. | Remove battery and re-start. |
Tool will attempt to recover. | ||
Remove battery again. | ||
Check if nail is blocking next fastener. | ||
Inspect magazine for bent nail. | ||
Remove magazine and inspect guide body. | ||
Tool does not function. | Return to service center for repair. | |
Note: if tool has jammed and the mechanism initiates an automatic recovery, the tool may make a series of clicks as it repositions the driver. This is normal. | ||
Tool will not start or runs slowly | Battery is discharged or has dead cell. | Replace or recharge battery. |
Workpiece contact element is jammed. | Remove battery, then inspect tool to assure free movement of workpiece contact element. | |
Drive piston has failed. | Return tool to authorized SENCO service representative. | |
Workpiece contact element or trigger switches are damaged. | Return tool to authorized SENCO service representative. | |
Tool does not drive fastener to desired depth | Improper depth-of drive setting. | Refer to operators manual for proper adjustment. |
Tool not pressed firmly against the workpiece. | Hold tool firmly in place when driving fastener. | |
Drive application is too rigorous. | Refer to operators manual for appropriate applications. | |
Pressure loss. | Return tool to authorized SENCO service representative. | |
Tool runs but will not drive fastener | Battery is discharged or has a dead cell. | Recharge or replace with fresh battery. |
Nail jam in guidebody. | Refer to operators manual for jam-clearing instructions. | |
Mechanism requires repair. | Return tool to authorized SENCO service representative. | |
Tool is overheated. | Allow tool to cool and insert fresh battery. | |
Driver tip not located above fastener. | Recharge battery and allow tool to automatically retract driver. | |
Poor feed/tool jamming | Debris build-up in mechanism. | Clean tool, clean magazine or inspect feeder spring. |
Driver tip not located above fastener. | ||
Broken or worn driver | Return tool to authorized SENCO service representative. | |
Tool does not fully return | Weak battery. | Recharge battery and allow tool to automatically retract driver. |
Welcome to SENCO's family of products. SENCO brings 50 years of commitment to our customers and to power fastening systems. We are dedicated to making sure your tools are performing at their best, and we understand that ensuring the long life of your tools is important. Here are some operational and service tips.
If your Cordless Nailer does require service, dedicated SENCO servicing dealers are available for you. For the location nearest you, call SENCO's Action line at 1-800-543-4596 or visit SENCO's website (www.senco.com).
Recommended service includes
SENCO Pneumatic, DuraSpin, Cordless Tools & Compressors
Warranty registration is also required and can be accomplished through on-line Product Registration at www.senco.com or by completing and returning the postage paid warranty registration form included with your Operator's manual/parts chart information, found inside the product carton. To make a warranty claim, you must return the product, with proper receipt/proof of purchase and return transportation charges prepaid, to a SENCO Authorized Warranty Service Centre. A list of SENCO Authorized Warranty Service Centres can be found at www.senco.com or by calling 1-800-543-4596 toll free.
KYOCERA-SENCO Industrial Tools, Inc.
CINCINNATI, OHIO 45244-1611 USA
www.senco.com
KYOCERA-SENCO Industrial Tools, Inc.
8450 Broadwell Road
Cincinnati, OH 45244
1-800-543-4596
www.senco.com
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

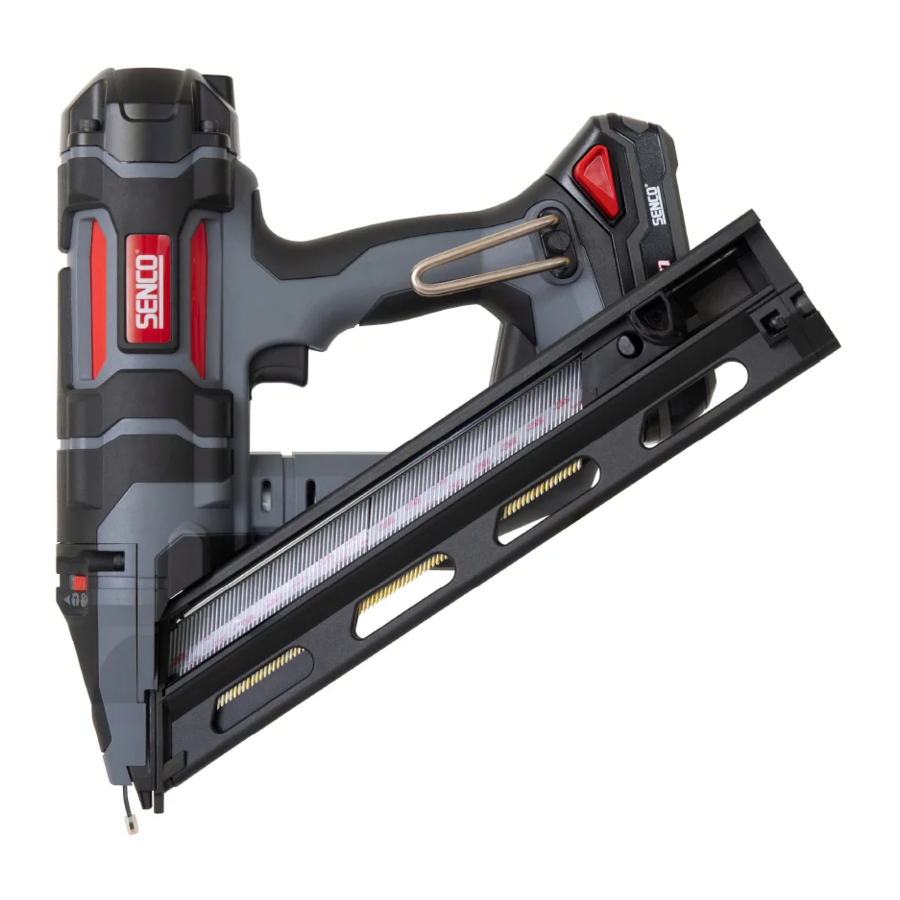

Download Senco FUSION F-15XP / F-16XP / F-18XP - Finish Nailers Manual
Advertisement
Need help?
Do you have a question about the FUSION F-15XP and is the answer not in the manual?
Questions and answers
