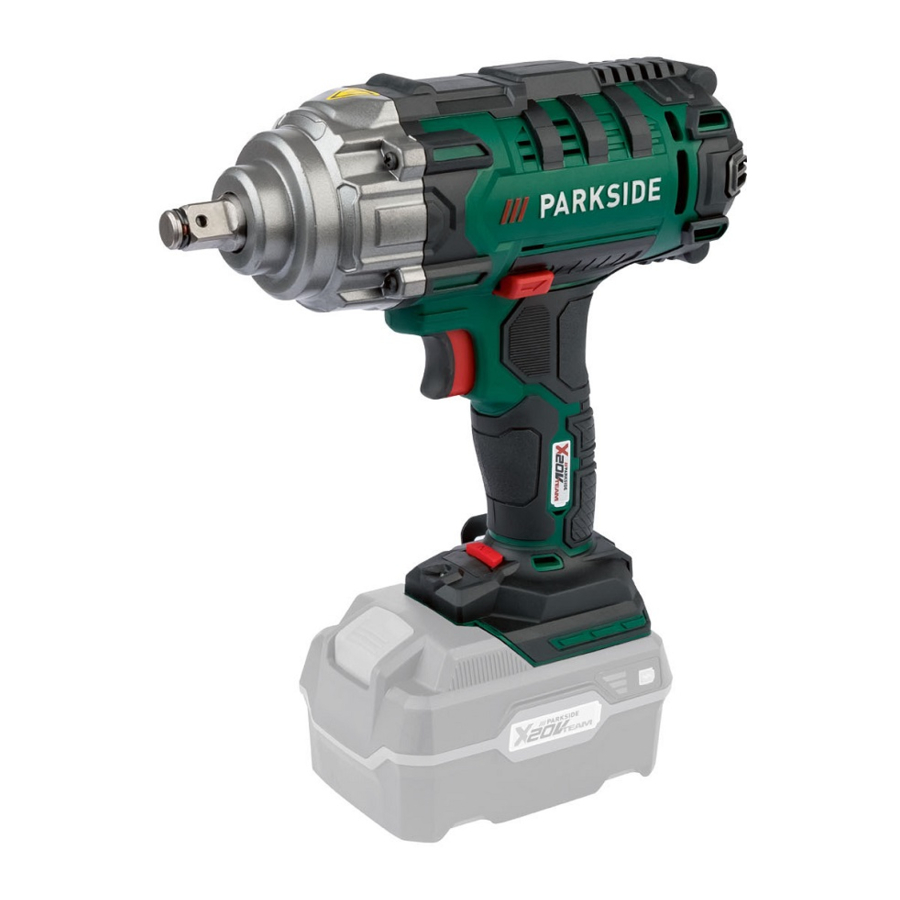

Parkside PASSK 20-Li C3, 436020 2304 - Impact Wrench Manual

Introduction

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

All Parkside tools and the chargers PLG 20 A1/A4/C1/A2/C2/A3/C3/PDSLG 20 A1 of the X20V Team series are compatible with the PAP 20 A1/A2/A3/B1/B3/PAPS 204 A1/PAPS 208 A1 battery pack.

Intended use

This appliance is intended for screwing in and unscrewing screws as well as for tightening and loosening nuts. The appliance has a clockwise/ anticlockwise rotation, a 1/2" external square drive bit holder and an LED working light. The light on this appliance is intended to illuminate the immediate working area of the appliance. The rotary impact function of the appliance enables the power of the motor to be converted into uniform rotary impacts. The impact mechanism comes into effect during tightening and loosening. The appliance is designed for use by adults. Young people under 16 years of age may only use the appliance under supervision. The manufacturer accepts no liability for damages caused by improper use or incorrect operation of the appliance.

Use this product only as described and for the areas of applications specified. The appliance is not intended for commercial use. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Features

1. Tool holder
2. Rotation direction switch/lock
3. Belt clip
4. Battery charge level button
5. Battery display LED
6. Battery pack*
7. Release button for the battery pack
8. LED work light
9. Torque preselection button
10. ON/OFF switch/speed control
11. Sockets (17/19/21/23 mm)
12. High-speed charger*
13. Red charge control LED
14. Green charge control LED

Package contents

1 cordless vehicle impact wrench 20V
4 sockets (17/19/21/23 mm)
1 belt clip
1 carrying case
1 set of operating instructions

Technical data

Cordless vehicle impact wrench 20V PASSK 20-Li C3

Rated voltage	20 V (DC)
Idle speed	0–2300 rpm
Rated stroke rate	0–3000 rpm
Max. torque	400 Nm
Torque selectable at 5 levels	100/150/200/ 300/400 Nm
Tool holder	1/2"

Rechargeable battery PAP 20 B3*

Type	LITHIUM ION
Rated voltage	20 V (DC)
Capacity	4 Ah/80Wh
Cells	10

NOTE
Note that the full performance of the unit can only be achieved if the PAP 20 A3/ PAP 20 B3 battery is used.

High-speed battery charger PLG 20 C3*

INPUT
Rated voltage	230–240 V ∼, 50 Hz (AC)
Rated power consumption	120 W
Fuse (internal)	3.15 A
OUTPUT
Rated voltage	21.5 V (DC)
Rated current	4.5 A
Charging time	approx. 60 min
Protection class	II / (double insulation)

* BATTERY AND CHARGER ARE NOT INCLUDED

Noise emission value
Noise measurement value determined in accordance with EN 62841. The A-rated noise level of the power tool is typically:

Vibration emission value
Total vibration values (vector total of three directions) determined in accordance with EN 62841:

Wear hearing protection!

NOTE

• The vibration emission values and the noise emission values given in these instructions have been measured in accordance with a standardised test procedure and can be used for comparison of the power tool with another tool.
• The specified total vibration values and the noise emission values can also be used to make a provisional load estimate.

• Depending on the manner in which the power tool is being used, and in particular the kind of workpiece that is being worked, the vibration and noise emission values can deviate from the values given in these instructions during actual use of the power tool.
• Try to keep the load as low as possible. Measures to reduce the vibration load are, e.g. wearing gloves and limiting the working time. Wherein all states of operation must be included (e.g. times when the power tool is switched off and times where the power tool is switched on but running without load).

General power tool safety warnings

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.
The term „power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety
   1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   2. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
   3. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2. Electrical safety
   1. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
   2. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
   3. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
   4. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
   5. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
   6. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
   1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
   2. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
   3. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
   4. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
   5. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
   6. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   7. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
   8. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4. Power tool use and care
   1. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
   2. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
   3. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
   4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
   5. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
   6. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
   7. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
   8. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5. Battery tool use and care
   1. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
   2. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
   3. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
   4. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
   5. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
   6. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C (265°F) may cause explosion.
   7. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

      RISK OF EXPLOSION! Never charge non-rechargeable batteries!

      Protect the rechargeable battery from heat, for example from continuous exposure to sunlight, fire, water and moisture. There is a risk of explosion.
6. Service
   1. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
   2. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety instructions specifically for impact screwdrivers

• Wear hearing protection when impact screwing. Exposure to loud noise can lead to hearing loss.
• Secure the workpiece! A workpiece securely held by a clamping device or vice is much safer than one held in your hand.
• Hold the power tool firmly. High torques can occur for brief periods while tightening and loosening screws.
• Wait until the power tool has come to a standstill before putting it down. The tool can jam, this leading to loss of control of the power tool.
• Hold the power tool by the insulated gripping surfaces, when performing an operation where the screw could come into contact with hidden wiring. Contact between the screw or attached tool and a live wire may cause exposed metal parts of the power tool to become live and give the operator an electric shock.

Safety guidelines for battery chargers

• This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks must not be carried out by children unless they are supervised.

The charger is suitable for indoor use only.

ATTENTION
This charger can only charge the following b atteries: PAP 20 A1/PAP 20 A2/ PAP 20 A3/PAP 20 B1/PAP 20 B3/ PAPS 204 A1/PAPS 208 A1.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

Original accessories/auxiliary equipment

Use only accessories and auxiliary equipment specified in the operating instructions and which are compatible with the appliance.

Do not use any accessories which are not recommended by PARKSIDE. This can lead to an electric shock and fire.

ATTENTION
Hot surface.
There is a risk of burns.

Before use

Installation on a wall

• Before wall mounting, make sure that there is no damage to any cables in the vicinity of the drill holes required for the mounting.
• Route the mains cable so that it does not obstruct you and no one can pull on it accidentally.
• Do not allow children to play with the appliance, even when it is mounted on the wall.
• Never operate the charger on a combustible surface.
• Never place the charger on a damp surface.
• Mounting the charger behind doors or within their swinging range is not recommended, as there is a risk of it being torn off or otherwise damaged.

The charger has two holes on the back for wall installation. You can hang it on a wall, taking the safety instructions into account. To do this, use two screws (not supplied) with the specified dimensions and spacing (see fig. B):

Fig. B

Charging the battery pack

(see fig. A)

Fig. A

Always pull out the power plug before you remove the battery pack from or connect the battery pack to the charger.

NOTE
Never charge the battery pack if the ambient temperature is below 10°C or above 40°C.
If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The storage climate should be cool and dry and the ambient temperature should be between 0°C and 50°C.

• Connect the battery pack to the high-speed battery charger (see Fig. A).
• Insert the power plug into the socket. The green charge control LED lights up briefly, then the red charge control LED lights up.
• The green LED indicates that the charging process is complete and the battery pack is ready for use.

• If the red control LED flashes, this means that the battery pack has overheated and cannot be charged.
• If the red and green control LEDs both flash, this means that the battery pack is defective.

• Push the battery pack back into the appliance.
• Switch off the charger for at least 15 minutes between successive charging sessions. Also disconnect the power plug from the mains power socket.

Attaching/disconnecting the battery pack to/from the appliance

Attaching the battery pack

• Push the rotation direction switch into the middle position (lock). Push the battery pack into the handle until it clicks into place.

Removing the battery pack

• Press the release button and remove the battery pack .

Checking the battery charge level

• Press the battery charge level button to check the status of the battery (see also main diagram).
  The status/remaining charge will be shown on the battery display LED as follows:
  RED/ORANGE/GREEN = maximum charge
  RED/ORANGE = medium charge
  RED = low charge – charge the battery

Use

Switching on and off

Switching on

• To start the appliance, press the ON/OFF switch and keep it pressed in.
  The LED working light lights up when the ON/OFF switch is depressed lightly or fully.
  This provides illumination of the work area in poor lighting conditions.

Switching off

• Release the ON/OFF switch to switch off the appliance.

Setting/preselecting the rotation speed/tightening torque

• Press the torque preselection button to select the required torque in stages.
• Press the ON/OFF switch lightly for a low speed/tightening torque. Increasing the pressure increases the speed/tightening torque.
• The tightening torque depends on the selected speed/torque preselection and impact duration.

NOTE

• However, to tighten lug nuts, the smallest torque setting must be selected to avoid over tightening.
• The integrated motor brake ensures rapid stoppage.

The tightening torque actually attained must always be checked with a torque wrench!

Changing the direction of rotation

• Change the direction of rotation by pressing the rotation direction switch towards the left or right.

Fitting the socket

• Push one of the supplied sockets onto the tool holder .

Maintenance and cleaning

RISK OF INJURY! Always switch off the appliance and remove the battery before carrying out any work on the appliance.

The appliance is maintenance-free.

• The appliance must always be kept clean, dry and free from oil or grease.
• Never allow liquids to get into the appliance.
• Use a soft, dry cloth to clean the housing. Never use petrol, solvents or cleansers which can damage plastic.
• If a lithium-ion battery is to be stored for an extended period, the charge level should be checked regularly. The optimum charge level is between 50% and 80%. The optimum storage environment is cool and dry.

NOTE
Replacement parts not listed (such as carbon brushes, switch) can be ordered via our service hotline.

Service

Service Great Britain Tel.: 0800 404 7657
E-Mail: kompernass@lidl.co.uk

Ordering a replacement battery and charger

You can easily order a replacement battery or charger on the Internet at www.kompernass.com.

• Scan the QR code with your smartphone/tablet.
  You can use this QR code to go directly to our website to view and order the available replacement parts.

NOTE

• If you have problems with your online order, you can contact our service centre by phone or email.
• Always quote the article number (IAN) 436020_2304 in your order.
• Please note that online ordering of replacement parts is not possible for all countries.
