23
25
24

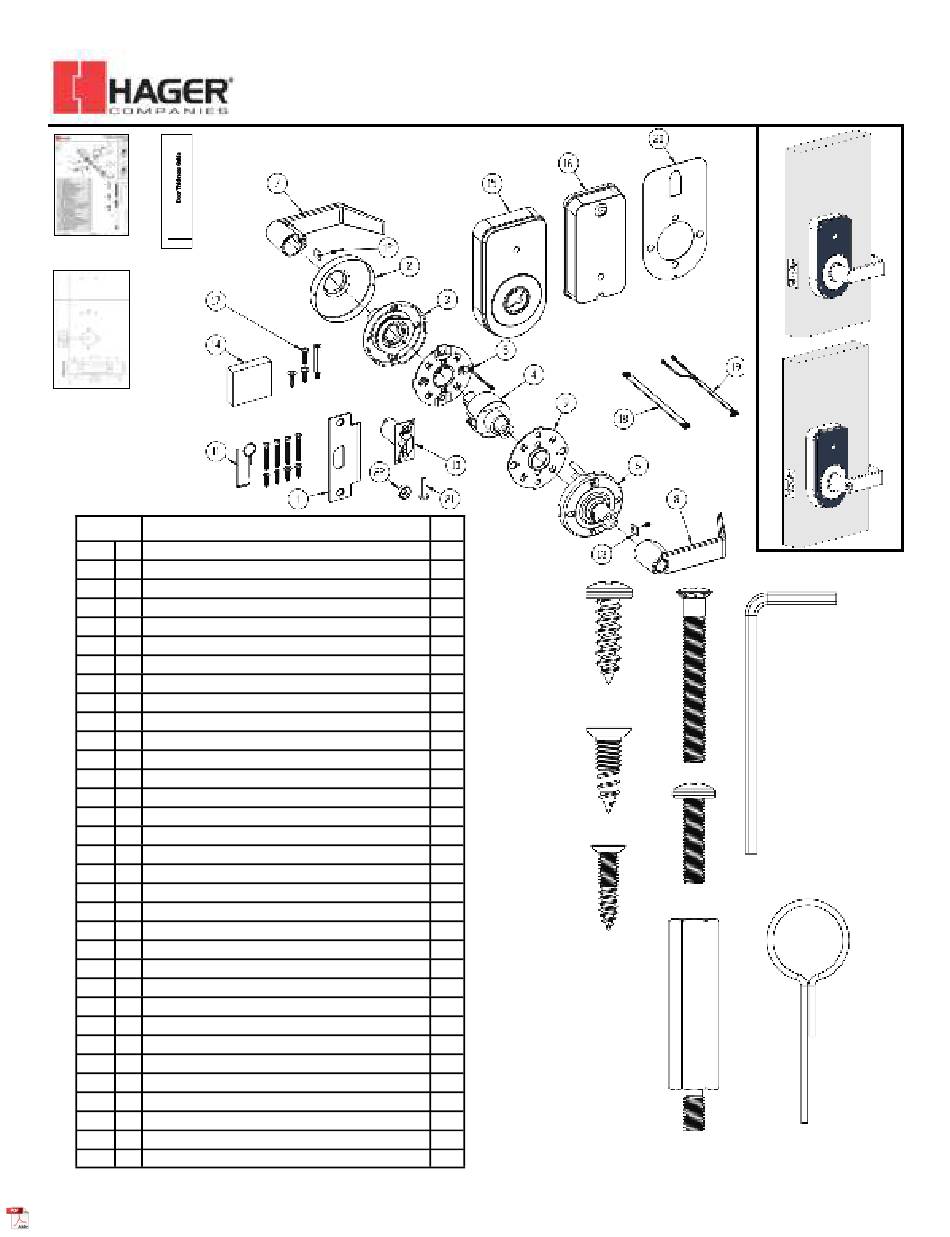

Part
Description
1
ASA Strike
2
Rose, Cylindrical
3
Spring Cage Assembly, Interior
4
Lock Chassis Assembly
5
Interior Mounting Plate with RX Switch
6
Spring Cage Assembly, Exterior
7
Withnell Lever, Interior
8
Withnell Lever, Exterior, NKO
9
Mounting Bracket, Exterior
10
Dead Latch
11
Screw Pack, EQ34
AA
Allen Wrench, 3/32"
BB
Lever Removal Tool
CC
Screw, #10-32 x 1.4" Oval Head Machine
DD
Screw, #12-24 X 3/4" Flat Head Combo
EE
Screw, #8-32 x 3/4" Flat Head Combo
12
Set Screw, #10-32 x 1/4", 3/32" Drive
13
Retaining Plate, Lever
14
AA Alkaline Batteries
15
Escutcheon Assembly, Cylindrical
16
Power Pack Assembly
17
Screw Pack, Power Pack
FF
Screw, #12 x ¾" Pan Head
GG
Screw, #10-32 x ¾" Pan Head Machine
HH
Hex Standoff, #10-32 x 1.5" Male-Female
18
Wiring Harness, Control Board to Reader
19
Wiring Harness, Control Board to Lock
20
Main Gasket, Cylindrical
21
Tailpiece (Key Override Only)
22
Cup (Key Override Only)
23
Installation Instructions
24
Template
25
Door Thickness Guide
Rev 1, Rev Date: 01/12/2023
Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com
EQ34 GRADE 1 CYLINDRICAL LOCK
QTY
1
1
1
1
FF
1
1
1
1
1
1
1
DD
1
1
4
2
2
2
EE
2
4
1
1
1
2
1
1
1
1
1
1
1
1
[27390107]
INSTALLATION INSTRUCTIONS
CC
AA
GG
BB
HH
I-LS02688
Page 1 of 7
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for hager I-LS02688
Summary of Contents for hager I-LS02688
- Page 1 Wiring Harness, Control Board to Lock Main Gasket, Cylindrical Tailpiece (Key Override Only) Cup (Key Override Only) Installation Instructions Template Door Thickness Guide Page 1 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
-
Page 2: Safety Information
Mark jamb for strike and chisel out to a depth of 3/32” [2.4 mm] or until flush. Drill 2 pilot holes for #12 strike screws. Install #1 Strike with two #12 screws, DD. 2X PILOT HOLES Ø 3/16” Drill x2 Chisel out Page 2 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com... - Page 3 3” [76 mm] from the end of the longest 2 pin plug. Retaining 3” [76 mm] Plate Align line with plate Page 3 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
-
Page 4: Door Handing
Route the wire harness along the side of the escutcheon and over to the center of the lock as shown. • Plug the 6-pin wire harness #18 into the reader board and re-install the back plate. Page 4 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com... - Page 5 Turn the set screw CW until it is tightened down against the spindle using Allen wrench AA provided. Page 5 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
-
Page 6: Install Lock On Door
Install lever #7 using removal tool BB to start the lever. Snap into place and then tighten lever set screw with AA Allen wrench. Page 6 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com... - Page 7 CONNECT READER AND LOCK • Plug in the Reader (6-pin) and Lock (8-pin) wire harnesses as shown below. Page 7 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
-
Page 8: Setup Lock
QR CODE QR CODE EXTENDER READER OTHER PICTURE PICTURE PICTURE INFO INFO INFO QR CODE QR CODE QR CODE Page 8 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com... - Page 9 Pour se conformer aux exigences d'exposition RF, une distance de séparation minimale de 20 cm doit être maintenue entre le corps de l'utilisateur et l'appareil. Page 9 of 7 Rev 1, Rev Date: 01/12/2023 [27390107] Hager Companies 139 Victor Street, St. Louis, MO 63104 (800) 325-9995 www.hagerco.com...
