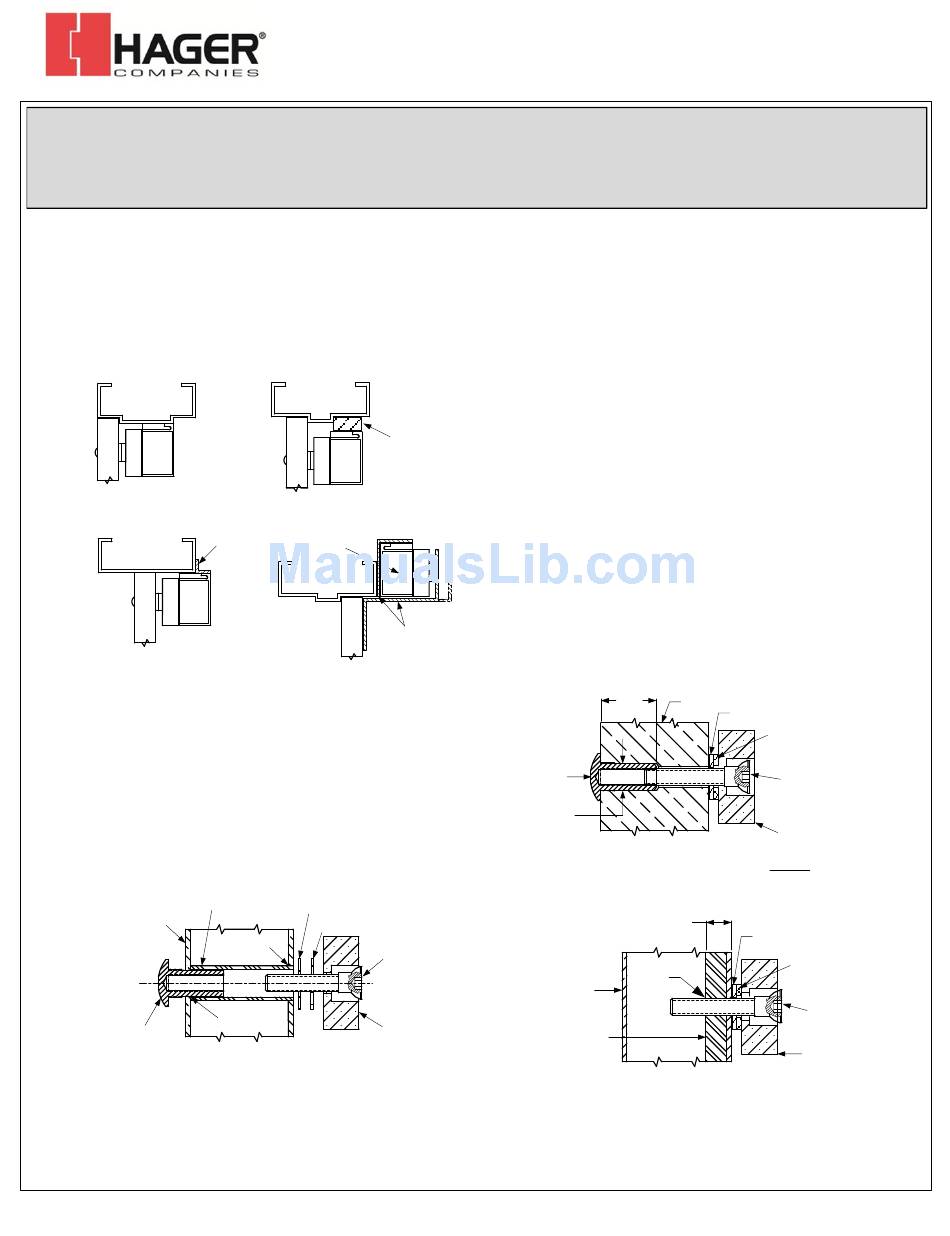

hager 2951 Installation Instructions

DEVICES COVERED IN THIS DOCUMENT:
2951, 2952, 2953, 2954
The 2950 Series MagLock is mounted to the underside of the header, on the
stop side of the door. A top jamb mounting kit (optional) can be used when
mounting on the hinge side of the door. (Fig. 1D)
The armature is mounted to the door. A hardware kit is provided to
compensate for misalignment and wear of the door, by allowing the armature
to pivot on it's center point.
1. Inspect the frame header to determine if an angle bracket or filler plate
is required. See Figure 1A, 1B, 1C.
FIG. 1A
Regular
FIG. 1C
With Angle Bracket
2. Fold template as indicated by dotted line. For single doors, locate
template against the door and header on the lock jamb side of the
frame.
3. Mark and drill holes as indicated bt template. For armature plate hole
preparation, see Figure 2A, 2B, 2C.
4. Mount armature to door. To determine proper hardware (provided), see
Figure 2A, 2B, 2C.
5. Install mounting plate to header with the interlock detail away from the
door side of the stop, with #10 Flt Hd. Screws provided.
1-3/4"
HOLLOW
METAL DOOR
SEXNUT
FIG. 2A HOLLOW METAL DOOR
From Sexnut side of door, drill exactly 1/2" hole thru one metal thickness
only. From Armature side of door, drill 5/8" hole to insert reinforcement
tube. Press in sexnut and reinforcement tube all the way and mount
armature to door using hardware provided per Figure 2B.
Rev 2, Rev Date: 12/12/13
FIG. 1B
With Filler Plate
Angle
Bracket
Standard
Lock
FIG. 1D
Top Jamb Installation
REINFORCEMENT
STEEL WASHER
TUBE
RUBBER WASHER
5/8" DRILL
1/2" DRILL
ARMATURE
Always visit www.hagerco.com for the latest Installation Instructions
HAGER COMPANIES 139 Victor Street, St. Louis, MO 63104 • (800) 325-9995
6. Holding the magnet housing at each end, engage the entire
length of the interlock detail, by pushing towards the door.
(If necessary, tap with a soft hammer to ensure proper alignment
and engagement).
Caution: The lock body must be held in place until
secured with mounting screws.
housing at each end. Tighten the screws and check alignment.
7. Test operation. When all is operating properly, tighten all
screws. Install anti-tamper plugs over socket head screw
using a soft hammer to avoid damage to the housing.
Filler
Electromagnet and armature should be handled carefully.
Plate
Any damage to the surface such as paint, burrs, dirt and rust
may hinder bonding of surface and reduce holding power.
SHOULD THE SURFACE PLATING BE DAMAGED:
Do not touch the lock face with your hands.
Using a soft, clean, dry cloth or abrasive cloth (i.e., Scotch-Brite),
clean lock face. Do not use sand paper.
A rust inhibitor such as M1, manufactured by Starret, or LPS3,
manufactured by LPS Laboratories (available at most hardware
stores) can then be applied.
Adjustable
Apply a coat of inhibitor to armature face also.
TJ Bracket
SEXNUT
1/2"
Drill 3/8" hole thru door. From sexnut side of door, drill exactly 1/2" hole,
1-3/8" deep. Mount armature to door with hardware provided per Figure 2A.
5/16-18 SOC HD
SCREW
WITH 3/16 (5MM)
ALLEN HEX
DOOR
Reinforceme
nt
by others
armature to door with hardware provided per Figure 2C.
2950 Series Magnetic Locks
Installation Instructions
Screws provided inside the
1-3/8"
DOOR
WASHER
FIG. 2B SOLID DOOR
WASHER
3/8" MIN
METAL
required
5/16-18
FIG. 2C REINFORCED DOOR
Drill and tap for 5/16-18 machine screw. Mount
I-EA00063
RUBBER
WASHER
5/16-18 SOC HD
SCREW
WITH 3/16
(5MM) ALLEN
HEX
ARMATURE
Add as
RUBBER
WASHER
5/16-18 SOC HD
SCREW
WITH 3/16 (5MM)
ALLEN HEX
ARMATURE
Page 1 of 3
