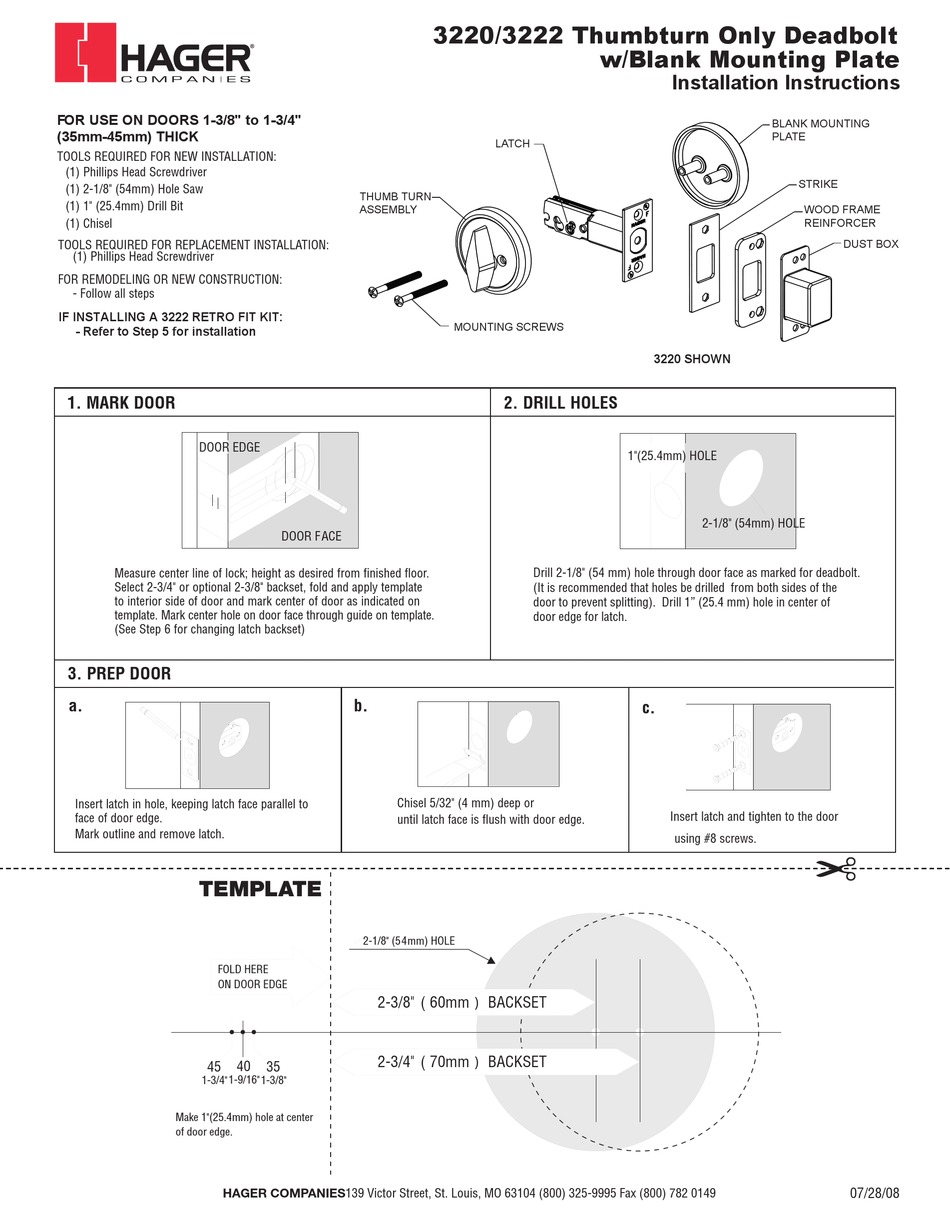

hager 3220 Installation Instructions Manual

FOR USE ON DOORS 1-3/8" to 1-3/4"
(35mm-45mm) THICK
TOOLS REQUIRED FOR NEW INSTALLATION:
(1) Phillips Head Screwdriver
(1) 2-1/8" (54mm) Hole Saw
(1) 1" (25.4mm) Drill Bit
(1) Chisel
TOOLS REQUIRED FOR REPLACEMENT INSTALLATION:
(1) Phillips Head Screwdriver
FOR REMODELING OR NEW CONSTRUCTION:
- Follow all steps
IF INSTALLING A 3222 RETRO FIT KIT:
- Refer to Step 5 for installation
DOOR EDGE
DOOR EDGE
1. MARK DOOR
DOOR EDGE
DOOR FACE
1"(25.4mm) HOLE
1"(25.4mm) HOLE
4-1/8"(105mm)
4-1/8"(105mm)
Measure center line of lock; height as desired from finished floor.
DEEP
Select 2-3/4" or optional 2-3/8" backset, fold and apply template
to interior side of door and mark center of door as indicated on
template. Mark center hole on door face through guide on template.
2-1/8" (54mm) HOLE
1"(25.4mm) HOLE
(See Step 6 for changing latch backset)
1-3/16" (31mm) DEEP
4-1/8"(105mm)
3. PREP DOOR
a.
Insert latch in hole, keeping latch face parallel to
face of door edge.
Mark outline and remove latch.
TEMPLATE
T E MP L A T E
FOLD HERE
ON DOOR EDGE
45
1-3/4" 1-9/16"
Make 1"(25.4mm) hole at center
of door edge.
HAGER COMPANIES139 Victor Street, St. Louis, MO 63104 (800) 325-9995 Fax (800) 782 0149
LATCH MOUNTI
THUMB TURN
THUMB TURN
ASSEMBLY
ASSE
DOOR FACE
DOOR FACE
DEEP
2-1/8" (54mm) HOLE
1-3/16" (31mm) DEEP
DEEP
2-1/8" (54mm) HOLE
b.
1-3/16" (31mm) DEEP
Chisel 5/32" (4 mm) deep or
until latch face is flush with door edge.
2-1/8" (5 mm) HOLE 4
2-3/8" ( 60mm ) ) BACKSET
2-3/4" ( 70mm ) ) BACKSET
40 35
1-3/8"
3220/3222 Thumbturn Only Deadbolt
w/Blank Mounting Plate
L
LATCH
MOUNTING SCREWS
2. DRILL HOLES
Drill 2-1/8" (54 mm) hole through door face as marked for deadbolt.
(It is recommended that holes be drilled from both sides of the
door to prevent splitting). Drill 1" (25.4 mm) hole in center of
door edge for latch.
PROPRIETARY & CONFIDENTIAL
THE INFORMATION CONTAINED
IN THIS DRAWING IS THE SOLE
PROPERTY OF HAGER
COMPANIES. ANY REPRODUCTION
INPART OR AS A WHOLE WITHOUT
THE WRITTEN PERMISSION OF
HAGER COMPANIES IS PROHIBITED.
Installation Instructions
BLANK MOUNTING
PLATE
DEAD
STRIKE
STRIKE
WOOD FRAME
WOOD FRAME
REINFORCER
REINFORCER
DOOR EDGE
3220 SHOWN
DOOR FACE
1"(25.4mm) HOLE
2-1/8" (54mm) HOLE
HAGER RESERVES
THE RIGHT TO
MAKE DESIGN
CHANGES MATERIAL
WITHOUT NOTICE. Material <not specified>
CALL HAGER
ENGINEERING AT
FINISH
1-800-325-9995 -
FOR THE LATEST c.
REVISION DATE
DO NOT SCALE DRAWING
OF TEMPLATE.
Insert latch and tighten to the door
using #8 screws.
DUST BOX
DUST BOX
DRAWN -
ENG. APPR. -
Q.A.
TOLERANCES:
FRACTIONAL: 0.015"
ANGULAR: MACH: 1
TWO PLACE DECIMAL:
THREE PLACE DECIMAL:
07/28/08
