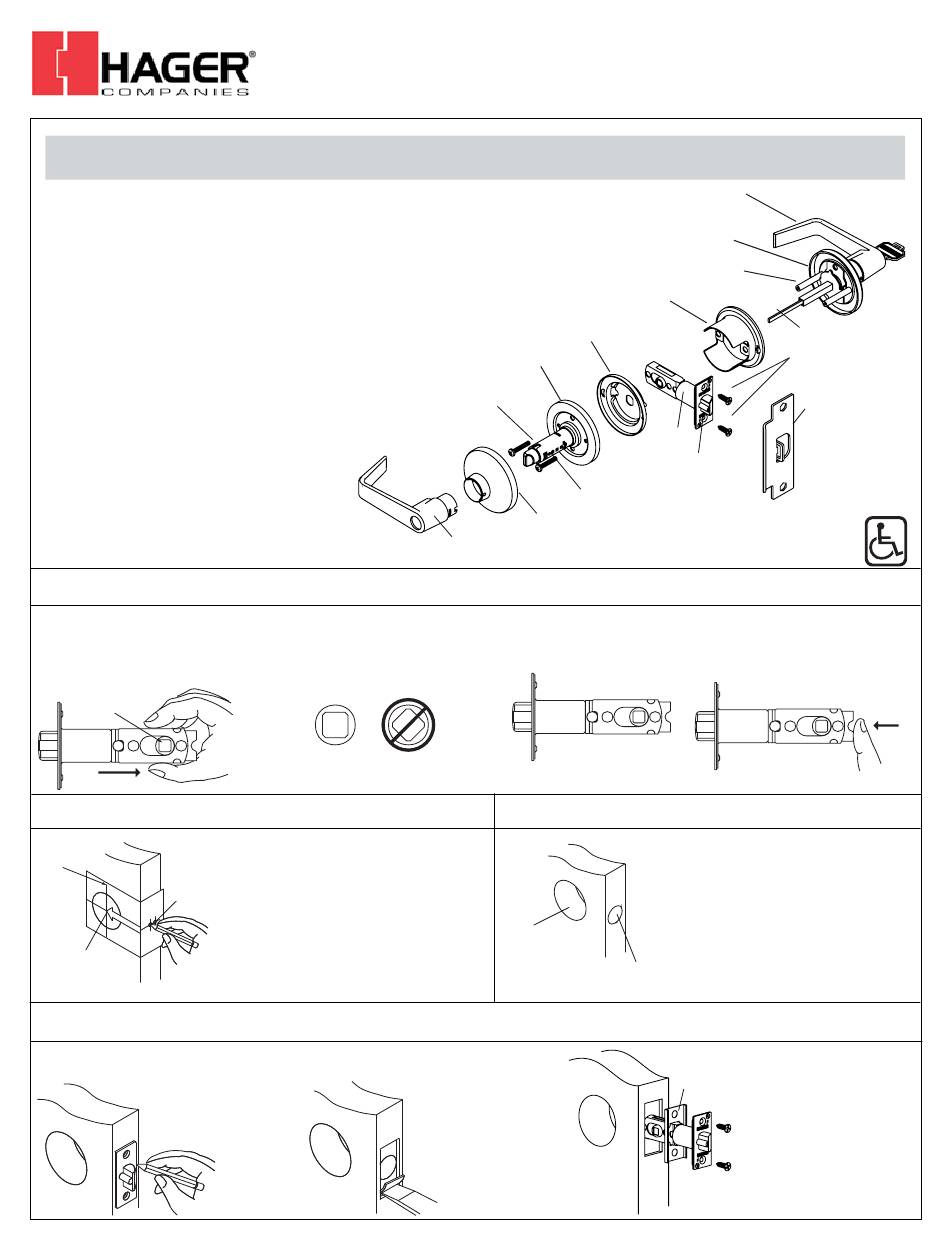

For use on doors 1-3/8" to 1-3/4" (35 mm - 45 mm) thick
TOOLS REQUIRED FOR NEW INSTALLATION:
(1) Phillips Head Screwdriver
(1) 2-1/8" (54 mm) Hole Saw
(1) 1" (25.4 mm) Drill Bit
(1) Chisel
TOOLS REQUIRED FOR REPLACEMENT INSTALLATION:
(1) Phillips Head Screwdriver
FOR REMODELING OR NEW CONSTRUCTION:
-Follow all steps
FOR REPLACEMENT OF EXISTING LOCK:
-Follow steps 1, 3C, 4C, 5C, 6 through 9 after removal of
old lock
FOR CYLINDER REPLACEMENT:
-Follow Step 10
1. LATCH BACKSET ADJUSTMENT
A.
If 2-3/4" backset is required,
pull spindle cam all the way to the
right edge of the adjusting hole.
SPINDLE CAM
2. MARK DOOR
MARK FOR 1"
CENTER
(25.4 mm)
LINE
HOLE IN
DOOR EDGE
MARK FOR 2-1/8"
(54 mm) HOLE ON
DOOR FACE
4. INSTALL LATCH
A.
Insert latch in hole
keeping it parallel to face
of door. Mark outline of
latch face plate and
remove latch.
REV 2
INSIDE MOUNTING ASSEMBLY
B
Be sure spindle hole is properly
aligned. It is important that the
spindle hole remains properly aligned
throughout the installation.
RIGHT
WRONG
Measure center line of lock; height as
desired from finished floor. Select
2-3/8" or 2-3/4" backset, fold and apply
template to high side of door bevel and
mark center of door edge as indicated
on template. Mark center hole on door
face through guide on template.
B.
mm) deep or until latch
face plate is flush with
door edge.
3600 Series ANSI Grade 2 Tubular Lever Set
OUTSIDE ROSE ASSEMBLY
OUTSIDE FIRE SHIELD
INSIDE FIRE SHIELD
TURN PIECE
MOUNTING SCREWS
INSIDE ROSE
INSIDE LEVER
(REVERSIBLE)
C.
The latch is now set for
2-3/4" backset.
3. DRILL HOLES
2-1/8" (54 mm)
HOLE FOR
LOCKSET
1" (25.4 mm)
HOLE FOR LATCH
Chisel 5/32" (4
Installation Instructions
Meets ANSI 156.2
OUTSIDE LEVER
(REVERSIBLE)
SCREW POST
SPINDLE
LATCH SCREWS
ASA STRIKE
LATCH
FACE PLATE
(ILLUSTRATION: ENTRANCE FUNCTION)
D.
To reset the latch to 2-3/8"
backset, push the spindle cam to
the left edge of the adjusting hole.
Drill 2-1/8" (54 mm) hole through
door face as marked for lockset.
(It is recommended that holes be
drilled from both sides on wood
doors to prevent splitting.) Drill
1" (25.4 mm) hole in center of
door edge for latch.
C.
Insert latch and tighten
SPACER
(OPTIONAL)
screws. NOTE: Latchbolt
bevel must face to closing
direction. For doors with a
1-1/8" wide latch cutout,
insert latch through optional
spacer and then install latch
in door.
I-LS00769
Page 1 of 2
