hager 3200 Series Installation Instructions Manual

For use on doors 1-3/8" to 1-3/4" (35 mm - 45 mm) thick
TOOLS REQUIRED FOR NEW
INSTALLATION:
(1) Phillips Head Screwdriver
(1) 2-1/8" (54 mm) Hole Saw
(1) 1" (25.4 mm) Drill Bit
(1) Chisel
TOOLS REQUIRED FOR
REPLACEMENT
INSTALLATION:
(1) Phillips Head Screwdriver
FOR REMODELING OR NEW
CONSTRUCTION:
-Follow all steps
1. MARK DOOR
MARK FOR
1" (25.4 mm)
CENTER LINE
HOLE IN
DOOR EDGE
MARK FOR 2-1/8"
(54 mm) HOLE ON
DOOR FACE
3. INSTALL LATCH
A. Insert latch in
hole keeping it
parallel to face of
door. Mark outline
of latch face plate
and remove latch.
B. Chisel 5/32" (4
mm) deep or until
latch face plate is
flush with door
edge.
C. Insert latch and
tighten to the door
using #8 screws.
REV 2
FOR REPLACEMENT OF
EXISTING LOCK:
-Follow steps 3C, 4C, and 5
(single cylinder) or 6 (double
cylinder) after removal of old
lock
NOTE: When installing an IC
Core single cylinder deadbolt
to a 1-3/8" thick door, you
must install provided spacer
INSIDE CYLINDER
ring behind the cylinder
assembly for proper spacing.
Measure center line of lock; height as
desired from finished floor. Select
2-3/4" or optional 2-3/8" backset, fold
and apply template to high side of bevel
door and mark center of door edge as
indicated on template. Mark center hole
on door face through guide on template.
4. INSTALL STRIKE
JAMB
CENTER
LINE
OUTSIDE CYLINDER COLLAR
FIRE/SECURITY SHIELD
LATCH
MOUNTING
SCREWS
INSIDE CYLINDER COLLAR
INSIDE ROSE
DEADBOLT
WOOD FRAME REINFORCER
MOUNTING SCREWS
2. DRILL HOLES
2-1/8" (54 mm)
HOLE
A.
line of strike. Open door and extend line to door
stop. Measure one half of door thickness plus 1/8"
from door stop. Vertically mark center line for strike.
B
deep in door jamb and 5/16" (8 mm) above and
5/16"
CL
5/16" (8 mm) below horizontal center line.
5/16"
CAUTION: To ensure proper lockset function, hole in
jamb must be drilled a full 1-1/4" (32 mm) deep.
CL
C.
centerlines on jamb. Mark outline of strike and
chisel 1/4" (6.4 mm) deep for flush fit of dust box,
wood frame reinforcer, and strike. Place dust box
and wood frame reinforcer into mortised area and
tighten to the frame using 3" wood screws. Insert
the strike and tighten to the frame with #8 screws.
NOTE: Mortise 5/64" (2 mm) deep if mounting strike plate only.

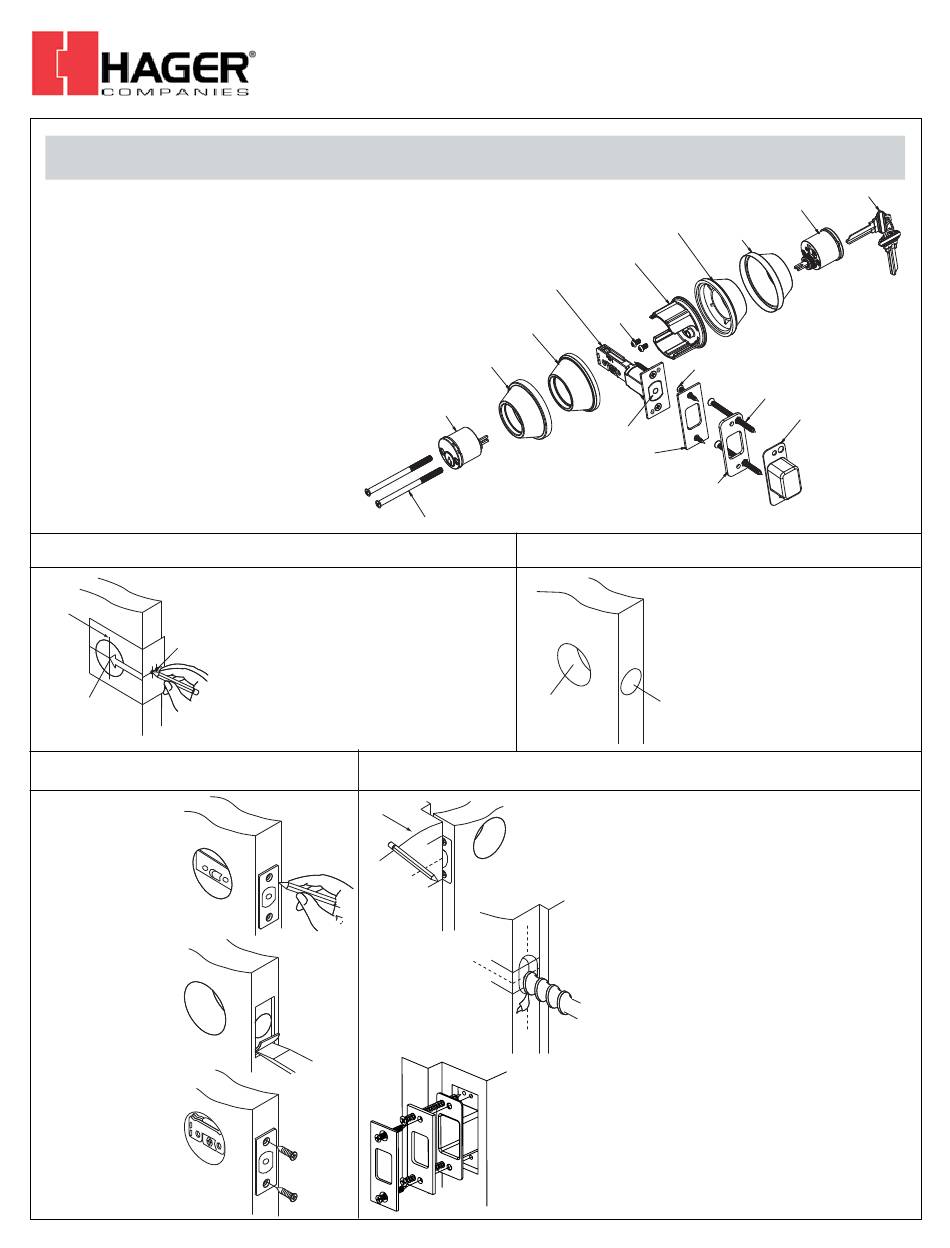

3200 Series ANSI Grade 2 Deadbolt
Installation Instructions
OUTSIDE CYLINDER
OUTSIDE ROSE
STRIKE MOUNTING SCREWS
WOOD SCREWS #10 X 3"
STRIKE
(ILLUSTRATION: DOUBLE CYLINDER FUNCTION)
Drill 2-1/8" (54 mm) hole through door
face as marked for deadbolt. (It is
recommended that holes be drilled from
both sides on wood doors to prevent
splitting.) Drill 1" (25.4 mm) hole in
center of door edge for latch.
1" (25.4 mm) HOLE
Close door. Locate strike in jamb and center
Drill two 1" (25.4 mm) holes 1-1/4" (32 mm)
Match screw holes on strike with vertical
Meets ANSI 156.5
I-LS00764
KEYS
DUST BOX
