Summary of Contents for Daewoo GDA2500iS

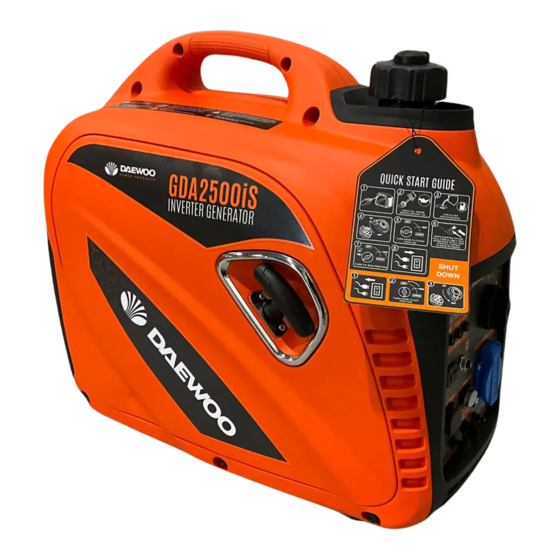

- Page 1 GDA2500iS Inverter Generator USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SAFETY RULES ............................3 2. FEATURES ............................... 6 3. CONTROL PANEL FUNCTIONS ......................7 4. ASSEMBLY ............................9 5. OPERATION ............................11 6.MAINTENANCE ............................. 16 7. TECHNICAL DATA ..........................21 EXPLODED VIEW ............................. 22 WARRANTY .............................. 27... -
Page 3: Safety Rules
1. SAFETY RULES Safety Symbols Indicates a potentially hazardous WARNING! situation which could result in serious injury or death if not avoide Indicates a potentially hazardous WARNING! situation which could result in damage to equipment or property. Safety Instructions The manufacturer cannot anticipate every possible hazardous circumstance that the user may encoun- ter. - Page 4 • Install a battery operated carbon monoxide alarm near bedrooms. • Keep exhaust from this unit from entering a con ned area through windows, doors, vents, or other openings. • When working in areas where vapors could be inhaled, use a respirator mask according to all of its instructions.
- Page 5 Pull cord recoils rapidly and pulls arm towards engine faster than you can let go WARNING! which could result in injury. • To avoid recoil, pull starter cord slowly until resistance is felt, then pull rapidly. Avoid contacting hot areas of this unit WARNING! •...
-
Page 6: Features
• Never insert objects through cooling slots. Never operate this unit if there are any broken or missing parts and only use our WARNING! Equipment replacement parts specifically designed for this unit. • Improper treatment of generator can damage the unit and shorten its life. •... -
Page 7: Control Panel Functions
3. CONTROL PANEL FUNCTIONS ON/OFF Start Switch and Choke Start Switch “OFF” When the Start Switch is in the “OFF” position the fuel valve is switched off and the engine will not run. Start Switch “CHOKE” When the Start Switch is in the “CHOKE” position the fuel valve is switched on and the engine can be started. - Page 8 DUCAR dealer for a PARALLEL OPERATION CABLE KIT. WARNING! Never connect generators that are different models. • Only connect this generator to another GDA2500iS Standard Generator or GDA2500iS Companion Generator • Only use brands approved parallel operation cable kit to connect generators...
-
Page 9: Assembly
Fuel Cap Turn counterclockwise to remove the fuel cap Fuel Cap Air Vent The fuel cap is equipped with an air vent to stop fuel from owing to the carburetor. The Air Vent must be in the “ON” position to allow fuel to ow so that the engine can run. - Page 10 in serious injury or death to electric utility workers. Adding Fuel • Set generator on a clean and level surface in an area that is well ventilated. • Remove fuel cap. • Insert a funnel into the fuel tank and carefully pour gasoline into the tank until fuel level reaches about 1 ½...
-
Page 11: Operation
5. OPERATION Grounding the Generator To avoid electrocution, this generator must be properly grounded prior to use. For instructions see Control Panel Functions pg. 10. Standard Atmospheric Conditions Ambient Temperature: 77ºF (25ºC) Barometric Pressure: 100kPa Relative Humidity: 30% Generator output will vary due to changes in temperature, altitude, and humidity. If the temperature, humidity, or altitude are higher than standard atmospheric conditions, the generator’s output will be reduced. - Page 12 How to Stop Engine • Turn the ECO switch to the “OFF” position. • Disconnect any electronic device. All loads MUST be disconnect from the generator. Never start or stop the engine with electrical devices plugged in to the receptacles. •...
- Page 13 Contact a medical physician immedia- tely. AC Parallel Operation The GDA2500iS generator has two models that are compatible with each other (Standard and Compa- nion). It is possible to connect two GDA2500iS generators to each other, using a parallel cable kit.
- Page 14 Never connect generators that are different models. WARNING! • Only connect this generator to another GDA2500iS Generator or GDA2500iS Companion Generator • Only use brands approved parallel operation cable kit to connect generators. • The parallel cable must be removed if operating only one generator.
- Page 15 1. Add up the total rated wattage of all electronic devices that will be connected to the generator simul- taneously. 2. Estimate surge watts by adding the item(s) with the highest output (it is unnecessary to calculate the surge output for all devices as they should be connected one at a time). 3.
-
Page 16: Maintenance
6. MAINTENANCE Regular maintenance will extend the life of this generator and improve its performance. The warranty does not cover items that result from operator negligence, misuse, or abuse. To receive full value from the warranty, operator must maintain the generator as instructed in this manual, including proper stora- Before inspecting or servicing this machine, make sure the engine is off and no WARNING! parts are moving. - Page 17 Checking Spark Plug • Remove cap. Then remove spark plug cap. • Disconnect the spark plug wire from the spark plug. • Before removing the spark plug, clean the area around its base to prevent debris from entering the engine. •...
- Page 18 Do not tilt generator when adding oil. This could result in overfilling which could CAUTION! damage the engine. CAUTION! Make sure no foreign matter enters the crankcase. Air Filter Adirty air lter will reduce the life span of the engine, make it dif cult to start the engine, and reduce the unit's performance.
- Page 19 Checking Muffler and Spark Arrester • Inspect muf er for cracks, corrosion, or other damage. • Remove screws, then remove shown area of outer casing. • Loosen bolt, then remove muf er cap, muf er screen, and spark arrester. • Check the muf er screen and spark arrester for carbon deposits. Remove carbon deposits with a wire brush.
- Page 20 Storage To protect your generator from deterioration during long term storage, take the following preventative measures: EXTERIOR • Remove any debris that has collected on the generator and around the muf er and controls. Use a vacuum cleaner topick up loose debris. If dirt is caked on, use a soft bristle brush. •...
-
Page 21: Technical Data
7. TECHNICAL DATA Frequency: 50 Hz Running Watts: 2000 W Max Watts: 2200 W AC Voltage: 230 V AC Current: 8.7 Max. altitude: 1000 m Performance Class: G1 Quality Class: A Max. Amb. Temp: 40º C (104º F) Power factor: 1.0 Phase: Single Net weight: 22 kg Accessories:... - Page 23 Part name CRANKCASE SWITCH ASSEMBLY,OIL LEVEL BOLT M6X12 CLAMPER CORD OIL SEAL BALL BEARING CRANKSHAFT PISTON SCRAPER RING SET ,PISTON PIN, PISTON CLIP, PISTON ROD ASSEMBLY., CONNECTING LIFTER,VALVE CAMSHAFT ASSEMBLY CRANKCASE，PIN，DOWEL GASKET,MOULD ASSEMBLING COVER ASSEMBLY, CRANKCASE DIPSTICK GASKET,CYLINDER HEAD CYLINDER HEAD,ASSEMBLY SPARK PULG EXHAUST VALVE ROCKER ASSY ROCKSHAFT...
- Page 25 Part name quantity MUFFLER BAFFLE OIL CHANNEL BRACKET FILTER SCREW ST4.2X13 FUEL TANK CAP BOLT M6X30 FLAT PAD MOTOR FIXING COVER RIGHT FRAME MOTOR INTAKE HOOD RIGHT PANEL MOTOR STATOR ASSEMBLY PULL ROPE GUIDE PLATE BOLT M6X12 NUT M6 HANDLE DECORATION BLOCK MOTOR ROTOR ASSEMBLY MOTOR FAN HANDLE COVER...
-
Page 26: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY Model Name: Inverter Generator Model Code: GDA2500iS Brand: We GBR Corp. LTD, Room 1002, 10/F., David House, 8-20 Nanking Street, Jordan, Kowloon, Hong Kong, China, declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations. -
Page 27: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 2 year for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 28 Manufactured under license of Daewoo International Corporation, Korea...
