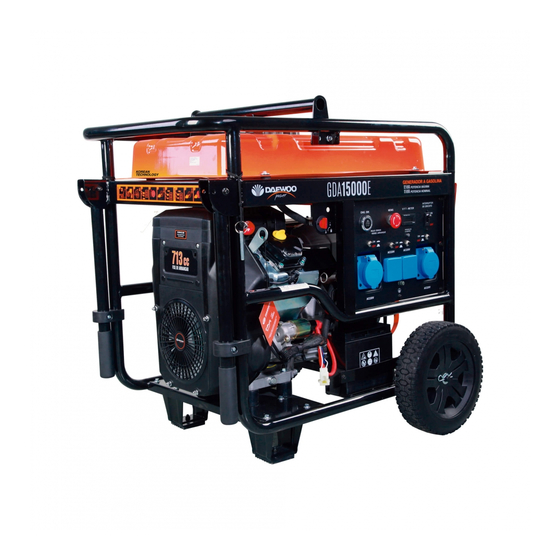

Summary of Contents for Daewoo GDA15000E
- Page 1 GDA15000E Gasoline generator USER'S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. SAFETY WARNING ..........................2 2. SAFETY NOTICE ............................ 2 3. PART AND COMPONENT NAMES ......................4 4． OPERATION SYSTEM ..........................4 5. USE OF GENERATOR ..........................6 6. CHECK BEFORE OPERATION ......................8 7. START ENGINE ............................. 10 8. -
Page 3: Safety Warning
1. SAFETY WARNING It is very important for the safety of your body and property and for that of the other persons. Please carefully read the information after the symbols They are the safe warning symbols to give you a warn or a prompt. The definition of the symbols are given below: DANGER: Extreme harm will occur, provided your operation does not follow the information after the symbol. - Page 4 Never connect it direct to power supply. Keep it 1m away from inflammable thing. Don’t smoke, while filling fuel. Don’t overfill fuel. Stop engine before filling fuel.
-
Page 5: Part And Component Names
3. PART AND COMPONENT NAMES Fuel tank Frame Break protector Digital voltmeter The socket Earthing terminal Throttle switch Walk round Engine switch Fuel tank switch The radiator End cap Battle plane Muffler 4． OPERATION SYSTEM 1) Engine switch “RUN” indicates the engine in “Run ” position， “OFF” indicates the engine in “OFF” position, “START”... - Page 6 The battery is working for the carburetor valve at “RUN” channel. So please make sure the switch is at the “OFF” channel when the unit is turn off. 2) Fuel valve The fuel valve is used to control the fuel flow from the tank to the carburetor. After stopping the engine, the fuel valve should turn to “Off”...
-
Page 7: Use Of Generator
5) Grounding terminal The grounding terminal is a special terminal which is used to connect the generator to the ground properly. Ground Grounding terminal 6) Engine protecting system The engine protecting system is designed to protect engine from damage because of lack of oil in the crank case. - Page 8 2) Generator grounding To prevent the electric shock from the poor-quality appliances or from incorrect use of appliances, it is necessary to connect the generator to the ground with an insulated wire. Ground Grounding terminal 3) Alternating current Before starting the generator, it must confirm: The total power of the appliances does not exceed the rated power of the generator.
-
Page 9: Check Before Operation
Watt Examples Type Starting Rated Typical appliances Appliances Starting Rated • Filament lamp • Heater 100 VA 100 VA Fluirescent lamp Fluirescent lamp 100 W Fluirescent lamp X1.5 • Fluirescent 40 W 80 VA 60 VA lamp Refrigerator 150 W •... - Page 10 Recommended engine oill: Engine oil for 4-stroke engine: API classification: SE、 SF or equivalent to S SAE 10W-30. Environment temperature Checking method of engine oil level: Pull out the oil ruler and clean it. Plug in the ruler thoroughly and take it out again to check the oil level.
-
Page 11: Start Engine
WARNING! · After stopping the engine, fill fuel in good ventilating area. Keep firmly in mind that it is prohibited to smoke and flame around the area. Never overfill fuel at any time. · Prevent skin from contacting with fuel and avoid inhaling fuel vapor. ·... -
Page 12: Stopping Engine
5) Turn the start switch to “start” position. 6) After starting the engine, release the “start ” switch immediately, the switch will return back to “run ” position. 7) After warming up the engine, push the choke button to “open” position. NOTE: ·... - Page 13 20 hours or 50 hours 100 hours 300 hours the first or every Periodical maintenanc Every every 3 or every 6 month (3) year (3) schedule time month (3) month (3) ○ Oil level Engine oil ○ ○ Replace ○ (2) or Fine oil filter Replace...
- Page 14 CAUTION: If the skin touches the engine oil frequently in long term, it may result in skin cancer. Although it is not inevitable, we recommend to clean your hands with soap water thoroughly. 2) Maintain air cleaner If the air cleaner is dirty, it affects air inlet, the power of engine reduced. If the running place is dusty, maintenance must be done more frequently than that shown in maintenance schedule.
-
Page 15: Storage
3) Clean fuel filtering cup 1) Close the fuel valve. Detach the depositing cup and remove the “O” ring and screen. 2)Clean the depositing cup, the “O” ring and screen with uninflammable or high flash-point solvent. Screen 3) Reinstall the “O” ring and the screen， tighten the cup. “O”... - Page 16 Draining screw Overflow pipe WARNING: As a ruler, gasoline is an inflammable and explosive liquid. After stopping the engine, drain fuel in ventilating condition. Prohibit firing and smoking during drainage. 2) Remove the oil level ruler, unscrew the draining screw and drain out the engine oil in crankcase. Tighten the draining screw, fill fresh oil to the top line, then reinstall the ruler.
-
Page 17: Troubleshoot
11. TROUBLESHOOT Engine does not start： Check if there is any fuel in the tank? Fill fuel Check if sufficient oil in the crankcase? Fill oil Check if proper spark Replace Conctact with produced by spark plug? spark plug authorized dealer Check if there is any fuel in carburetor? Check if there is any... -
Page 18: Wiring Diagram
12. WIRING DIAGRAM 1) 1500 1-phase diagram... -
Page 19: Powered Start Assy
13. POWERED START ASSY 1) Pass the powered starting wires through the engine mounting frame and connect it to the starting battery switch. 2) Connect the grounding wire to the terminal at the end of the generator. 3) Place the battery into the lateral bracket, and fasten the battery with a fixture, then tighten the screws. -
Page 20: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 1 year for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 21 Manufactured under license of Daewoo International Corporation, Korea...
