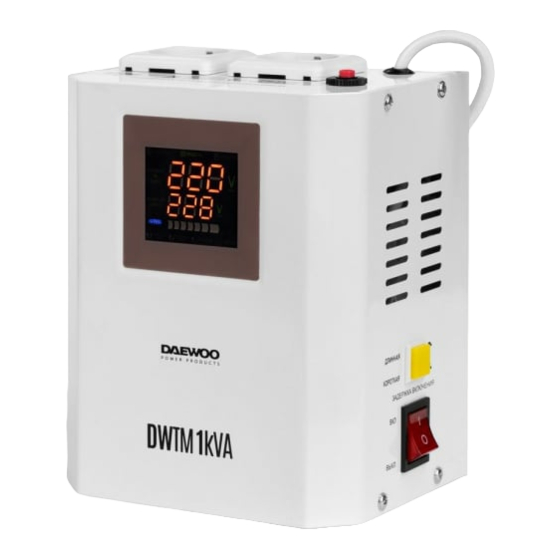

Daewoo DWTM Series Manual

Daewoo DWTM Series Manual

Voltage stabilizers

Advertisement

DWTM-DWTZM SERIES
VOLTAGE STABILIZERS
USER´S MANUAL
Manufactured under license of Daewoo International Corporation, Korea

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWTM Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Daewoo DWTM Series

  • Page 1 DWTM-DWTZM SERIES VOLTAGE STABILIZERS USER´S MANUAL Manufactured under license of Daewoo International Corporation, Korea...
  • Page 2 INDEX ............................2 1. General description ........................4 2. Main features ..........................6 3. Function key introduction ......................... 4. Choice avr method 5. Specifications ........................... 6. Warranty ......................8...
  • Page 3: General Description

    1. GENERAL DESCRIPTION We are a manufacturer specializing in Automatic Voltage Stabilizers and we are authorized ISO9001: 2000 International Quality System Certificate. We have powerful technical capacity, advanced testing and chec- king technical and equipment, all our products are insured by the PICC, and the quality are keep ahead in this area.
  • Page 4: Function Key Introduction

    3. FUNCTION KEY INTRODUCTION DW-TZM Series DW-TZM Series Back DW-SVC Series DW-SVC Series back 2 Power Switch LCD Screen FUSE Input Powerwire Delay Switch Output socket Connector 4. CHOICE AVR METHOD To summed rated capacity of each electrical appliance When select a Voltage Stabilizer to use,avoid resulting in the voltage stabilizer breaker down cause this machine is in super over loading long time working .
  • Page 5 4 Over-heat,when this AR Tempereture is higher than 120 because of loading rate very high or input voltage high and put on the high temperature environment,and this AVR automatically cut off the output voltage,and meanti- me the LCD will show protect , Output voltage show 000 ,loading rate show 000 ,and bottom of LCD will show over-heat: 7.
  • Page 6 8. MALFUNCTION ANALYSIS AND MAINTAINCE Methods of checking and modifying Fault Causes No Voltage Input Check each connecting fitting, make sure each connecting point is well Switch is on OFF Turn Working Replace Fuse with which is same model Fuse burnt By-pass or not Normal working or swift regulator voltage situation (swift by-pass and regulator switch) Protective Stage of...
  • Page 7: Output Capacity

    Output capacity Main data Output current Input voltage Output voltage Model 500VA 500VA 2.3A 600VA 600VA 2.7A 1000VA 1000VA 4.6 A 1500VA 1500VA 2000VA 2000VA 9.1A DW-SVC AC150V 270V AC220V 3% 3000VA 3000VA 13.6 A 5000VA 5000VA 22.7A 8000VA 8000VA 36 .4A 10KVA 10KVA...
  • Page 8: Three Phase

    Output capacity Main data Output current Input voltage Output voltage Model 3500VA 3500VA 16 A 5500VA 5500VA DW-TSD AC150V 265V AC220V 3% 8000VA 8000VA 36 .4A 10000VA 10000VA 45 .5A 3500VA 3500VA 16 A A AC150V 270V 5500VA 5500VA DW-TM AC220V 10% B AC130V 270V 8000VA...
  • Page 10 Manufactured under license of Daewoo International Corporation, Korea...
