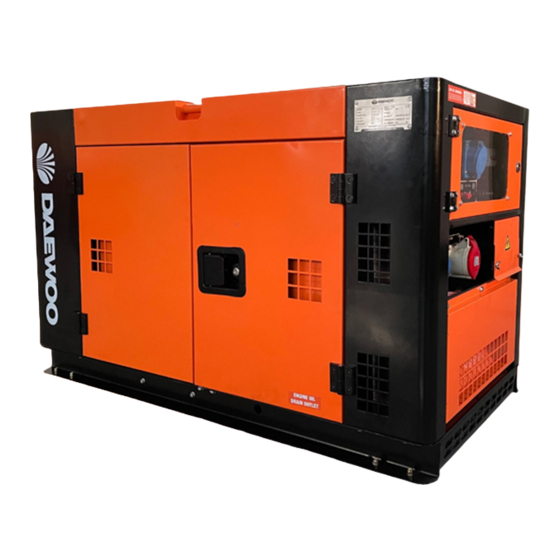

- Page 1 DAGFS-15AC Silent diesel generator USER’S MANUAL www.daewoopowerproducts.com Manufactured under license of Daewoo International Corporation, Korea...
-
Page 2: Table Of Contents
INDEX 1. OPERATION...............................2 2. MAINTENANCE............................9 3. TROUBLE SHOOTING AND REMEDY....................11 4. INSTRUCTION FOR CONTROL PANEL FUNCTION AND OPERATION MANUAL......12 5. TECHNICAL DATA...........................14 6. WARRANTY.............................15... -
Page 3: Operation
1. OPERATION NOTES FOR DIESEL GENERATOR SET OPERATION Before operating diesel generator, please read the manual. Especially following points should be paid attention to for preventing the accident happened. Preventing the re The engine fuel is light diesel. It is forbidden to adopt gasoline and kerosene etc. When the oil over ows, please use clean cloth to remove the oil. - Page 4 Other safety points It is very important to know how to stop the generator and the functions of all switches. The untrained person is not permitted to operate the generator. The operator should wear safe clothes and shoes during working. Charging the accumulator The diesel generator has automatic charging function.
- Page 5 Select lube oil viscosity based on ambient temperature when starting at cold temperature. It is very important to select the applicable engine oil for keep up the performance and life of the generating set. If inferior engine oil is used, or if your engine oil is not replaced periodically, the risk of piston seizure, piston ring sticking and accelerated wear of the cylinder liner, bea- ring and other moving components increases signi cantly.
- Page 6 When starting the generator each time, should check oil level. If not being enough, should add the lube oil to the stipulated level. Draining off lube oil can be immediately done after engine stopped, because it is dif cult to drain off the oil thoroughly when the engine is in cold state, shown in Fig.
- Page 7 Check the air cleaner of open frame diesel generator sets （1） Unscrew the bolt and take out side plate, shown in Fig. 2-6 Fig 2-6 （Open frame diesel generator ） Remark ： 1) It is forbidden to clean the element with detergent. 2) When output power drops or exhaust gas is black, should change the element.
- Page 8 Operation in trial For new engine, it is necessary to have 20 hour running-in operation initially. (1) Avoiding over-load During the trial operation, should prevent over-load. (2) Changing lube oil at xed period Change it after initial 20 hours operation and refer to2-2.3.1 afterwards. Starting the generator 2-4.1 Preparation before starting (1) Turn fuel switch to “ON”...
- Page 9 If the accumulator is of valve-controlled lead-acid type, it will be charged if necessary. Do not let two terminals contact with each other, which will make the circuit short. Operating the generator - Operating the engine. A) Start the engine B) Preheat the engine for three minutes without load.
-
Page 10: Maintenance
breaking down. E) Charge the accumulator under the place with better ventilation. Before charging, open the accumulator cover. If electrolytic temperature is over 45°C should break down charging. REMARK: When the accumulator is connected with generator DC terminals, do not try to start the engine in car or in vessel. - Page 11 - Change lube oil （ 20 hours for rst time and 100 hours for next three times and 200 hours for normal operation.） Loosen oil-drained plug located at the bottom of cylinder block when the engine is at hot state. After removing used lube oil, screw in the plug and add the stipulated oil.
-
Page 12: Trouble Shooting And Remedy
G) Wrap air cleaner and muf er with wet-proofed paper to prevent the dust and moisture going H) Remove the dust and the oily on the frame and control panel. I) Take out the key J) The generator should be stored at a place with better ventilation, clean, dry and no corrosive material nearby. -
Page 13: Instruction For Control Panel Function And Operation Manual
If the generate can not deliver the output after checking, please contact with RUNSUN com- pany or local dealer. 4. INSTRUCTION FOR CONTROL PANEL FUNCTION AND OPERATION MANUAL START/STOP OPERATION STARTING PROCEDURE In stop mode turn the starter key from OFF to ON position to power on the controller, then change the starter key position to START to begin cranking;... - Page 14 1# Frequency (Hz) 2# Current (A) 3# Battery voltage (V) 4# Run time (H) 5# Engine temp.(°C) 6# Generator temp.(°C) 7# Auto protection If on, auto protection is enabled; if not,it is disabled. 8# Run on indicator Fuel relay output indicator 9# Crank indicator Start output indicator 10# Engine oil warning Low oil pressure indicator NOTE: Before starting the engine please make sure that all the parameter settings are correct.
-
Page 15: Technical Data
16.5V, LED display or indicator starts ashing, butshutdown protection is not initiated. NOTE: During Safety On delay, protection is disabled; after Safety On Delay, when voltage, frequency, overload, high temperature protection is initiated, fuel output deacti- vates. 5. TECHNICAL DATA DAGFS-15AC SILENT TYPE DIESEL GENERATOR SET Model Power 11 kW... - Page 16 CO.LTD are complying the rules of Machinery Directive EN 60204-1:2018; EN ISO 12100:2010; EN ISO 8528-13:2016EN 55012:2007/A1:2009; EN IC 61000-3-2:2019 EN 61000-3-3:2013+A1:2019; EN 55012:2007/A 1:2009 The DAEWOO Products authorized representative declares that these products described under "technical data" are in compliance with: Machinery Directive EN 60204-1:2018; EN ISO 12100:2010; EN ISO 8528-13:2016EN 55012:2007/A1:2009;...
-
Page 17: Warranty
WARRANTY CARD Product model Date of sale Company Serial number Client's signature Username The product is in good conditions and fully complete. Read and agree the terms of the warranty. GUARANTEE The warranty period starts from the date of sale of the products and covers 2 years for all power products. During the warranty period, free failures caused due to the use of poor-quality materials in the production and manufacturer workmanship admitted fault are removed. - Page 18 Manufactured under license of Daewoo International Corporation, Korea...
