1.3.6.

Function diagram of the eight controller enable buttons

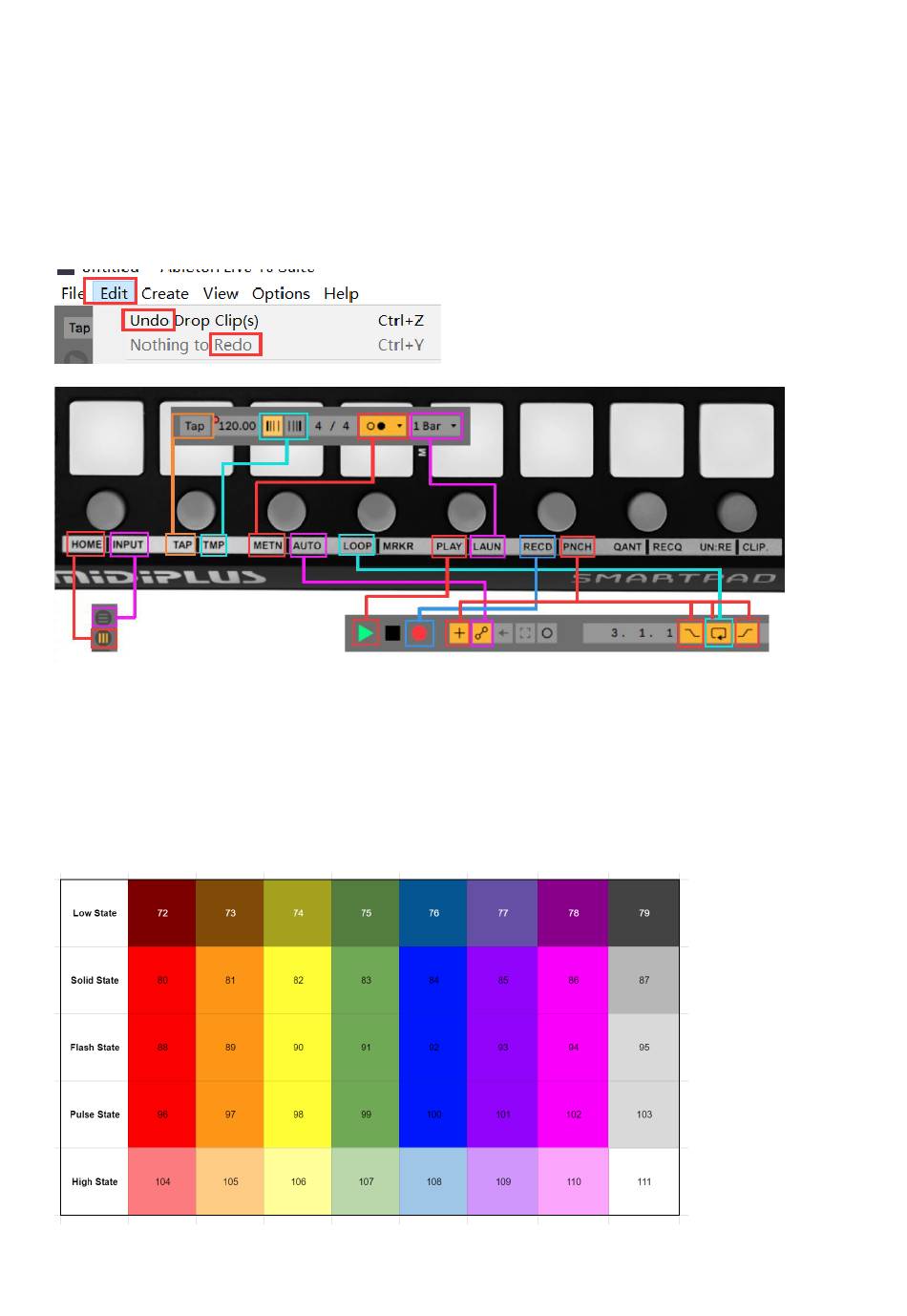

Eight controller enable buttons correspond to the picture of the Live software panel function, for
a gesture diagram of how to use these keys, see page 6 (1.2.3)
MRKR button: In the INPUT interface, the MRKR key moves the cursor position.
QANT button: In tracks mode, the QANT button enables the Clip View window to be displayed.
UN:RE button: This is the Undo and Redo shortcut in the Edit menu.
1.3.7.

MIDI command control LED color

MIDI command control LED color, format:
MIDI ON : 0x90 0x00 0xXX (XX: 0x48~0x6F)(Hex).
MIDI OFF:0x90 0x00 0x00
0xXX Value Query the number corresponding to the color diagram.
Note: The number in this picture is the third note of decimal value (velocity value).
