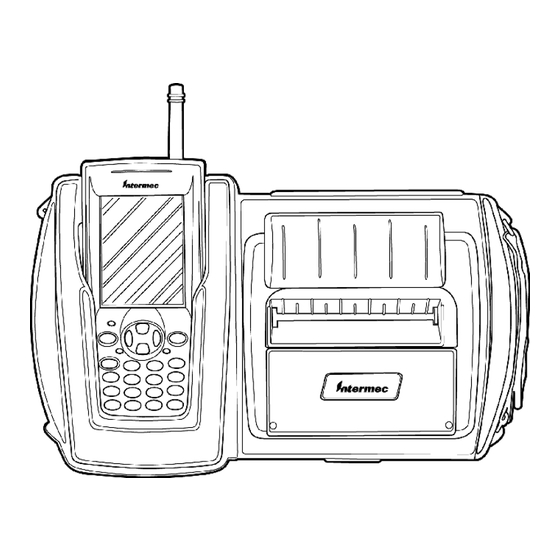

- Page 1 Quick Start Guide PW40 4-Inch Workboard Printer Equipped with a Bluetooth Qualified Module by Socket Communications...
-
Page 2: Packing List
S One roll of paper (in printer) S Battery Packs (installed) S Compliance Statement S Warranty Card *Bluetooth is a trademark of Bluetooth SIG, Inc., U.S.A. E 2003 by Intermec Technologies Corporation. All rights re- served. Common Accessories List Cable Part... -
Page 3: Getting Started
Getting Started DC power jack Paper roll RJ-11 port Paper advance wheel Paper release lever Charge LED: Green-ready, Red- Battery packs Self-Test button battery low Scan trigger access opening PW40 Printer Quick Start Guide... -
Page 4: Before Using Your Printer For The First Time
(one for each pack) Charging the Lithium Ion Batteries S The printer battery charges in about three hours. S Depending on the charger you are using, you can charge the mobile computer battery, workboard battery or both. PW40 Printer Quick Start Guide... - Page 5 This printer has a built in low battery detector. When the print- er’s battery voltage is low, the printer beeps three times, indicat- ing a Low Battery Warning. This only happens if the printer is awake. PW40 Printer Quick Start Guide...
-
Page 6: Paper Loading
Paper Loading Out of Paper The PW40 Printer sounds two quick beeps when it runs out of paper. If the printer is out of paper, the printer suspends opera- tion until paper is present and the lever is down. The printer continues to communicate with the mobile computer as long as it does not “time out.”... - Page 7 You will need about two inches of paper coming out of the mechanism. 8 Lower the cover while placing the extra paper though the tear bar. 9 Close Latch Cover and tear off extra paper. PW40 Printer Quick Start Guide...
-
Page 8: Printer Self-Test
“LOC” shows whether a font is Resident (R) or Downloaded (D). “CPI” shows characters per inch. “DESCRIPTION” describes the graphic. “NAMES” give the “Easy Print” name, the Line Printer name, and the hexadecimal equivalent of that name. PW40 Printer Quick Start Guide... -
Page 9: Replacing The Battery
3 Push down on the battery near the battery lock tabs. 4 Charge the new battery. Center battery support posts Battery removal tabs (one on each side) Battery packs PW40 Printer Quick Start Guide... -
Page 10: Using Your Printer
PW40 Printer using Wireless Printing Serial/Wireless Mode The PW40 comes to you as a serial mode printer. To switch the mode to Wireless Printing it is necessary to toggle the mode via the self-test function of the printer. - Page 11 Note: Dropping your printer can cause a power in- terruption to your wireless printing operation. To ensure that your Wireless Printing is still active, print a self-test. If the radio is off, the self-test turns the radio On. PW40 Printer Quick Start Guide...
-
Page 12: Maintenance And Troubleshooting
Note: If the battery is depleted, it may take 5-10 minutes of charging before the printer can print a self-test. 2 Make sure the paper is properly installed (with lever closed). 3 Turn the print head knob to ensure that paper is not jammed. PW40 Printer Quick Start Guide... - Page 13 Pull out the fuse. If the elements in the fuse appear broken, replace the fuse. Programming Problems Refer to the Intermec Portable Printers Technical Reference Manu- al (p/n: 978-018-001) Section 4 for more details OR call the Intermec Technical Support 1-800-755-5505 for assistance.
-
Page 14: Specifications
Characters Full IBM and international character sets Protocol Easy Print Protocol for Bar Codes, Stored Graph- ics, Rotated Fonts. Power 1350 mAh Li Ion cell pack Warranty One year, includes print head. Extended warranty available. PW40 Printer Quick Start Guide... -
Page 15: Global Services And Support
(1) year from date of shipment. This one year warranty applies to the PW40 Printer only. The warranty on the battery pack is 90 days from date of shipment. - Page 16 Corporate Headquarters 6001 36th Avenue West Everett, Washington 98203 tel 425.348.2600 fax 425.355.9551 www.intermec.com PW40A0B140 Printer Quick Start Guide-April, 2003 *962018020B* 962018020B PW40 Printer Quick Start Guide...
