Elite Industries EL-902 Assembly Instructions

Thank you for purchasing this Elite product. You will need the following tools:
Phillips Head Screw Driver • Straight Blade Screw Driver • Rubber Padded Hammer or Mallet
Assembly Instructions

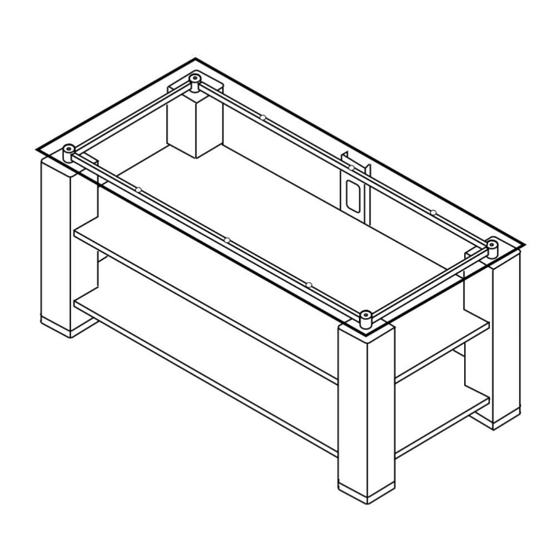

45" WIDE TV STAND, AUDIO/VIDEO COMBINATION UNIT
OVERALL DIMENSIONS: 21" H x 45" W x 21
EL-902
(A rich, deep brown-black, wood-grain finish)
EL-952
: Gray Melamine
PARTS
1. Glass Top
2. Wooden Shelf (2 identical)
3. Support Rail (2 identical)
4. Leg A (2 identical, Front Left, Rear Right)
5. Leg B (2 identical, Front Right, Rear Left)
6. Metal Frame
7. Wire Management Channel
Hardware for unit assembly
A
B
8
Connecting
Bolts
C
D
8
Wooden
Dowels
E F
4
1-3/16" Bolts for
Metal Frame
G
H
6
Self-Adhesive
Spacer Disk for
2" Screw for Bottom
under Glass Top
J
4
11/16" Screw for
Wire Management
FOR PARTS & CUSTOMER SERVICE. PLEASE CALL 1-800-ELITE-48
CUSTOMER SERVICE HOURS EASTERN TIME 8:45 AM - 4:45 PM M-F
: Wenge Melamine
EL-992
: Black Ash Melamine
8
Camlocks
1
Hex Key
Tool
4
Plastic Glass
Cushion
• Carefully read and follow these instructions for assembly.
• Please handle parts carefully, some parts may be heavy and can have sharp edges – we rec-
4
ommend possibly using cloth protective gloves for extra protection.
• To protect the unit and your flooring surface we recommend working on a padded or carpeted
area, you may also use the open box the unit came in for this purpose.
Support Rails
• For proper construction & integrity/assembly and for TV weight support and safety, all connec-
tions need to be sufficiently tight. However, do not over-tighten connections to the point of
stripping screw threadings. Parts are designed to fit together tightly, however, avoid excessive
force but rather align & fit panels together methodically and with patience.
• For some heavy or large units, it may be recommended for 2 people to work together on this
assembly.
• Please read additional important safety information at the end of this instruction manual.
• We urge you to keep this manual with your unit for future reference.
PLEASE DO NOT RETURN UNIT TO STORE
3
/
"D
4
5
3
2
4
IMPORTANT NOTES & CAUTIONS/WARNINGS
3
21 / "
4
21"
2
5
45"
1
7
6
4
3
