SPRAY GUN
SETUP &
ADJUSTMENTS
a good start is halfway to success.

Advertisement

loading
Need help?

Need help?

Do you have a question about the WS-PRIMER and is the answer not in the manual?

Questions and answers

Related Manuals for Anest Iwata WS-PRIMER

Summary of Contents for Anest Iwata WS-PRIMER

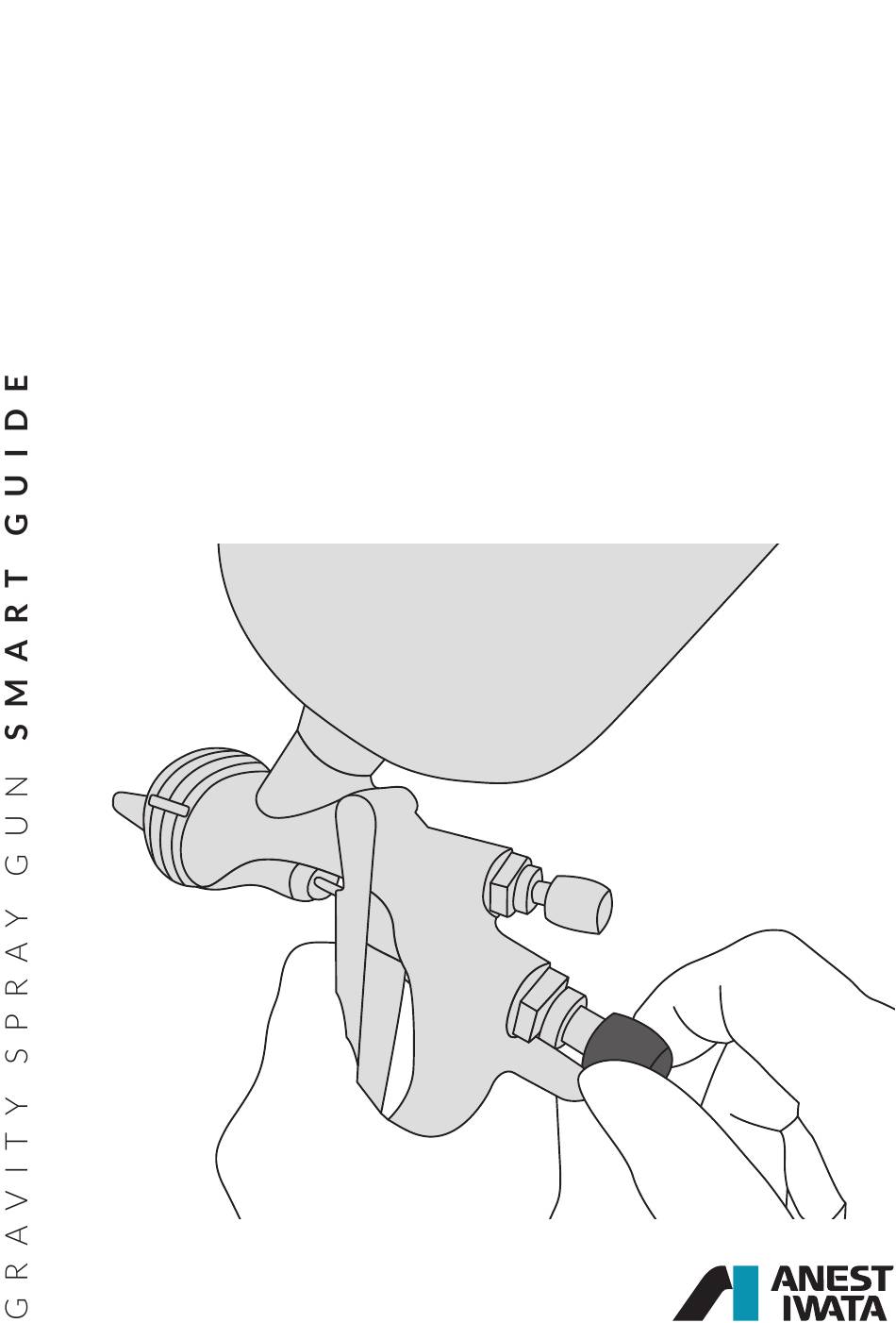

  • Page 1 SPRAY GUN SETUP & ADJUSTMENTS a good start is halfway to success.
  • Page 2 01. UNPACK Unpack the spray gun and make sure that the product has not been damaged during transportation and that all the contents are included the packaging. 02. CLEAN & CONNECT *Clean the fluid passages of the gun before the first use to remove any residue of oil. (*Refer to Cleaning Guide) Connect Pressure Gauge and/or air nipple to the air inlet port of the gun.
  • Page 3 Firmly assemble the gravity cup to the pressure of the gun. spray gun fluid nipple. 03. WEAR PROTECTIVE GEARS IMPORTANT! During all fases of setup and operation procedures, always wear proper body and re- spiratory protection such as: ANEST IWATA safety glasses, mask and gloves.
  • Page 4 04. PREPARE PAINT Make sure your paint is mixed before using it. Prepare and dilute paint corresponding to paints TDS (technical data sheet). Check the correct viscosity of the paint as Fit the paint filter in the gravity cup. recommended by the paint manufacturer.
  • Page 5 Pour paint into the gravity cup by filtering it by an appropriate strainer to eliminate all impurities. 05. SETUP PRESSURE Fully open the pressure regulator for the Check the functionality of the air filterunit. spray gun and set the correct air pressure on the gauge of the filter unit.
  • Page 6 06. PRESSURE ADJUSTMENT STANDARD Fully open the air adjustment on the spray While pulling the trigger, make sure the gun. pressure is set correctly on the external air pressure regulator and corresponding to the technical data sheet. 07. FLUID OUTPUT ADJUST Use the fluid output adjustment to fine-tune fluid delivery, affecting trigger travel.
  • Page 7 08. PATTERN ADJUSTMENT Use the fan pattern adjustment to either achieve a flat or a round fan pattern. Turn the pattern adjustment knob clockwise to achieve a round fan pattern. Turn the pattern adjustment knob counter-clockwise to achieve a flat & thin fan pattern.
  • Page 8 TO AVOID A SPLIT FAN PATTERN When working with a flat & thin fan pattern you can use the fan pattern adjustment to finetune it. Turn the pattern adjustment knob clockwise. TO AVOID AN OVAL FAN PATTERN Turn the pattern adjustment knob counter-clockwise...
  • Page 9 09. TEST & SPRAY 100 ~ 250 mm Set the spray distance from the gun to the Test spray (proceed as recomended by the workpiece, as near as possible within the paint manufacturer) range of 100 - 250 mm. Proceed with the painting operations ac- cording to the manufacturer’s instructions.
  • Page 10 Get help with ANEST IWATA SUPPORT www.anest-iwata-coating.com/support/...
