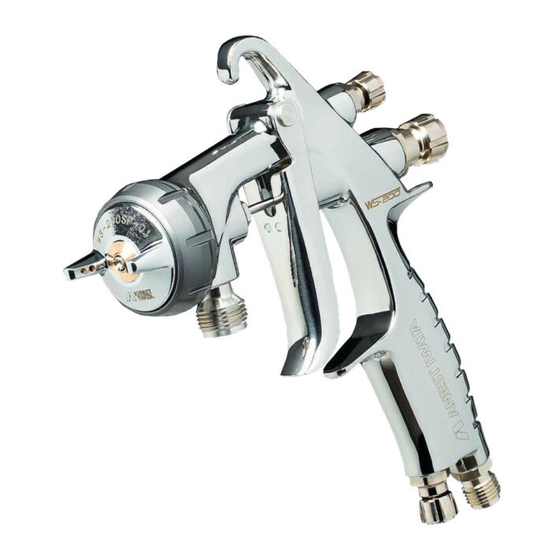

Anest Iwata WS-200 SP Use And Maintenance Instructions
Pressure spray gun series ws-200
Hide thumbs
Also See for WS-200 SP:
- Use & maintenance instruction manual (52 pages) ,
- Use and maintenance instruction manual (9 pages)
Related Manuals for Anest Iwata WS-200 SP
Summary of Contents for Anest Iwata WS-200 SP
- Page 1 USE and MAINTENANCE INSTRUCTION MANUAL WS-200 SP PRESSURE • Split Nozzle SPRAY GUN Series WS-200 FT • Flat Tip Nozzle...
-
Page 2: Technical Specification
Be sure to observe warnings and cautions in this instruction manual. If not, it can cause paint ejection and serious bodily injury by drawing organic solvent. This ANEST IWATA pressure spray guns complies to ATEX regulations 2014/34/EU. Protection level: II 2 G X Suitable for using Zones 1 and 2. -
Page 3: Safety Warning
IF SOMETHING GOES WRONG, IMMEDIATELY STOP OPERATION AND FIND THE CAUSE. Do not use again until you have solved the problem. NEVER USE SPARE PARTS THAT ARE NOT ANEST IWATA ORIGINALS. USE NEUTRAL CLEANER: pH value shall be 6 to 8, otherwise could cause corrosion. -
Page 4: Box Contents
WS-200SP | WS-200FT Pressure Spray Guns 4. BOX CONTENTS WHEN RECEIVING THE SPRAY GUN, MAKE SURE THAT IT HAS NOT BEEN DAMAGED DURING TRANSPORT OR STORAGE AND ALSO CHECK THAT ALL THE FOLLOWING CONTENTS ARE INSIDE THE BOX. TWISTED BRUSH ø 10 mm SPRAY GUN UNIVERSAL SPANNER BRUSH... -
Page 5: Manual Cleaning Procedure
WS-200SP | WS-200FT Pressure Spray Guns 7.1 MANUAL CLEANING PROCEDURE CAUTION THE FLUID PASSAGES OF THE GUN, MUST BE CLEANED THOROUGHLY AFTER EACH USE, ESPECIALLY AFTER USE WITH BI-COMPONENT PAINTS. INCOMPLETE CLEANING CAN CAUSE DEFECTIVE PATTERN SHAPE. NEVER SOAK AIR CAP SET (1) IN CLEANER FOR AN EXTENDED PERIOD, EVEN WHEN CLEANING. NEVER USE METAL BRUSH TO CLEAN THE GUN. -
Page 6: Problems Causes And Remedies
WS-200SP | WS-200FT Pressure Spray Guns Reassemble air valve (9), air valve spring (10) and fluid adj. guide TRIGGER SET (16): To disassemble trigger set (16), unscrew hex- agon socket buttom bolt (18) by using hex. 2.5 mm allen wrench set (11) together. -
Page 7: Spare Parts List
WS-200SP | WS-200FT Pressure Spray Guns 8.1 INSPECTION AND REPLACEMENT STANDARD WHERE TO INSPECT REPLACEMENT PART Each hole passage of air cap set (1) and fluid nozzle set (2-1). Replace air cap or fluid nozzle if they are crushed or deformed. Packings and O'rings. - Page 8 ANEST IWATA Deutschland GmbH Dubai - UNITED ARAB EMIRATES Leipzig - GERMANY info@anest-iwata-me.com info@anest-iwata.de www.anest-iwataeu.com www.anest-iwata.de ANEST IWATA France S.A. ANEST IWATA Motherson Coating Equipment Ltd. Saint Quentin Fallavier, Lyon - FRANCE Noida - INDIA info@anest-iwata.fr sales@aim.motherson.com www.anest-iwata.fr www.motherson.com/anest-iwata-motherson.html ANEST IWATA U.K. Ltd.
