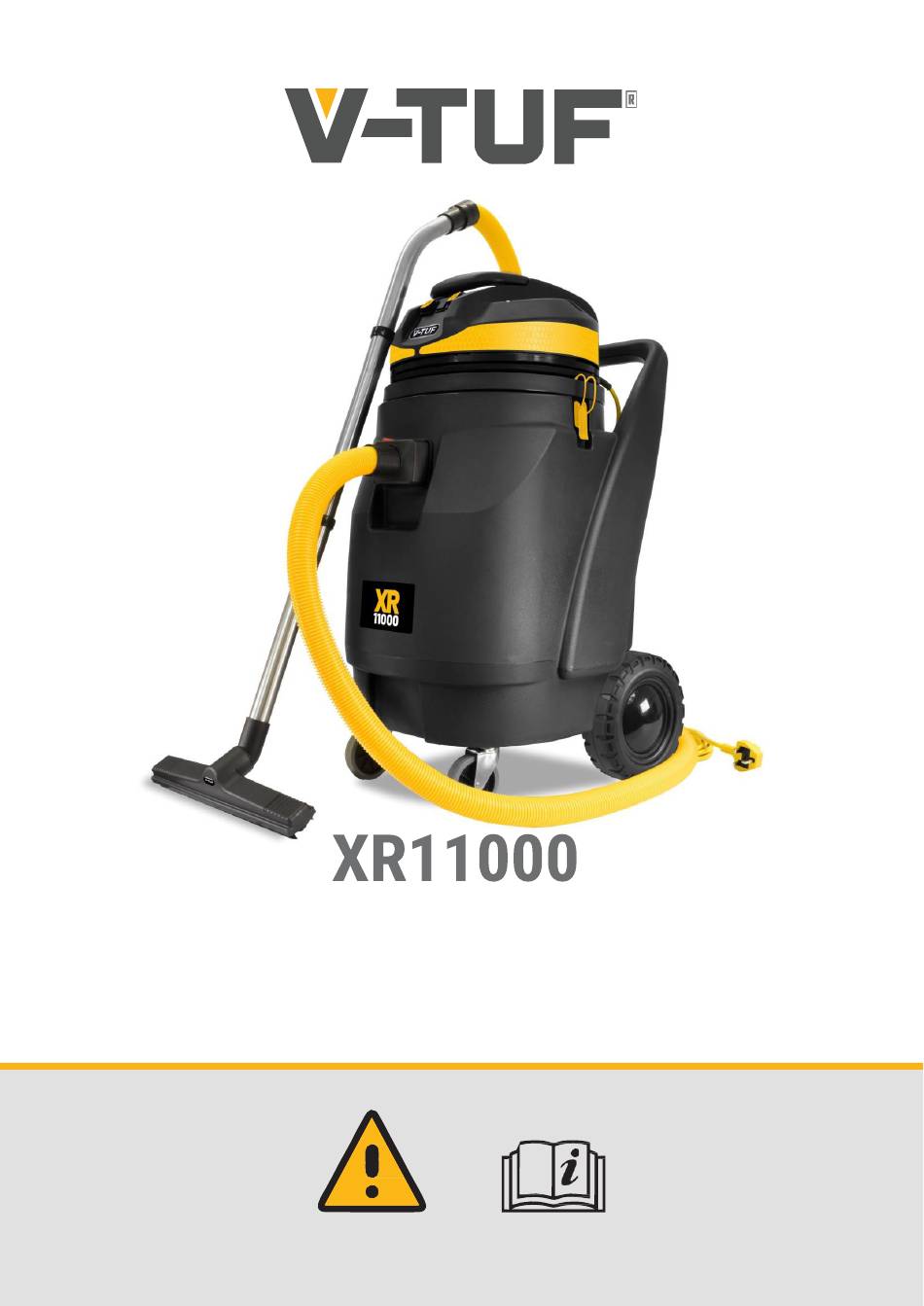

V-TUF XR11000 Operator's Manual

High performance wet & dry industrial vacuum cleaner
Hide thumbs Also See for XR11000:

Advertisement

Table of Contents

Version 240724 – This supersedes and should be used instead of all previous versions.
HIGH PERFORMANCE WET & DRY
INDUSTRIAL VACUUM CLEANER
OPERATOR MANUAL
Please read this manual before using the XR11000
All Errors & Omissions Excused – Specification May Change Without Notice – Please Refer to www.v-tuf.co.uk for the latest version

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XR11000 and is the answer not in the manual?

Questions and answers

Related Manuals for V-TUF XR11000

Summary of Contents for V-TUF XR11000

  • Page 1 Version 240724 – This supersedes and should be used instead of all previous versions. HIGH PERFORMANCE WET & DRY INDUSTRIAL VACUUM CLEANER OPERATOR MANUAL Please read this manual before using the XR11000 All Errors & Omissions Excused – Specification May Change Without Notice – Please Refer to www.v-tuf.co.uk for the latest version...
  • Page 2 VACUUM CLEANER- VTVS8000(5M) WND/2 TUBE SET - 38MM STAINLESS STEEL 3 PIECE WAND SET V-TUF PROFESSIONAL BIO384WD FLOOR HEAD - V-TUF 38MM VACUUM CLEANER 420MM Wet & Dry C/W WHEELS VTVS038 ROUND BRUSH - V-TUF 40MM FITS XR11000 VTVS032 CREVICE TOOL - V-TÜF 40mm - FITS XR11000 VTVS021XLR Filter Basket –...
  • Page 3 Follow these steps BEFORE USE For dry, non- hazardous material, For wet, non- hazardous material, foam ensure the HEPA filter is correctly fitted. filter is fitted. Ensure the head is correctly fitted and the clips secure. For dry, non- hazardous material, ensure the HEPA filter is fitted. Ensure that the drain hose bung is Ensure the tank empty cap is fitted and correctly fitted and sealed.
  • Page 4 Fit the hose to the tank. Clicks in and swivels Floor Cleaning - Fit wand elbow Floor Cleaning - Fit wand extensions Floor Cleaning - Fit floor head Crevice tool - Fit to the hose Round Brush – Fit to hose...
  • Page 5 MAMMOTH XR11000 For use with the gutter / high level cleaning kit Fit hose with grey 51mm cuff Fit 51mm Elbow Fit extention poles Ensure Suction Gate is closed...
  • Page 6 MAMMOTH XR11000 Add extension poles to your desired length Fit 135 Angled Cuff head Tighten Thumb Screw 2(Nm). Fit gutter cleaning tool/head Tighten Thumb Screw 2(Nm).
  • Page 7 MAMMOTH XR11000 VTVS1021 XR11000 HEAD HANDLE KIT CABLE PROTECTION KIT XR11000 WIRING KIT...
  • Page 8 MAMMOTH XR11000 VTVS1006 KIT VTVS1008 KIT...

  • Page 9: Bypass Motor

    MAMMOTH XR11000 Pos. Cod. Q.ty Description VTVS1001 MOTOR BASE VTVS1002 SHOCK COVER VTVS7422Y SWITCH - SEALED & YELLOW V-TUF 'VRS' TYPE 10AMP VTVS1004 GASKET VTVS1005 MOTOR CABLE x TOP/WET VTVS1006 VALVE VTVS1007 FAIRLEAD VTVS1008 SCREW VTVS1009 SEPTUM FILTER VTVS1010 SELF-TAPPING SCREW 4,8x19 SP...
  • Page 10 MAMMOTH XR11000 VTVS1070 KIT VTVS1077 KIT VTVS7165M KIT VTVS1079 KIT VTVS1071N REAR WHEELS AND AXEL KIT OLD AXEL KIT VTVS1071...
  • Page 11 NET SAC MAMMOTH XR11000 Cod. Parts VTVS1021 XR11000 HEAD HANDLE KIT 21, 32 VTVS1005 KIT VTVS1010 KIT VTVS1007 KIT XR11000 CABLE PROTECTION KIT 7, 13, 14 VTVS1022 KIT 24, 25 VTVS1012 KIT XR11000 WIRING KIT 12, 14 VTVS1010 KIT VTVS1015 KIT...

  • Page 12: General Information

    Thank you for purchasing V-TUF product. V-TUF is focused on research and development to make sure you are fully satisfied with our products. Please read this manual carefully and follow the instructions to ensure you get the best performance from this machine.

  • Page 13: Installation

    INSTALLATION Ensure that the machine has the correct filtration system fitted properly for the substance you are going to clean: • For dry non-hazardous material, ensure the HEPA filter is fitted, secure and sealed. • For wet non hazardous material, ensure that the blue sponge filter is fitted •...

  • Page 14: Maintenance

    Ensure that the machine has an up to date electrical and functional safety test and that nothing has been moved or replaced since the test was carried out. Technical Information Model XR11000 Capacity 110 Litres 110 & 240 Volts Working Voltage...

  • Page 15: Safety Precautions

    All repairs on V-TUF products should be done by an authorised service representative. If the machine shuts down, be sure to turn off the machine and unplug it before troubleshooting.
  • Page 16 2. Do not vacuum inflammable combustion substance (e.g.: hot ashes), explosive and toxic substances, electrostatic or substances that are dangerous for health. EXPLOSION OR POISONING HAZARD 3. Do not rest the vacuum inlet on or move this close to delicate parts of the body (eyes, ears, mouth, etc.).
  • Page 17 3. Drop drainpipe to an area you wish to dispose if the liquid. (See below) Please note: You cannot run the vacuum motors while doing this. USE OF THE DEVICE ATTENTION The vacuum cleaner must not be used for hazardous dusts including flammable and/or explosive material.

  • Page 18: Troubleshooting

    TROUBLESHOOTING PROBLEM PROBABLE CAUSE PROBABLE SOLUTION The machine does not No current. Check main fuse, power cord, start plug and outlet. The machine Because of overheating, After the machine suddenly stops the thermal protection turns cooled down, you can turn the Machine off.

  • Page 20: Maintenance Log

    MAINTENANCE LOG EQUIPMENT HISTORY SHEET Unit ____________________ Serial Number: __________________ Model: ____________________ Log all electrical and product safety and performance tests Date of last test Date of next test Inspected By Satisfactory Defects and or Date Approx Hours Run (Company, print name, sign) YES/NO remarks...
  • Page 21 NOTES...
  • Page 22 NOTES...
