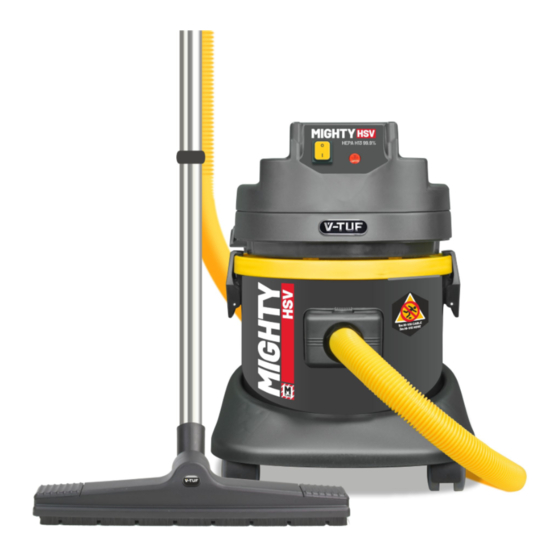

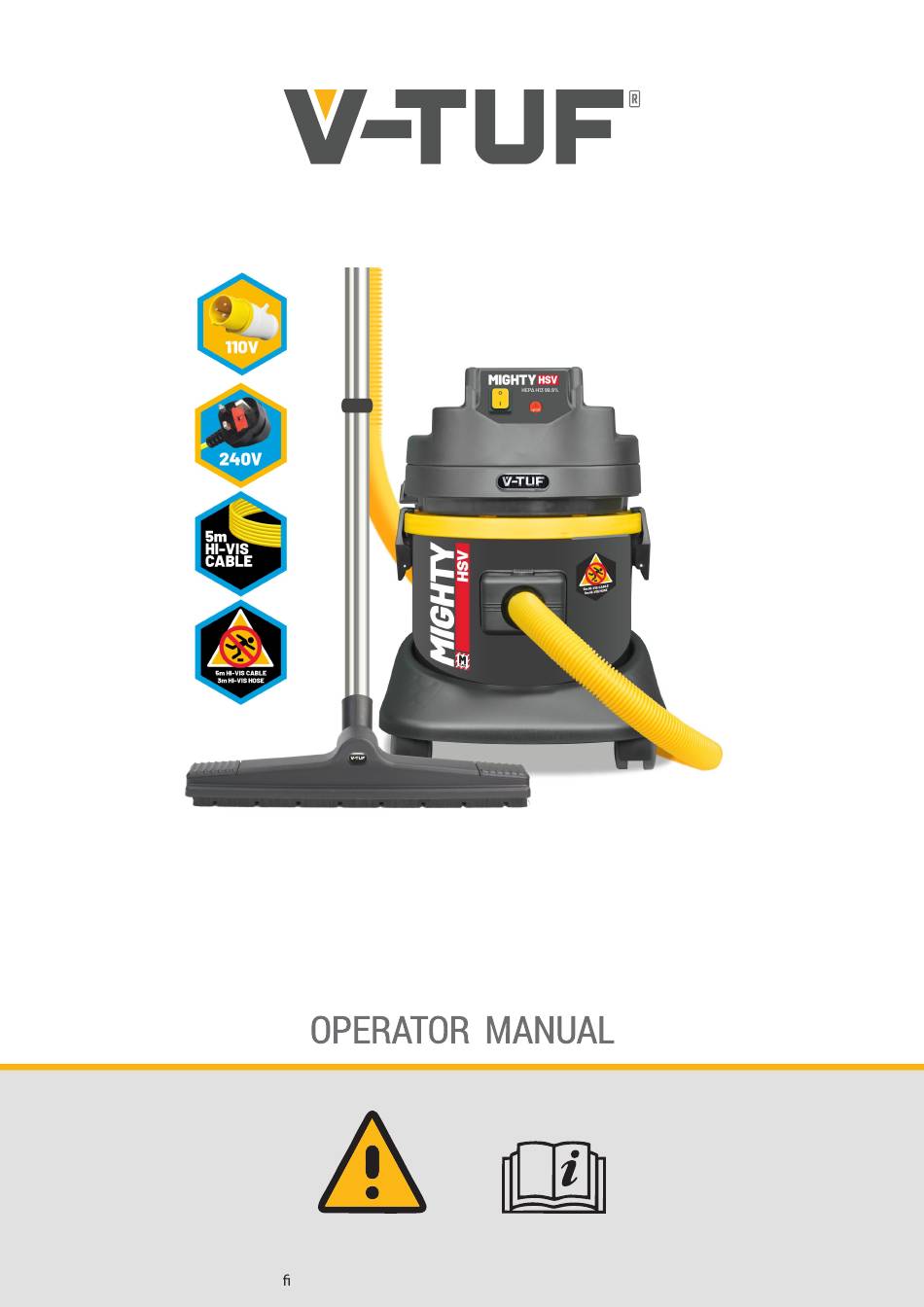

- Page 1 MIGHTY HSV 110 & 240 M-CLASS INDUSTRIAL VACUUM CLEANER Please read this manual before using the MIGHTY HSV All Errors & Omissions Excused – Speci cation May Change Without Notice – Please Refer To www.v-tuf.co.uk For the Latest Version...
- Page 2 VTVS7023 HOSE - 3M 32mm Yellow Vacuum Hose With End To Fit WND/1 - for NEW MIGHTY, NEW MIDI FLOOR HEAD - 420MM WIDE Wet & Dry WITH WHEELS V-TUF 32 MM BIO324WD WND/1 V-TUF PROFESSIONAL TUBE SET - 32MM STAINLESS STEEL 3 PIECE...
- Page 4 Pos. Cod. Q.ty Description VTVS7471 Black Single stage base motor a. VTVS7615 - 240v motor Motor Mono By-Pass PC25 Slim b. VTVS7616 - 110v motor VTVS7452 "L" Gasket h=10 mm VTVS7482 Motor Plastic Spacer H=27 VTVS7486 Black Motor Holder VTVS7432 Pump Bracket VTVS7445 Filter MTP30 D160x120x88...
- Page 5 Pos. Cod. Q.ty Description VTVS7473 Black Plastic Barrel H=250 VTVS7164 Gasket Inlet Ø48 VTVS7165M Inlet Ø48 VTVS7491 Barrel Hook VTVS7514 Blind Rivet 4,8x17 VTVS7512 Self tapping screw 5x25 ZN VTVS7007 Polyester Bag 21 l...
- Page 6 Pos. Cod. Q.ty Description VTVS7474 black trolley 400x420 VTVS7496 Pivot wheel Ø50...
-
Page 7: General Information
3. Make sure that the electrical data of the appliance, shown on the label, corresponds to those of the mains supply. 4. The appliance must only be used with V-TUF accessories and spare parts as these ensure safe and perfect operation. - Page 8 4. If necessary, clean the tank and in any case, never leave dust or liquid residues in the tank for long periods of time. IMPORTANT INFORMATION Never use the machine if you are unsure, or become uncertain due to any faults of any kind, including those not mentioned in this manual.
-
Page 9: Safety Precautions
SAFETY PRECAUTIONS Caution: what to do 1. All power conduction parts must be protected against water. SHORT-CIRCUIT RISK. 2. All services or maintenance performed on the appliance must always be done with the plug disconnected from the power supply. 3. Operation with a residual current circuit breaker provides extra protection for the operator (I_n=30 mA). -
Page 10: Safety Indications
VACUUM CLEANER – CLASS M SAFETY INDICATIONS Operator safety This manual is to be considered as an integral part of the general user manual and provides the necessary instructions for the special class M dust vacuum cleaners. Therefore the supplied general instruction booklet must be read beforehand. In addition to the user instructions and the current regulations in the country of use, the sector’s recognised technical regulations for the safe and appropriate use of this equipment must also be followed. -
Page 11: Descriptive Information
Maintenance, cleaning and repair Only perform the maintenance work described in this booklet on the equipment. In case of uncertainty, contact the dealer or an authorized service centre. Before performing any cleaning or maintenance operations upon the device, remove both the electrical and compressed air power supply cables. - Page 12 MAINTENANCE: FILTER REMOVAL ATTENTION Be careful to not stir up dusts when performing cleaning operations, filter checks or filter replacements. Use a protective mask. Or a V-TUF filter cleaning box. Replacing the filter bag Undo the head clips and remove the head.
- Page 13 Remove the used filter bag and close the inlet with the tag as shown below. Dispose of the bag in the correct manner. Fit the new filter bag, making sure that the bag’s membrane seal fits perfectly over the internal slot of the tank inlet and that the bag fits neatly around the edge of the tank internal.
-
Page 14: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE PROBABLE SOLUTION The machine does not No current. Check main fuse, power cord, start plug and outlet. The machine suddenly Because of overheating, After the machine has cooled stops the thermal protection turns down, you can turn the power the Machine off (feature only on again and begin to use the available on extraction... - Page 15 NOTES...
