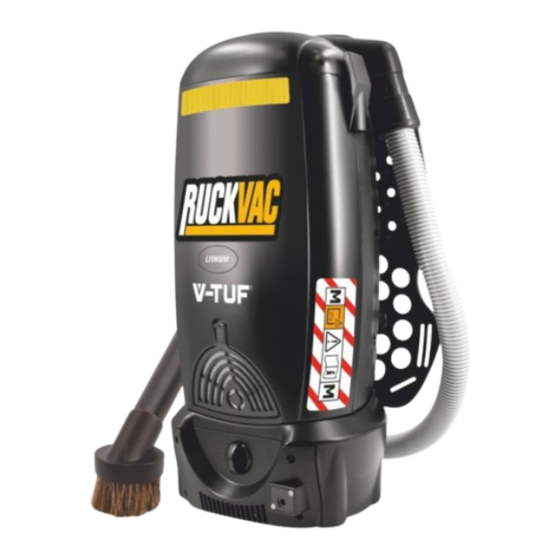

- Page 1 ® CORDLESS BACKPACK VACUUM CLEANER OPERATOR MANUAL Please read this manual before using the RUCKVAC Cordless Vacuum Cleaner...
-
Page 3: Important Safety Instructions
Authorised V-TUF Repair Center for inspection and repair. 6. DO NOT allow the vacuum to be used as a toy. Pay close attention when using the vacuum near children. - Page 4 GETTING TO KNOW YOUR RUCKVAC BATTERY POWER BACKPACK VACUUM...
- Page 5 1. Main Unit 14. Dusting Brush 2. Exhaust Grill Port 15. Crevice Tool 3. On/Off Power Switch 16. Pet Hair Remover 4. Canister Lid Tabs 17. Exhaust Grill 5. Waist Band 18. Blower Port 6. Shoulder Straps 19. Combination floor 7.
- Page 6 OPERATING INSTRUCTIONS ASSEMBLY IMPORTANT: Do not use the vacuum without the HEPA filter and HEPA dust bag in place. 1. Close the power with switch and remove the flexible hose. 2. To open the canister lid press on the canister lid tabs on each side of the unit and lift canister lid.
- Page 7 Attaching the Flexible hose to The vacuum The flexible hose should be connected to the Vacuum before strapping the unit on. 1. To connect the flexible hose into the hose inlet, insert the threaded end of the flexible hose into the hose inlet and turn counter-clockwise until it locks into place. (Fig 6) 2.
- Page 8 USING THE ATTACHMENTS ⚫ Dusting Brush The dusting brush is used for the furniture ⚫ Crevice Tool Use for radiators, crevices, corners, baseboards and between cushions. (Fig10) ⚫ Pet Hair Remove Brush The pet hair remove brush is used for upholstery. The unique surface makes it an excellent tool for removing unwanted pet hair.
- Page 9 Air Driven Turbo brush (Optional) The efficiency of your air driven turbo brush depends on the bristle brush rotating at high speed. Strong air suction is needed to accomplish this. In order to ensure that maximum air suction is maintained please read the following instructions: 1.
- Page 12 6. Replace the shake-out bag into the vacuum. 7. To replace the HEPA dust bag holder, flip the holder and press tab until it clicks. 8. Replace the canister lid onto the vacuum. Warning: Never over fill the HEPA Dust bag – replace when bag is full and clean the shake-out bag and filter each time the HEPA dust bag is replaced.
- Page 13 Using Your Vacuum 1. Ensure the battery pack is correctly assembled in the vacuum 2. Connect hose and telescopic tube if desired. 3. Correctly place shoulder straps on each shoulder and secure the waist band with hook and loop strips. (Fig.16) Caution: If the waist band and both shoulder straps are not properly and securely in place the unit could fall off...
-
Page 14: How To Charge The Battery Pack
Cleaning the HEPA Pre-Motor Filter Important, Please Note: The HEPA pre-motor filter will stop most of the microscopic dust particulates and airborne allergens from re-entering the air you breathe. It has been tested and certified up to 99.99% filtration efficiency of all particles as small as 0.3 microns- many times smaller than a human hair! Because of this incredible filtration performance, the HEPA pre-motor filter will accumulate many fine dust particles that are difficult to see. - Page 15 Basic information and warning for V-TUF Battery and Charger are contained below. For detailed usage and warning information, read the HOW TO CHARGE THE BATTERY PACK carefully before using this unit. 1. Use only the V-TUF Charger and V-TUF Battery Pack.
- Page 16 Cutting of the ground wire or using a cord that is not equipped with a ground wire will void the warranty on the unit, and V-TUF will accept NO liability associated with the unit.
-
Page 17: Specifications And Parts
Keep them clear to allow proper ventilation. CHARGING LITHIUM POLYMER BATTERY PACKS Lithium Polymer batteries deliver fade-free power for their entire run time. The V-TUF vacuum will not gradually lose power due to decreasing battery charge. The vacuum will... - Page 18 If the charger’s light is not lit at any point during the charging process, remove the battery pack from the charger to avoid damaging the product. DO NOT insert another battery. Contact the authorised V-TUF service agent with any issues. BATTERY PROTECTION FEATURE The 37-volt Lithium Polymer batteries are designed with features that protect the Lithium Polymer cells and maximize battery life.
- Page 19 Fig 22 Fig 24 Fig 23...
- Page 20 V-TUF.COM ®...
