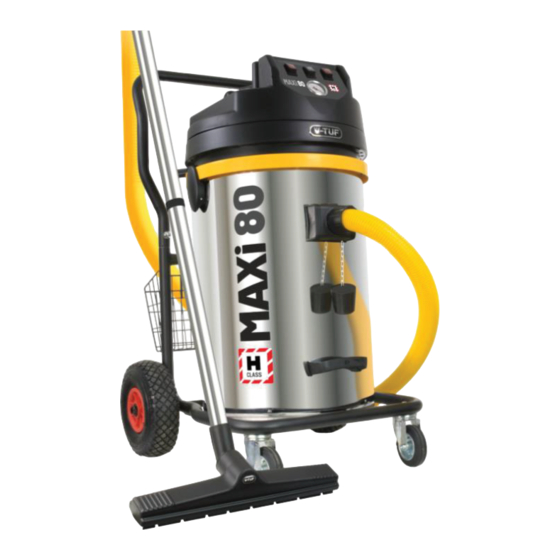

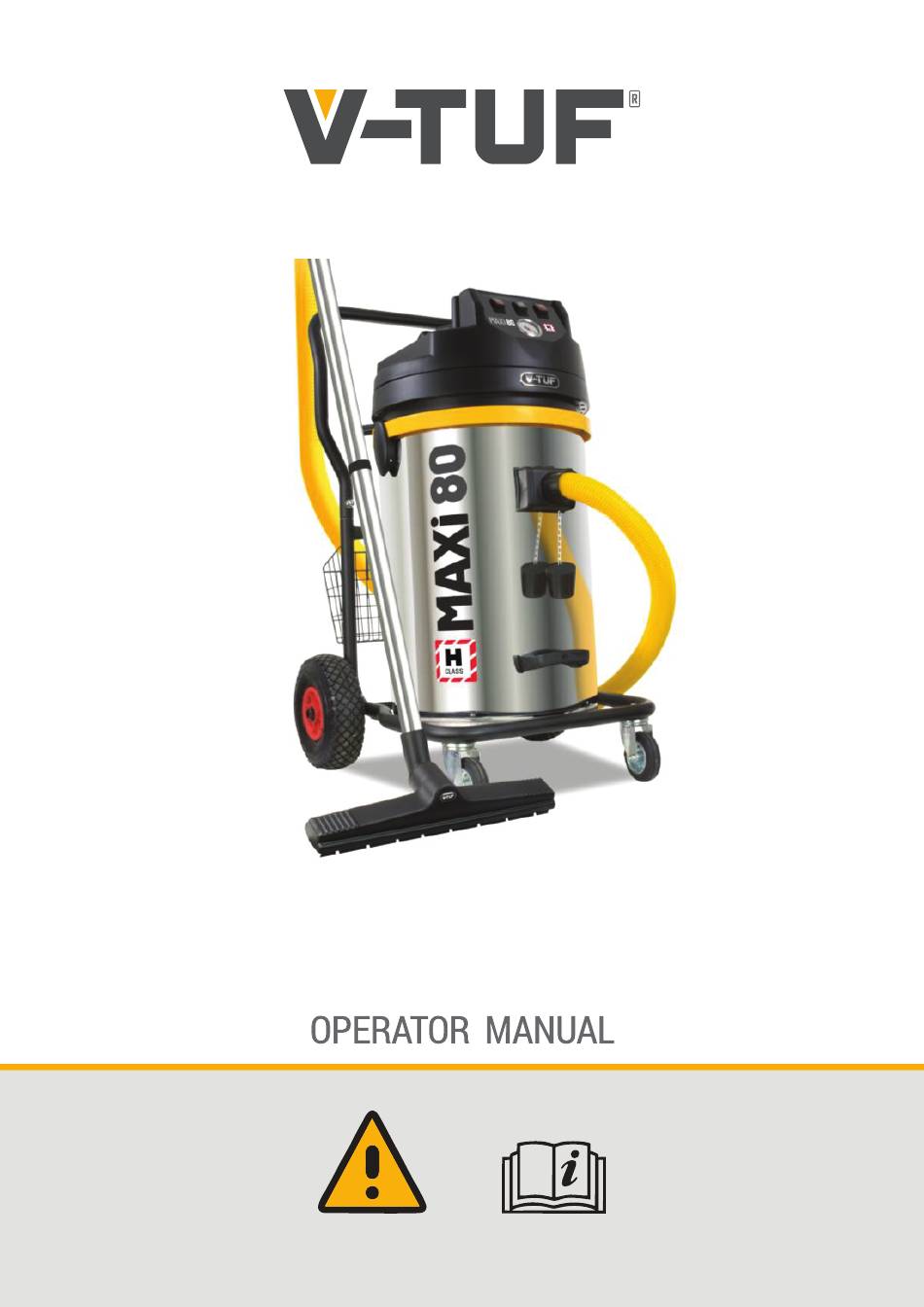

- Page 1 MAXI H 80L H-CLASS INDUSTRIAL VACUUM CLEANER Please read this manual before using the MAXI H 80L...
-
Page 3: General Information
3. Make sure that the electrical data of the appliance, shown on the label, corresponds to those of the mains supply. 4. The appliance must only be used with V-TUF accessories and spare parts as these ensure safe and perfect operation. -
Page 4: Maintenance
Never use the machine if you are unsure, or become uncertain due to any faults of any kind, including those not mentioned in this manual. Technical Information Model MAXI H 80L Capacity 80 Litres 110 & 240 Volts Working Voltage... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS Caution: what to do 1. All power conduction parts must be protected against water. SHORT-CIRCUIT RISK. 2. All services or maintenance performed on the appliance must always be done with the plug disconnected from the power supply. 3. Operation with a residual current circuit breaker provides extra protection for the operator (I_n=30 mA). -
Page 6: Safety Indications
VACUUM CLEANER – CLASS H SAFETY INDICATIONS Operator safety This manual is to be considered as an integral part of the general user manual and provides the necessary instructions for the special class H dust vacuum cleaners. The supplied general instruction booklet must be read beforehand. In addition to the user instructions and the current regulations in the country of use, the sector’s recognised technical regulations for the safe and appropriate use of this equipment must also be followed. - Page 7 The device’s electrical and compressed air outlets The electrical or pneumatic outlets of the devices are to be used by single power tools that are being used in conjunction with the vacuum cleaner. Ensure that the power tool is correctly connected and that the power requirement is no larger than the limitations of the vacuum cleaner.
-
Page 8: Descriptive Information
Maintenance, cleaning and repair Only perform the maintenance work described in this booklet on the equipment. In case of uncertainty, contact the dealer or an authorized service centre. Before performing any cleaning or maintenance operations upon the device, remove both the electrical and compressed air power supply cables. - Page 9 MAINTENANCE: FILTER REMOVAL ATTENTION Be careful to not stir up dusts when performing cleaning operations, filter checks or filter replacements. Use a protective mask. Or a V-TUF filter cleaning box. Replacing the filter bag Undo the head clips and remove the head.
- Page 10 Remove the used filter bag and close the inlet with the tag as shown below. Dispose of the bag in the correct manner. Fit the new filter bag, making sure that the bag’s membrane seal fits perfectly over the internal slot of the tank inlet and that the bag fits neatly around the edge of the tank internal.
- Page 11 TAV.2...
- Page 12 MAXI 80 METAL TROLLEY Pos. Cod. Q.ty Description VTVS8150 METAL TROLLEY ( PART A ) VTVS8151 CLOSED LOCK NUT M10 VTVS8152 HEXAGONAL HEAD METRIC SCREW M10X40 VTVS8153 METAL TROLLEY ( PART B ) WHEELION WHEEL Ø260MM VTVS8154 STAINLESS STEEL PIN Ø29X40MM VTVS8151 CLOSED LOCK NUT M10 VTVS8155...
- Page 13 MAXI 80 9 bis...
- Page 14 MAXI 80 HEAD Pos. Cod. Q.ty Description VTVS7513 SELF TIPPING SCREW 5X30 ZN VTVS8100 HANDLE E.2 L=229MM VTVS7422Y RED LIGHT SWITCH 2P VTVS7525 BLACK SWITCH FOR FILTER SHAKER VTVS8101 BLACK COVER Ø440 WITH 3 HOLES AND VACUUM GAUGE HOLE VTVS8103 VACUUM GAUGE Ø50MM VTVS8104 FOAM NOISE Ø370 E.2...
- Page 15 MAXI 80 HEAD Pos. Cod. Q.ty Description VTVS7491 COMPLETE SPRING HOOK BLACK VTVS8124 STAINLESS STEEL TANK H=580 VTVS7512 SELF TIPPING SCREW 5X25 TCZN VTVS7164 GASKET INLET Ø48 VTVS7165m INLET Ø48 VTVS8125 COMPLETE HANDLE 120MM...
-
Page 16: Troubleshooting
TROUBLESHOOTING PROBLEM PROBABLE CAUSE PROBABLE SOLUTION The machine does not No current. Check main fuse, power cord, start plug and outlet. The machine suddenly Because of overheating, After the machine has cooled stops the thermal protection turns down, you can turn the power the Machine off (feature only on again and begin to use the available on extraction...
