INSTALLATION GUIDE
URBAN MAINS PRESSURE SHOWER MIXER UFCSMC
SYSTEM REQUIREMENTS
Equal Pressures Operating Pressures
Operating Hot Water Temperatures
Operating Cold Water Temperatures
Do not plug outlet when testing.
This shower mixer can be line tested up 1500kPa (217.6psi)
This mixer is recommended for equal pressure water supply only.
To ensure the optimum performance and customer satisfaction please adhere to the following:
·
Flush out all pipe work prior to installation.
·
Maximum hot water temperature: 60°C. If the water temperature is likely to exceed 60°C an approved tempering valve must be fitted.
·
In accordance with good plumbing practice, filters should be fitted to supply lines to eliminate damage to the ceramic cartridge from
suspended solids.
·
AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of appliances, taps &
fittings, cause excessive noise in the system and recommend that the pressure limiting valve (PLV) be fitted.
Failure to comply with the above will void all warranties.
WHAT IS IN THE PACK
Faceplate + O-Ring
Handle
BEFORE INSTALLATION
Pipework MUST be purged before connecting to the mixer
Mixer Assembly
MINIMUM
20kPa (2.9psi)
1500kPa (217.6psi)
55° C
5° C
8g x 32 Dome Head
Square Drive
Stainless Steel Screws
Allen Key
MAXIMUM
60° C
N/A
Grub Screw
Handle Cap
Advertisement
Related Manuals for Felton UFCSMC
Summary of Contents for Felton UFCSMC

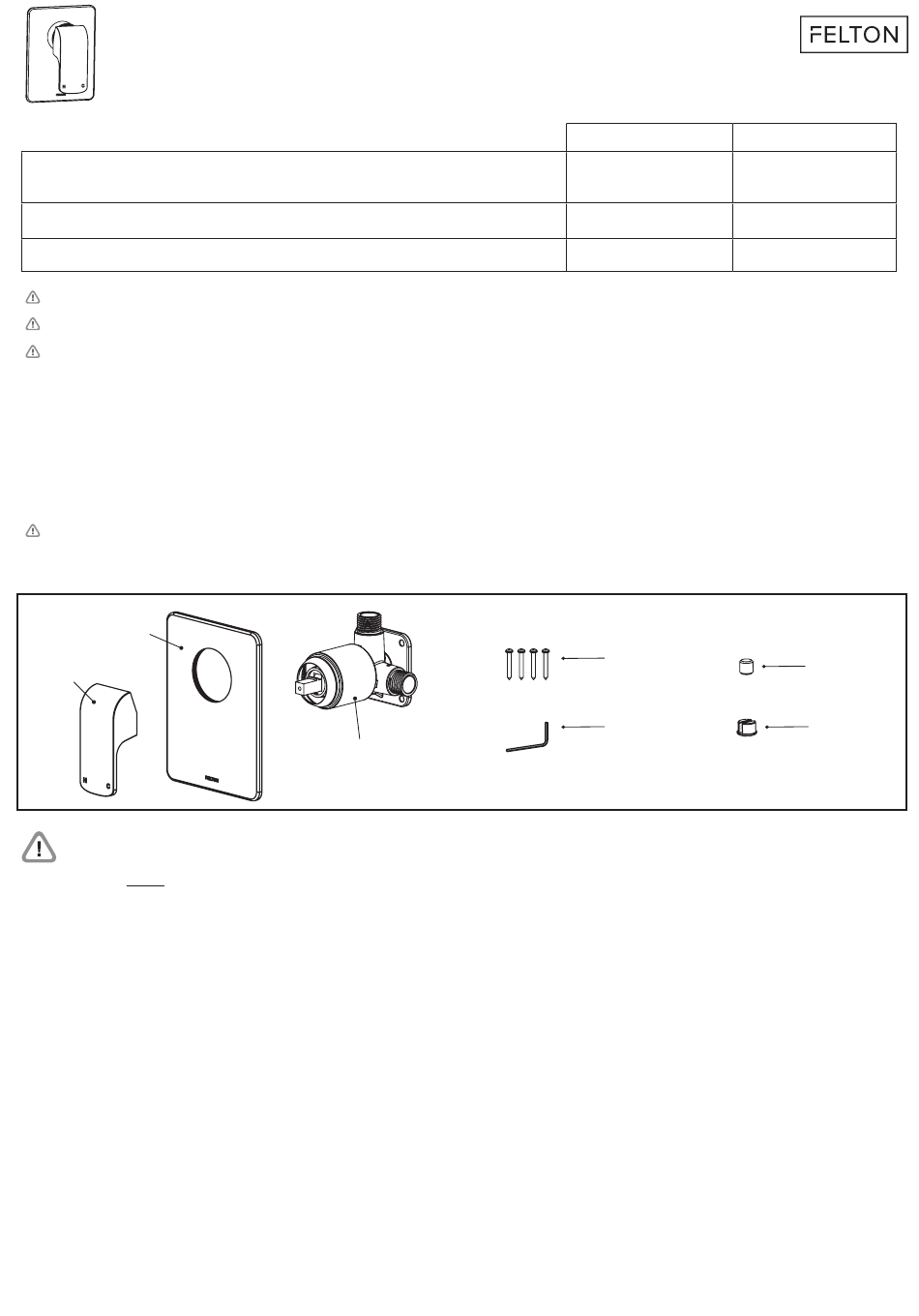

- Page 1 INSTALLATION GUIDE URBAN MAINS PRESSURE SHOWER MIXER UFCSMC SYSTEM REQUIREMENTS MINIMUM MAXIMUM Equal Pressures Operating Pressures 20kPa (2.9psi) 1500kPa (217.6psi) Operating Hot Water Temperatures 55° C 60° C Operating Cold Water Temperatures 5° C Do not plug outlet when testing.
