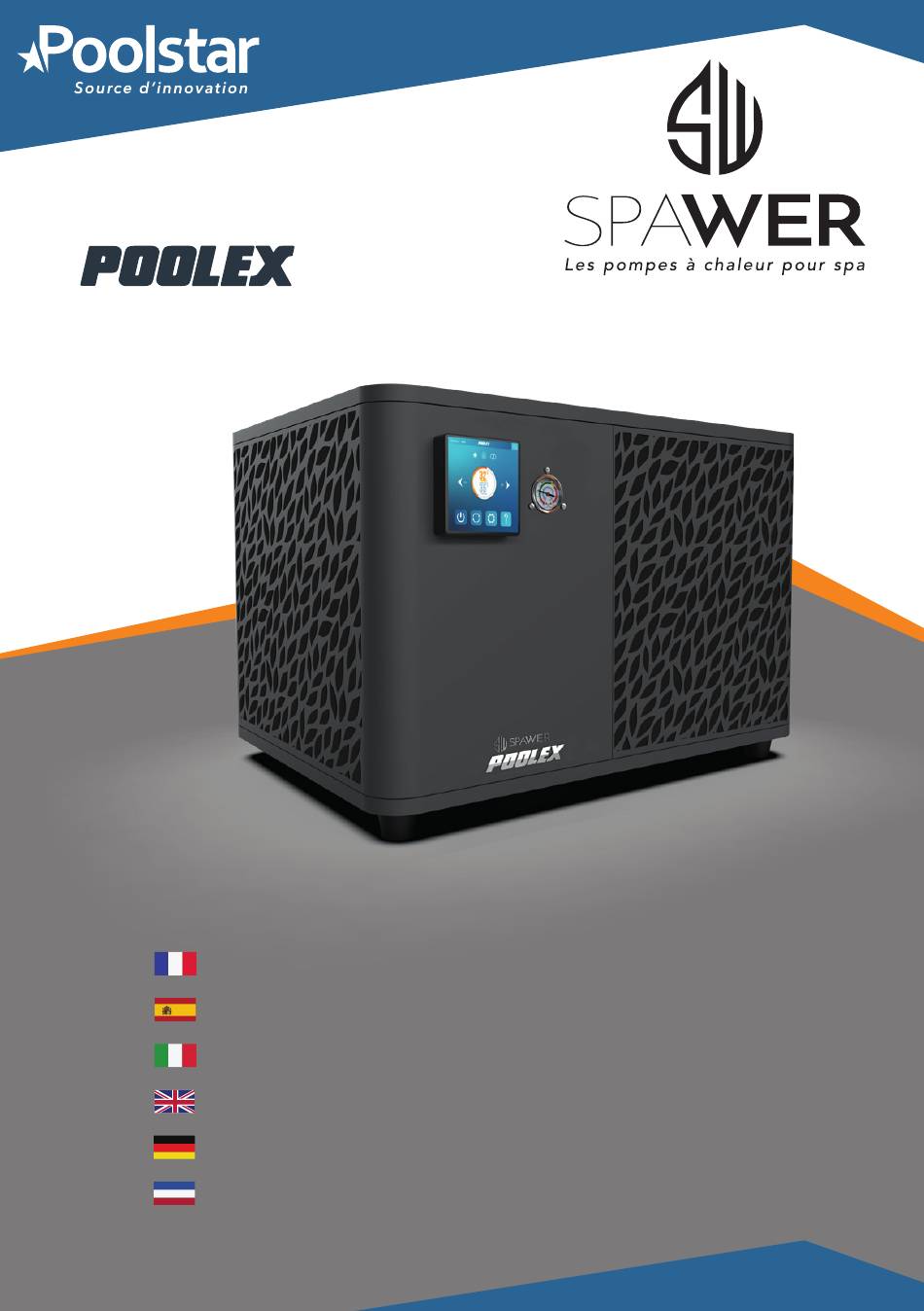

- Page 1 ICE SPA Manuel d’installation et d’utilisation Manual de usuario y instalación Manuale d’installazione e d’uso Installation and user manual Installations und Gebrauchsanleitung Installatieen en gebruikershandleiding www.poolstar.fr...
- Page 2 ACKNOWLEDGEMENTS Dear customer, Thank you for your purchase and your trust in our products. Our products are the result of years of research in the design and manufacture of heat pumps for pools. Our goal is to deliver high-quality products with exceptional performance. We took great care to put together this manual so you can get the most out of your Poolex heat pump.
-
Page 3: Please Read Carefully
⚠ ⚠ PLEASE READ CAREFULLY These installation instructions form an integral part of the product. They must be provided to the installer and kept in a safe place by the user. If you lose this manual, please visit our website: www.poolex.fr The indications and warnings contained in this manual should be carefully read and understood as they provide important information regarding the safe handling and operation of the heat pump. -
Page 4: Table Of Contents
CONTENTS 1. General information 1.1 General terms and conditions of delivery 1.2 Safety instructions 1.3 Water treatment 2. Description 2.1 Operating limits 2.2 Package contents 2.3 General characteristics 2.4 Technical characteristics 2.5 Product dimensions 2.6 Exploded view 3. Installation 3.1 Location 3.2 Installation diagram 3.3 Hydraulic connection 3.4 Electrical connection... -
Page 5: General Information
1. GENERAL INFORMATION General terms and conditions of delivery All products and packaging, even those delivered carriage paid, travel at the risk of the recipient. Persons responsible for accepting delivery of the device must perform a visual inspection to make a note of any damage that may have occurred during transportation (refrigeration circuit, casing, electric box, frame). -
Page 6: Water Treatment
1. GENERAL INFORMATION When in use Do not touch the vent during operation due to the risk of serious injury. Do not leave the heat pump within reach of children due to the risk of injury caused by the heat exchanger fins. -
Page 7: Description
2. DESCRIPTION Operating limits For the heat pump to operate normally, the ambient air temperature must be between -25°C and 43°C. Your hot tub must be correctly insulated to enable the ICE SPA heat pump to function in an optimal way. -
Page 8: Technical Characteristics
2. DESCRIPTION Technical characteristics ICE SPA Heating power (kW) 5,38~2,50 26°C Consumption (kW) 1,01~0,18 Water 26°C COP (Coeff. of performance) 5,33~13,89 Heating power (kW) 4,18~2,01 15°C Consumption (kW) 0,92~0,27 Water 26°C COP (Coeff. of performance) 4,54~7,44 Heating power (kW) 3,70~1,81 15°C Consumption (kW) 1,2~0,3... -
Page 9: Product Dimensions
2. DESCRIPTION Product dimensions Dimensions in mm... -
Page 10: Exploded View
2. DESCRIPTION Exploded view Terminal block Fan motor support Electrical box Fan motor Electrical box cover Manometer Top cover Control panel Evaporator Control panel cover Back panel Front panel 4-way valve Wind deflector Electrical expansive valve Fan blade Compressor Titanium heat exchanger EVI tank Water flow switch Base plate... -
Page 11: Installation
3. INSTALLATION To install the heat pump the hydraulic circuit and the power need to be connected. Location Standard NF C 15-100 recommends installing the heat pump at least 2.5 meters from the pool. However, thanks to the differential circuit breaker, you can also choose to install it closer: Leave at least 1.50 m in front of the heat pump and 30 cm of empty space to the sides and rear of the heat pump. -
Page 12: Installation Diagram
3. INSTALLATION Installation diagram TO THE SPA Circulation Control unit pump Filter Electric heater Spa heater control relay Wall plug 230V 16A 10mA The filter located upstream of the heat pump must be regularly cleared so that the water in the system is clean, thus avoiding the operational problems associated with dirt or clogging in the filter. -
Page 13: Operation
3. INSTALLATION Operation Use conditions For the heat pump to operate normally, the ambient air temperature must be between -25°C and 43°C. Advance notice Prior to starting the heat pump, please: Check that the equipment is secure and stable. ... -
Page 14: Use Of Control Panel
4. USE OF CONTROL PANEL Control panel Familiarize with the display before you start. The control panel can be moved using the extension lead. Use the extension cord to store the control panel away from rain and light. Shade will ensure better visibility of the screen. Under no circumstances should the control panel be exposed to moisture. -
Page 15: Choice Of Operating Mode
4. USE OF CONTROL PANEL Choice of operating mode The selected operating mode appears here as an icon. Heating mode Select heating mode if you want to heat up the tub water with the heat pump. Cooling mode Select heating mode if you want to cool the tub water with the heat pump. -
Page 16: Settings Menu
4. USE OF CONTROL PANEL Settings menu From the Home screen, press the "Settings" button to access this menu. Button Function Modify user settings Change temperature unit Modify factory settings Set time and date Set heater or circulation pump (optional) Set display brightness Activate wifi and pair your heat pump... -
Page 17: Modify User Settings
4. USE OF CONTROL PANEL 2. Modify user settings In the "Settings" menu, use the "User" button to access the user settings interface. Then click on the input box of the parameter you wish to modify. The current value of each parameter is displayed on this screen in the corresponding input boxes. -
Page 18: Modify Factory Settings (Not Recommended)
4. USE OF CONTROL PANEL 3. Modify factory settings (not recommended) In the "Settings" menu, use the "Factory" button to access the factory settings interface. You will be prompted for a password. Contact your after-sales service: changing the factory settings without authorisation from the after-sales service will invalidate the warranty. WARNING : This operation is used to assist servicing and future repairs. -
Page 19: Set Heater Or Circulation Pump (Optional)
4. USE OF CONTROL PANEL 4. Set heater or circulation pump (optional) In the "Settings" menu, use the "Special" button to access the following interface: Switch e-heater relay to manual mode Switch circulation pump relay to manual mode Parameters L8 and L10 must be enabled to use this menu. If L8 = 0, the circulation pump relay cannot be activated manually. -
Page 20: Consult Heat Pump Data
4. USE OF CONTROL PANEL Consult heat pump data Button Function Temperature readings From the home screen, press the "Query" button access this menu. System values Error history Hardware and software versions 1. Temperature readings In the "Query" menu, use the "Temperature" button to view the following temperature readings. -
Page 21: Error History
4. USE OF CONTROL PANEL 3. Error history In the "Query" menu, use the "Error info" button to consult the history of errors encountered. This screen displays a list of previously encountered errors. Each line shows an error in the format "date + time + error code". -
Page 22: Use Of Optional Control Relays
5. USE OF OPTIONAL CONTROL RELAYS Using the SPA heater control relay (optional) Poolex Relay Terminal block 11 240VAC 30A SPA heater 125VAC 30A controller 250VAC 15A cos Ø = 0.4 Insulate the connectors inside the spa in a waterproof connection box elements not provided) The SPA heater SPAWER driver system consists of a power relay (230V50Hz / 30A) which plugs into the heater phase wire (between the SPA heater controller output and the heater... -
Page 23: Using The Circulation Pump Control Relay (Optional)
5. USE OF OPTIONAL CONTROL RELAYS Using the circulation pump control relay (optional) Poolex Relay Terminal block 11 240VAC 30A 125VAC 30A 250VAC 15A cos Ø = 0.4 Circulation pump Insulate the connectors inside the spa in a waterproof connection box elements not provided) This relay is controlled by the heat pump control box either automatically or manually. -
Page 24: Use Via Mobile Application
For more information, refer to the “Help” section of the “Smart Life” app. The “Smart Life” app and services are provided by Hangzhou Tuya Technology. The company Poolstar, owner and distributor of the Poolex brand, cannot be held responsible for the operation of the "Smart Life" application. -
Page 25: Setting Up The Application
6. USE VIA MOBILE APPLICATION Setting up the application WARNING : Before you begin, make sure you have downloaded the «Smart Life» app, connected to your local WiFi network, and that your heat pump is electrically powered and running. You’ll need to create a «Smart Life» account to control your heat pump remotely. If you already have a Smart Life account, please log in and go directly to step 3. - Page 26 6. USE VIA MOBILE APPLICATION Step 3 (recommended): Add an object by clicking “...” and then “Add Object”. Enter a name («Pool» for example), then click “Done”. Step 4: Now add a device to your “Pool”. Click “Add” or “+” and then “Large appliances...” followed by “Water heater”. At this point, leave your smartphone on the “Add”...
-
Page 27: Pairing The Heat Pump
6. USE VIA MOBILE APPLICATION Pairing the heat pump Step 1: Now start the pairing. Choose your home WiFi network, enter the WiFi password and press “Confirm”. WARNING : The «Smart Life» application only supports 2.4Ghz WiFi networks. If your WiFi network uses the 5GHz frequency, go to the interface of your home WiFi network to create a second 2.4GHz WiFi network (available for most Internet boxes, routers and WiFi access points). -
Page 28: Controlling
6. USE VIA MOBILE APPLICATION Controlling 1. User interface Current pool temperature Temperature set point Current operating mode Switch the heat pump on/off Change the temperature Change operating mode Set the operating range 2. Heat pump operating mode selector You can choose between Auto, Heating or Cooling modes. Available modes Automatic... -
Page 29: About The Settings
6. USE VIA MOBILE APPLICATION 3. About the settings Activating the manual mode (or automatic) for the SPA heater Activating the manual mode (or automatic) for the optional pump Timer 4. Setting up the heat pump operating range Step 1: Create a time schedule, choose the time, the day(s) of the week concerned, and the action (switch on or switch off), then save. -
Page 30: Maintenance And Repairs
7. MAINTENANCE AND REPAIRS Maintenance, servicing and winterizing WARNING : Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning The heat pump housing must be cleaned with a damp cloth. Using detergents or other household cleaning products may degrade the surface of the housing and affect its integrity. -
Page 31: Breakdown And Faults
7. MAINTENANCE AND REPAIRS Under normal conditions, a suitable heat pump can heat up the tub water by 1°C to 2°C per hour. It is therefore normal that you do not feel any difference in temperature at the outlet level when the heat pump is on. A heated tub must be covered and insulated to avoir any heat loss. -
Page 32: Other Problem
7. MAINTENANCE AND REPAIRS Code Anomaly detected Resolution 1. Check the input voltage 2. Check the water flow Compressor over current 3. Check the throttling 4. Check the heat exchange around the heat pump Compressor startup failed Check input voltage 1. -
Page 33: Warranty
Poolstar. The parts under warranty shall be replaced or repaired at the discretion of Poolstar. Faulty parts must be returned to us during the warranty period in order to be covered. The warranty does not cover unauthorized labor or replacement costs. - Page 34 A. Annexe / Apéndice / Appendice / Appendix / Anhang / Bijlage Compressor W V U DC-FAN T1: Discharge temperature T2: Coil temperature T3: Ambient temperature T4: Inlet water temperature T5: Suction temperature RS485 LP: Low press switch WF: Water flow switch Controler CH: Crankcase heater BH: Base plate electrical heater...
- Page 35 ICE SPA A SS I ST ANC E TE C H NI Q UE www.poolex.fr 09-2023 www.poolstar.fr...
