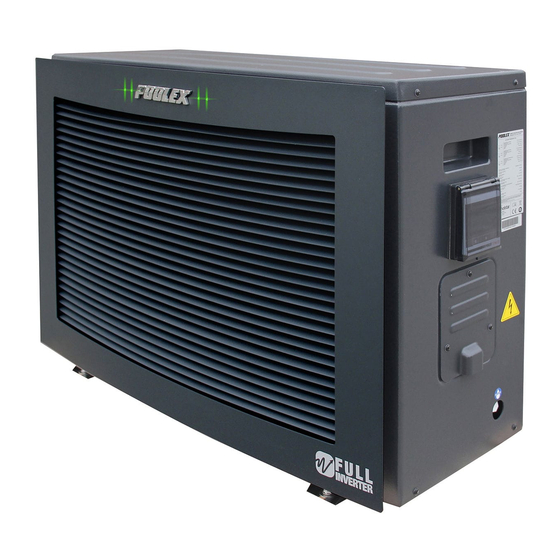

- Page 1 JETLINE PREMIUM FI INSTALLATION AND USER MANUAL for your heat pump www.poolstar.fr...
- Page 2 Warning This heat pump contains a flammable refrigerant R32. Any intervention on the refrigerant circuit is prohibited without a valid authorization. Before working on the refrigerant circuit, the following precautions are necessary for safe work. 1. Work procedure The work must be carried out according to a controlled procedure, in order to minimize the risk of presence of flammable gases or vapors during the execution of the works.
- Page 3 Thank you Dear Customer, Thank you for your purchase and for your confidence in our products. These are the result of many years of research in the field of design and production of heat pumps for swimming pools. Our aim is to provide you with an exceptional high performance quality product.
- Page 4 PLEASE READ CAREFULLY. These installation instructions are an integral part of the product. They must be given to the installer and retained by the user. If the manual is lost, please consult the website: www.poolex.fr The instructions and recommendations contained in this manual should be read carefully and understood since they provide valuable information concerning the heat pump’s safe handling and operation.
-
Page 5: Table Of Contents
Contents 1. General ......................................6 General Terms of Delivery ................................. 6 Safety instructions..................................6 Water treatment ..................................7 2. Description ...................................... 8 Package contents ..................................8 General characteristics ................................8 Technical specifications ................................9 Unit dimensions ..................................10 Exploded view ....................................11 3. -
Page 6: General
1. General General Terms of Delivery All equipment, even if shipped ‘free of carriage and packing’, is dispatched at the consignee’s own risk The person responsible for receiving the equipment must carry out a visual inspection to identify any dam- age to the heat pump during transport (refrigerant system, body panels, electrical control box, frame). -
Page 7: Water Treatment
1. General During use To avoid serious injuries, never touch the fan when it is operating. Keep the heat pump out of the reach of children to avoid serious injuries caused by the heat exchanger’s blades. Never start the equipment if there is no water in the pool or if the circulating pump is stopped. Check the water flow rate every month and clean the filter if necessary. -
Page 8: Description
2. Description Package contents Heat pump Poolex Jetline Premium FI ✔ 2 hydraulic inlet/outlet connectors (50mm diameter) ✔ Extension cable for remote control panel ✔ This installation and user manual ✔ Condensation draining kit ✔ Winter storage cover ✔ 4 anti-vibration pads (fastenings not supplied) ✔... -
Page 9: Technical Specifications
2. Description Technical specifications Poolex Jetline Premium FI 210 Tri Test conditions Heating power (kW) 7.62~1.75 10.21~2.34 13.12~3.02 16.52~3.79 21.01~4.83 28.23~6.49 28.42~6.53 26°C Consumption (kW) 1.10~0.13 1.47~0.17 1.88~0.22 2.38~0.28 3.03~0.36 4.06~0.48 4.08~0.48 Water 26°C INVERTER MODE 13.52~6.91 13.54~6.93 13.61~6.98 13.57~6.95 13.56~6.94 13.57~6.95 13.59~6.96... -
Page 10: Unit Dimensions
2. Description Unit dimensions Dimensions in mm Model Jetline Premium FI 55 / 75 Jetline Premium FI 95 / 125 / 155 Jetline Premium FI 210 / 210 Tri 1084... -
Page 11: Exploded View
2. Description Exploded view 9 10 11 12 1. Aluminum front panel 14. Right structure 2. Air deflector 15. Manometer 3. Fan propeller 16. Right Panel 4. Left panel 17. Control panel 5. Left structure 18. Electrical terminal cover 6. Fan motor 19. -
Page 12: Installation
3. Installation WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. Pre-requirements Equipment necessary for the installation of your heat pump: Power supply cable suitable for the unit’s power requirements. -
Page 13: Installation Layout
3. Installation Installation layout Heat pump Automated treatment system 4-way valve (salt chlorinator, metering pump) Valve 1 Valve 5 Valve 3 Valve 2 Water outlet Water intake Elevating studs Valve 4 Drain Condensation Circulating Filtration plug draining pump FROM THE POOL TOWARDS THE POOL Valves 1, 2 and 3: Bypass valves Valves 4 and 5: Regulating valves... -
Page 14: Hydraulic Connection
3. Installation WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. Hydraulic connection By-Pass assembly Open valve The heat pump must be connected to the pool by Half-open valve means of a By-Pass assembly. - Page 15 3. Installation By-Pass assembly for one heat pump TOWARDS THE POOL Automated treatment system POOL Filtration + Pump FROM THE POOL Half-open valve Open valve By-Pass assembly for more than one heat pump TOWARDS THE POOL Automated treatment system POOL Filtration + Pump FROM THE POOL Half-open valve...
-
Page 16: Electrical Installation
3. Installation WARNING: Installation must be carried out by a qualified engineer. This section is provided for information purposes only and must be checked and adapted if necessary according to the actual installation conditions. Electrical installation To function safely and maintain the integrity of your electrical system, the unit must be connected to a general electricity supply in accordance with the following regulations: Upstream, the general electricity supply must be protected by a 30 mA differential switch. -
Page 17: Electrical Connection
3. Installation Electrical connection WARNING: The heat pump’s power supply MUST be disconnected before any operation. Please comply with the following instructions to electrically connect the heat pump. Step 1: Detach the electrical side panel with a screwdriver to access the electrical terminal block. Step 2: Insert the cable into the heat pump unit by passing it through the opening provided for that purpose. -
Page 18: Wired Remote Control
3. Installation Wired remote control Set temperature Water temperature Defrosting WiFi Operating mode °C °C Button: Clock / Programming Clock Button: Operating mode Button: On / Off Before you start, make sure the filtration pump is running and that water is flowing through the heat pump. -
Page 19: Operating Mode Selector
4. Use Start-up and locking Press the button to switch the heat pump on or off. This button is also used to return to the main interface. When the heat pump is in operation, press the button for 5 seconds to lock or unlock the housing. (The lock is activated automatically after 60 seconds of inactivity). -
Page 20: Choice Of Operating Mode
4. Use Choice of operating mode WARNING: Before starting, ensure that the filtra- tion pump is operating correctly. Step 1 : Go to the main menu by unlocking the control panel. °C °C Étape 2 : Presse the button to switch between the 3 operating modes: Eco Inverter, Boost Inverter, refroidisse- ment. -
Page 21: Clock Setting
4. Use Clock setting Step 1 : Go to the main menu by unlocking the control panel. Step 2 : Push the button to enter the clock setting interface. Clock display flashes. Step 3 : Change the hours using the buttons °C °C Step 4 : Press again... -
Page 22: Activation / Deactivation Of On / Off Groups
4. Use Activation / deactivation of On / Off groups Groups can be activated / deactivated at any time. The setting is as follows: Step 1 : Go to the main menu by unlocking the control panel. Step 2 : Press the button for 5 seconds to enter °C °C... - Page 23 4. Use Table of main parameters N° Description Default value Variation Adjusting the heating temperature 27°C 15 - 40°C Adjusting the cooling temperature 27°C 8 - 28°C Reserved - Do not adjust Adjustment of temperature difference before restart 1°C 1-18°C Stop once the temperature is reached 1=ON ;...
-
Page 24: Operation
5. Operation Operation Conditions of use For the heat pump to operate normally, the ambient air temperature must be between -5°C and 43°C. Recommendations prior to start-up Before activating the heat pump, please: Check that the unit is firmly secured and stable. ✔... -
Page 25: Using The Pressure Gauge
5. Operation Using the pressure gauge The gauge is for monitoring the pressure of the refrigerant contained in the heat pump. The values it indicates can vary considerably, depending on the climate, temperature and atmospheric pressure. When the heat pump is in operation: The gauge’s needle indicates the refrigerant pressure. -
Page 26: Maintenance And Servicing
6. Maintenance and servicing Maintenance and servicing WARNING: Before undertaking maintenance work on the unit, ensure that you have disconnected the electrical power supply. Cleaning The heat pump’s casing must be cleaned with a damp cloth. The use of detergents or other household products could damage the surface of the casing and affect its properties. -
Page 27: Repairs
7. Repairs WARNING: Under normal conditions, a suitable heat pump can heat the water in a swimming pool by 1°C to 2°C per day. It is therefore quite normal to not feel any temperature difference in the system when the heat pump is working. A heated pool must be covered to avoid any loss of heat. -
Page 28: List Of Faults
7. Repairs List of faults Code Anomalies Causes possibles Actions Check your water circuit operation and the opening of the By-Pass Insufficient water in heat exchanger valves Flow sensor malfunction Sensor disconnected or defective Reconnect or replace sensor Protection activated when the ambient temperature is too low and Antifreeze protection No intervention is necessary the unit is on standby... -
Page 29: Recycling
8. Recycling Recycling the heat pump Your heat pump has reached the end of its life and you wish to dispose of it or to replace it. Do not throw it in the rubbish bin. A heat pump must be disposed of separately with a view to its reuse, recycling or upgrading. It contains substances that are potentially hazardous to the environment but which will be eliminated or neutralised by recycling. -
Page 30: Warranty
Poolstar company. The guaranteed parts shall be replaced or repaired at Poolstar’s discretion. Defective parts must be returned to our workshops to be covered during the warranty period. The warranty does not cover labour costs or unauthorised replacements. -
Page 31: Appendices
10. Appendices 10.1 Wiring diagrams... - Page 32 AS S I S TA NC E T E CH N IQ UE www.poolex.fr 04-2020 www.poolstar.fr...
