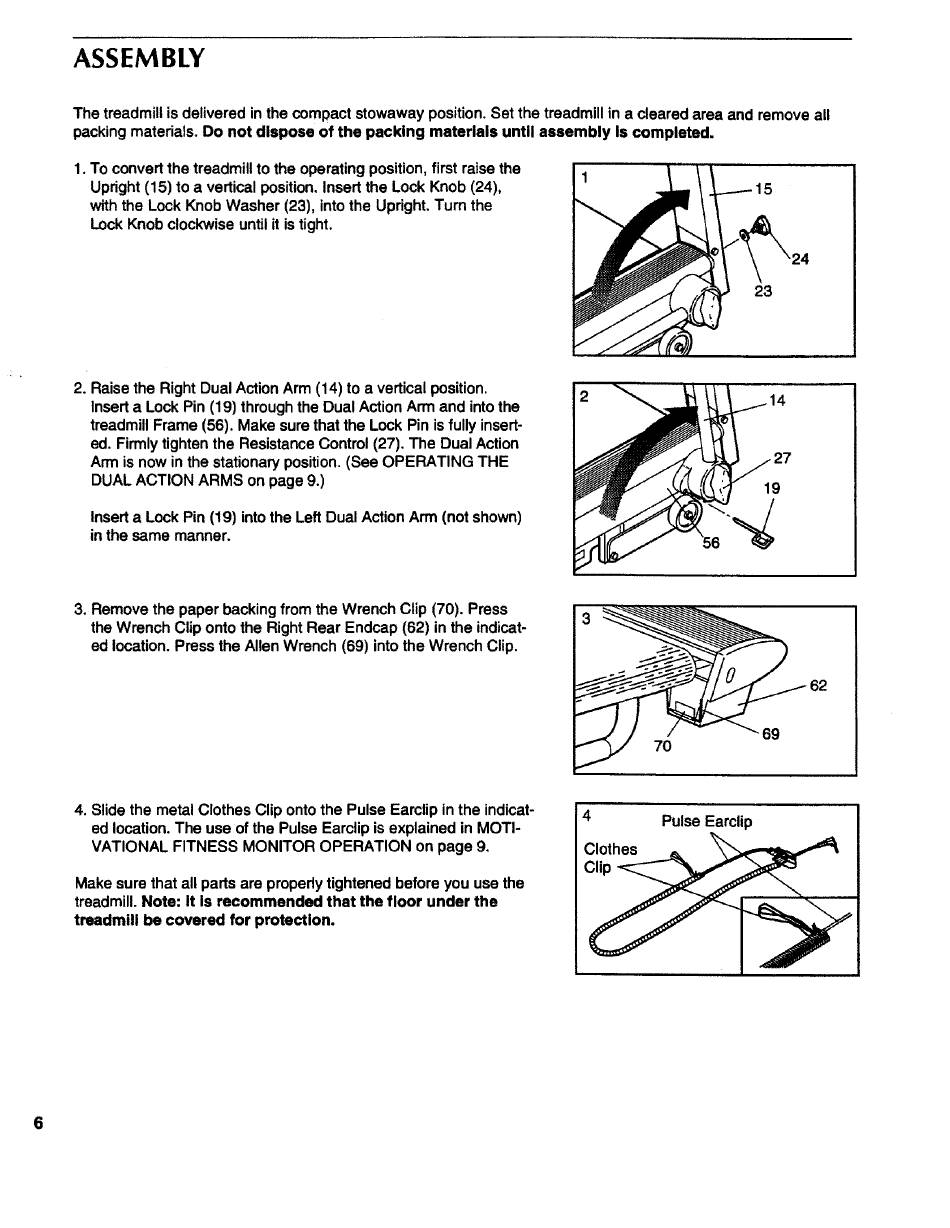

ASSEMBLY
The treadmill is delivered in the compact stowaway position. Set the treadmill in a cleared area and remove all
packing materials. Do not dispose of the packing materials until assembly Is completed.
1. To convert the treadmill to the operating position, first raise the
Upright (15) to a vertical position. Insert the Lock Knob (24),
with the Lock Knob Washer (23), into the Upright. Turn the
Lock Knob clockwise until it is tight.
23
2. Raise the Right Dual Action Arm (14) to a vertical position.
Insert a Lock Pin (19) through the Dual Action Arm and into the
treadmill Frame (56). Make sure that the Lock Pin is fully insert-
ed. Firmly tighten the Resistance Control (27). The Dual Action
Arm is now in the stationary position. (See OPERATING THE
DUAL ACTION ARMS on page 9.)
Insert a Lock Pin (19) intothe Left Dual Action Arm (not shown)
in the same manner.
19
3. Remove the paper backing from the Wrench Clip (70). Press
the Wrench Clip onto the Right Rear Endcap (62) in the indicat-
ed location. Press the Allen Wrench (69) into the Wrench Clip.
69
7O
4. Slide the metal Clothes Clip onto the Pulse Earclip in the indicat-
ed location. The use of the Pulse Earclip is explained in MOTI-
VATIONAL FITNESS MONITOR OPERATION on page 9,
Make sure that all parts are properly tightened before you use the
treadmill. Note: it Is recommended that the floor under the
treadmill be covered for protection.
4
Clothes
Clip
Pulse Earclip
6
