Prior to piping, flush enough and remove chip, cutting oil and dust in tube so that obstruction
wouldn't intrude into positioner.
Confirm specification and working direction of actuator, and mount pipes and
internal feedback unit in accordance with table 2 and 3.

5.Electrical Wiring

5-1 Positioner with terminal box

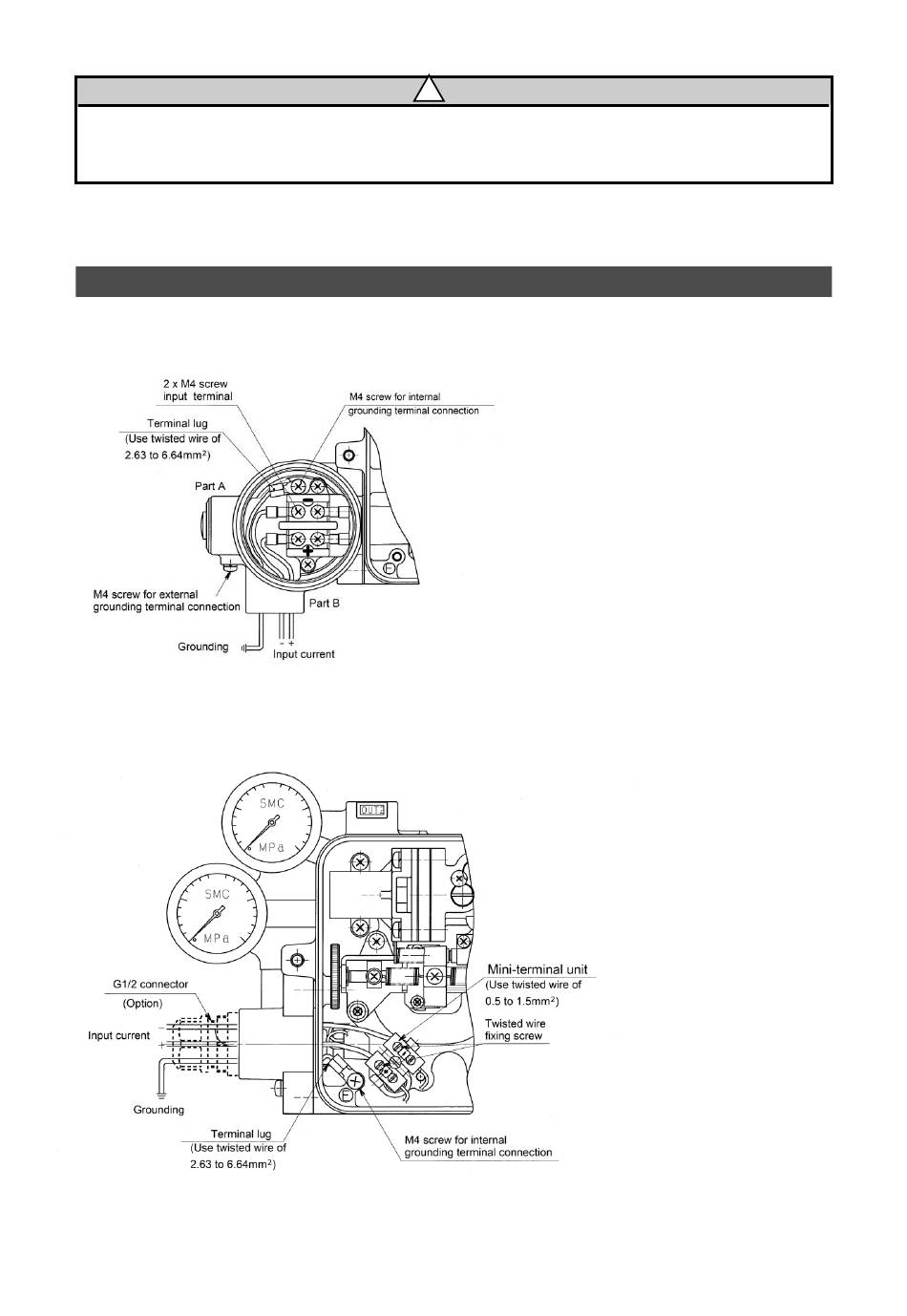

Fig 14.Positioner with terminal box

5-2 Positioner without terminal box

Fig.15 Positioner without terminal box
Fig. 15 Positioner without terminal box
!
Caution
(1) Connect the (+) and (-) output terminals from
the regulator with the (+) and (-) input terminals,
respectively, of the positioner terminal box. The
port diameter at the conduction wire drawing port
is the size of G1/2 parallel screw for piping and
the depth is for a 16.5mm female screw.
(2) Two drawing ports, marked as Part A and Part
B in Fig.14, are provided. Use either one as fitted.
(Part B is used in the figure).
(1)Connect
terminals from the regulator with the (+)
and (-) input terminals, respectively, of
the positioner terminal box. The port
diameter
drawing port is the size of G1/2 parallel
screw for piping and the depth is for a
20 mm female screw.
16
the (+) and (-) output
at the conduction wire
