3.Attaching

(1) Make a space needed for maintenance on the setting area.
(2) Take care that fingers are not pinched during mounting and positioning the cam. Cut
supply pressure and release compressed air in positioner and actuator in advance.
(1) Confirm actuator and positioner are connected properly and tightly.

3-1. Type IP8000

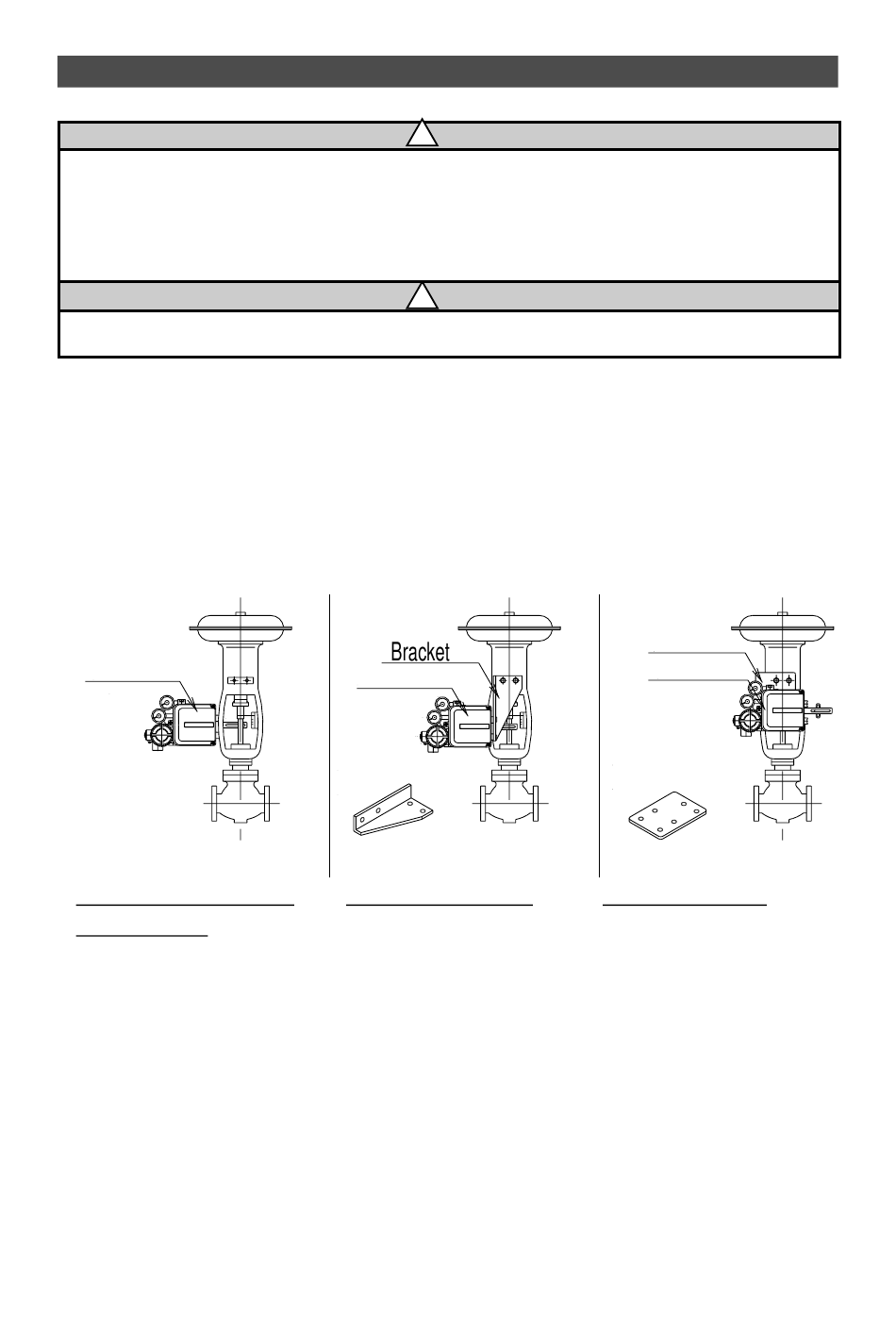

3-1-1 Example of attaching to actuator
The type IP8000 positioner is compatible with Type IP600 and IP6000 in the attaching
pitch. If you are using IP600 and IP6000 already, the bracket for those positioner can
be used to attach IP8000 to the actuator.
Positoiner
Fig.5 Directly attaching to
diaphragm valve
Directly attach using the
screw hole at a side of the
positioner and the screw
hole at the yoke side of
diaphragm.
! Warning
!
Caution
Positioner
Bracket shape
example
Fig.6 L-shape bracket
Attach using the screw
hole at a side of the
positioner and the screw
hole at the front mount of
diaphragm valve.
11
Bracket
Positioner
Bracket shape
example
Fig.7 Front bracket
Attach using the screw
hole at the positioner back
and the screw hole at the
front mount of diaphragm
valve.
