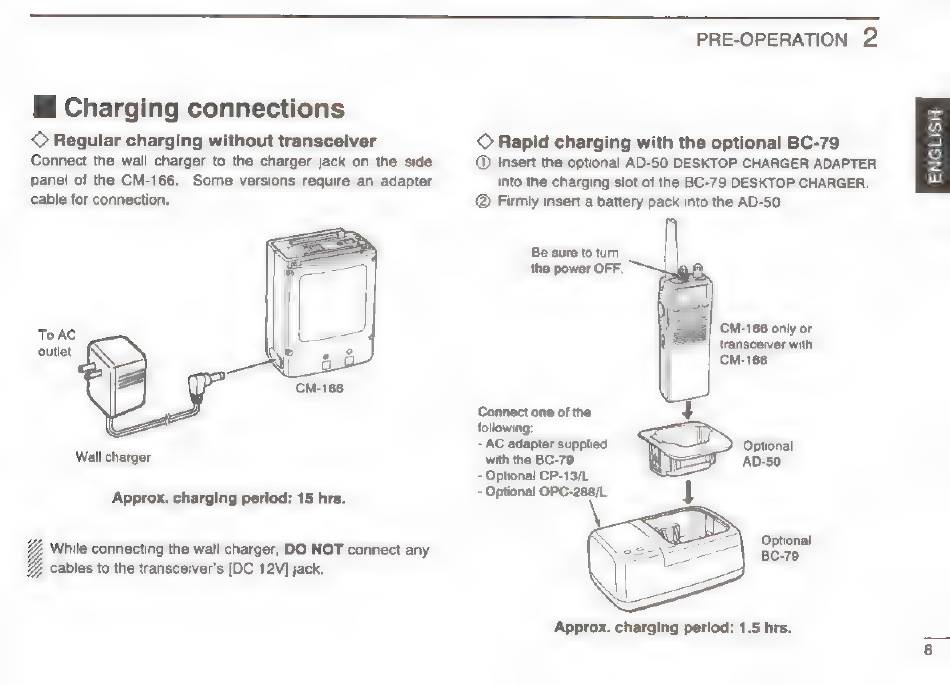

E Charging connections
Q Regular charging without transceiver
Connect the wall charger to the charger jack on the side
panel of the CM-166. Some versions require an adapter
cable for connection.
To AC
outlet
Wall charger
Approx. charging period: 15 hrs.
NI Z While connecting the wall charger, DO NOT connect any
Z
G cables to the transceiver's [DC 12V] jack.
X
PRE-OPERATION 2
© Rapid charging with the optional BC-79
Ф Insert the optional AD-50 DESKTOP CHARGER ADAPTER
into the charging slot of the BC-79 DESKTOP CHARGER.
@ Firmly insert a battery pack into the AD-50.
ENG
Be sure to turn
the power OFF.
CM-186 only or
transceiver with
CM-166
Connect one of the. 1
following:
- AC adapter supplied Optional
with the BC-79 AD-50
- Optional CP-13/L
- Optional OPC-288/L I
Approx. charging perlod: 1.5 hrs.
