The relay has the feature of the so-called „memory" of the con-
tact position, which means when the power supply is switched
back on, the relay will be restored to the state it was in when the
power supply was switched off.

Mounting

1. Disconnect the power supply.
2. Fix the relay on a rail in the control box.
3. Connect the power wires to terminals 1-3, any polarity for AC
voltage and for DC voltage: connect „+" to terminal 3, „–" to
terminal 1.
4. Momentary switches connected in parallel connect to terminal
6 and the wire, to which terminal 3 is connected.
5. Powered receiver connect in series to terminals 11-12.
6. Set the switch-off time with the potentiometer.
BIS-413M 24V is not compatible with backlit buttons.

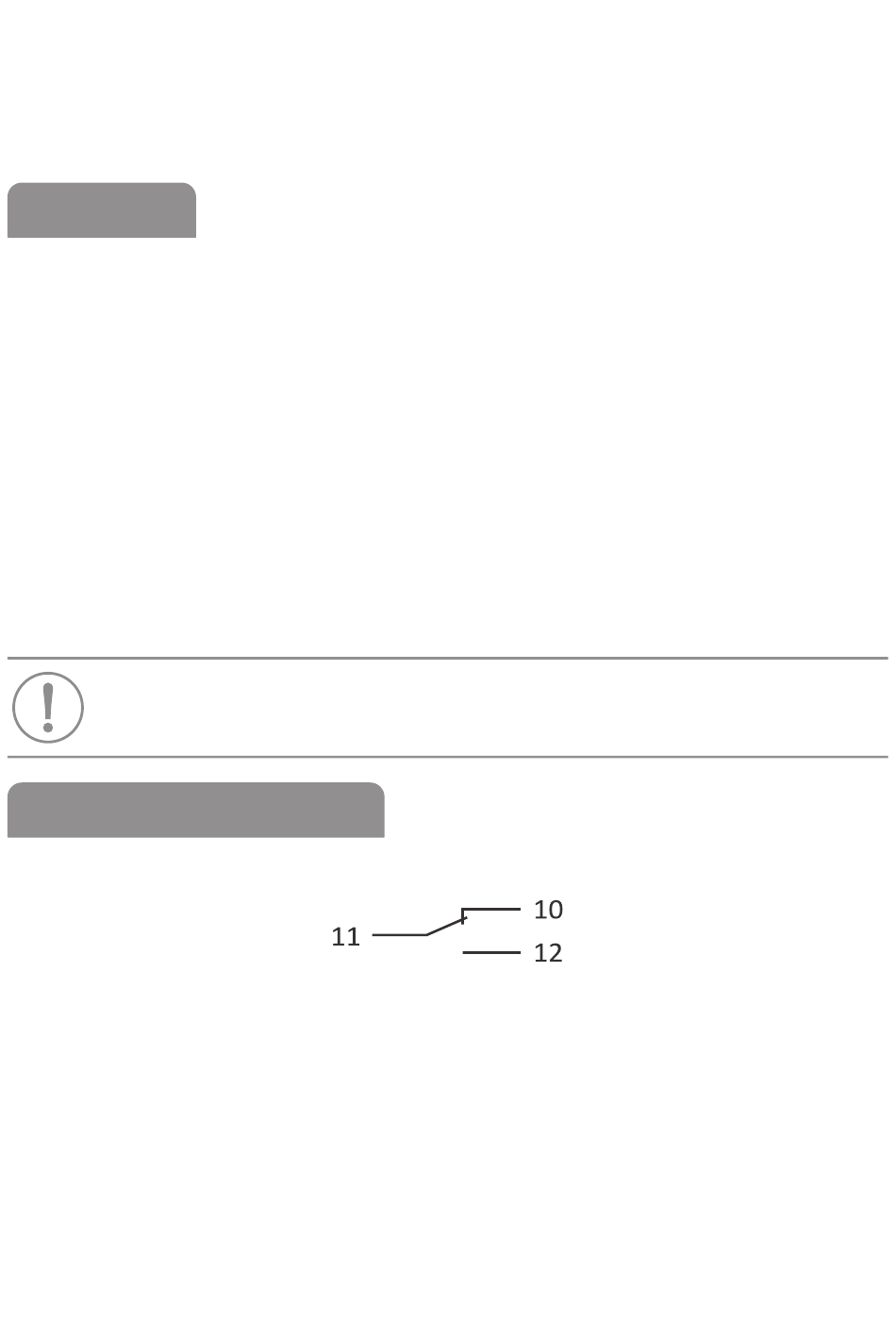

Contact configuration
