JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO.,LTD.
Sales Center Address: Huanyuan East Road No.1,Xuzhuang
Software Park, Nanjing, Jiangsu Province, P.R. China, 210000
Manufacturing Address: YunYang Industrial Park
DanYang, Jiangsu Province, P.R. China, 212300
http://www.yuwell.com
730194-0A
YE6 0D
7

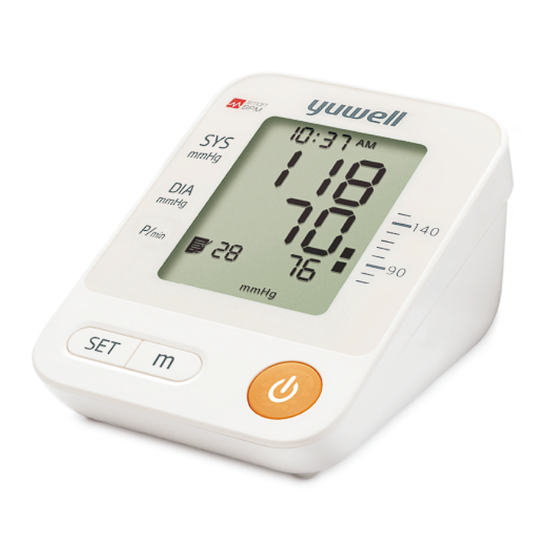

Electronic Blood Pressure Monitor
User's Manual
Please read the user's manual closely before using!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yuwell YE670D
Summary of Contents for Yuwell YE670D
- Page 1 JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO.,LTD. Sales Center Address: Huanyuan East Road No.1,Xuzhuang Software Park, Nanjing, Jiangsu Province, P.R. China, 210000 Manufacturing Address: YunYang Industrial Park DanYang, Jiangsu Province, P.R. China, 212300 730194-0A http://www.yuwell.com Please read the user's manual closely before using!
-
Page 2: Table Of Contents
Product Features Contents Before using Product features............ Clock Display Operation guide............. Function Product structure..........Parts................. Important notes............. Maintenance............Range of Battery installation..........Blood Time and date setting.......... pressure Voice function setting......... display mmHg/kPa setting..........Measuring method Using method of cuff........... Measuring posture.......... -
Page 3: Operation Guide
Operation guide Operation guide Measurement Please follow the steps as shown below 1. Using method of cuff Power-on Wearing the cuff and make the lower edge Install four AA batteries 2~3cm above the elbow, keep the air tube inside of the arm. (Please turn to page 20 for details) Install the batteries Open the... -
Page 4: Product Structure
Operation guide Product structure 1. Main part Check the records Press the button of " " to check the measuring records. This monitor can display the average m e a s u r e m e n t a n d s t o r e 6 0 r e c o r d s . (Please turn to page 28 for details) 2. -
Page 5: Parts
Parts Parts 1. Main part Display Battery cover Start/Pulse Setting Memory button button button 2. Cuff The suitable upper-arm circumference: 22cm~32cm . Rubber air Plug port tube Air plug... -
Page 6: Important Notes
Parts Important notes 3. Display signs and symbols Pay attention with the symbols shown here to Time and date prevent harm or damage to the user. Attention Note on important information Type BF application part SYS(systolic) Consult the manual Manufacture Blood pressure Inflation Date of manufacture... - Page 7 Important notes Important notes 1. Range of application Do not measure continuously. (5 minutes or This product is intended to measure the blood more should be spared between two measurements). pressure and pulse rate of adult at household or Please reinstall the batteries and start again if medical center(not suitable for neonate, pregnancy or pre-eclampsia.) cannot measure.
-
Page 8: Maintenance
Important notes Maintenance Note that It will lose function on the same limb Please observe the following items to protect while cuff inflating. the device and ensure the accuracy of measurement. Do not allowed frequent measurements the resulting restriction of the blood flow may Please store the monitor and accessories cause injury. -
Page 9: Battery Installation
Battery installation Time and date setting The monitor will store the measuring results Open the battery cover and install four AA batteries properly. Then close the cover with a automatically by the management system. click sound. It is necessary to reset time and date after Aligning the +ve and poles of each battery installing new batteries or connecting to DC with the +ve and -ve signs imprinted on the... -
Page 10: Voice Function Setting
Voice function setting Time and date setting After finishing the date and time setting, pressing the " " button to enter the voice function setting,The voice volume value is Appeared on the screen(range: 01-05). The volume value increase once press the " "... -
Page 11: Mmhg/Kpa Setting
mmHg/kPa setting Using method of cuff After finishing the Voice function setting, Tips! pressing the " " button to enter the Either of arms can be measured. mmHg/kPa unit setting. Press the " " button Cuff connecting to switch between these two units. Finish by Connect the air connector of the cuff to the pressing the "... -
Page 12: Using Method Of Cuff
Measuring posture Using method of cuff Using method of cuff K e e p t h e u p p e r arm bareness or Wind the cuff around the upper arm. ( as shown wearing thin clothes In the picture) Keep the lower edge of the Keep the center of cuff and heart... -
Page 13: Start Measuring
Start measuring Start measuring Don't eat, smoke, drink, take bath or do any high impact sport within half an hour before measuring. Measurements shall be taken at the same time every day. Sit still for 5 minutes before the measurement 1. - Page 14 Start measuring Start measuring Please maintain the position during the 3. Take off the cuff measurement and don't speak or move body 4 Shut down or hand. Press the" "button to shut down. Also it will power off automatically in 30 seconds without any operation.
-
Page 15: Memory Function................................................... 27 Detection
Memory function Blood pressure range indicator Tips! If the SYS is higher than 140mmHg or DIA higher than 90mmHg means having high The monitor will store the measurement data blood pressure. Please contact with doctor for automatically (including time, date, blood advice. - Page 16 Memory function Memory function C. Read the recorded data by pressing the 1. Press the " "button for the records. A. Press the" "button to show the average " "button as the sequence: "1", "2" value of the latest 3 times measurement.."60"(max).
-
Page 17: Auxiliary Measuring Function
LCD display Auxiliary measuring function Press the " " button and it will show the Cuff Wrapping Detection current time, as shown blew: If the cuff winded properly, it will show the “ "icon. Otherwise it will show the" " icon, then press the "... -
Page 18: Static Mode
Static mode Static mode This function is mainly for professional Entering the static mode personnel to enter the static mode to test the Press the " "button and hold, meanwhile monitor through standard pressure gauge. install the batteries. Hold on for about 3 Warning: Normal users don't need to know this function and also do not operate. -
Page 19: Common Fault And Trouble Shooting
Common fault and trouble shooting Common questions of blood pressure measurement 1. What is blood pressure? Common fault Solutions Blood pressure is the force exerted by blood Check the batteries are installed It doesn't work after against the walls of the arteries. Systolic correctly pressing the '' ''button... -
Page 20: Technical Parameters
Common fault and trouble shooting Technical parameters The table below shows the possible fault Model YE670D Display LCD digital display displaying icon, possible reason, and solutions. Measuring Oscillation mensuration Wrong method Fault cause Solution indication Measuring range 0-280mmHg Unable to measure... -
Page 21: Electromagnetic Compatibility Information
There is the potentia risk of radio frequency The YE670D is intended for use in the electromagnetic environment specified below. The customer of the user of the YE670D should interference between the device and other assure that it is used in such and environment. - Page 22 E670D is intended for use in the electromagnetic environment Guidance and manufacture s declaration-electromagnetic immunity specified below. The customer of the user of the YE670D should assure that it is used in such and environment. YE670D is intended for use in the electromagnetic environment specified below.
- Page 23 RF communications equipment and the YE670D YE670D is intended for use in the electromagnetic environment specified below. The customer or the user of YE670D should assure YE6 0D is intended for use in an electromagnetic environment that it is used in such an environment.
-
Page 24: Health Diary
Health diary Health diary...
