Summary of Contents for Yuwell YE660F
- Page 1 180mm 142.5mm 注：此中虚线仅作工艺示意，无实际生产意义。 技术要求： 材质：80g双胶纸 尺寸：180x142.5mm 骑马订 第6页中标识“ ”图标中蓝色部分保持蓝色印刷：C90%, M60%, Y10%, K0 YY-BPM0002C-01 YE660F 英文说明书(CE) 图样标记 数量 重量 比例 标记 处数 更改文件号 签 字 日期 设 计 视 角 共 张 第 张 制 图 工 艺 80g双胶纸 审 核...

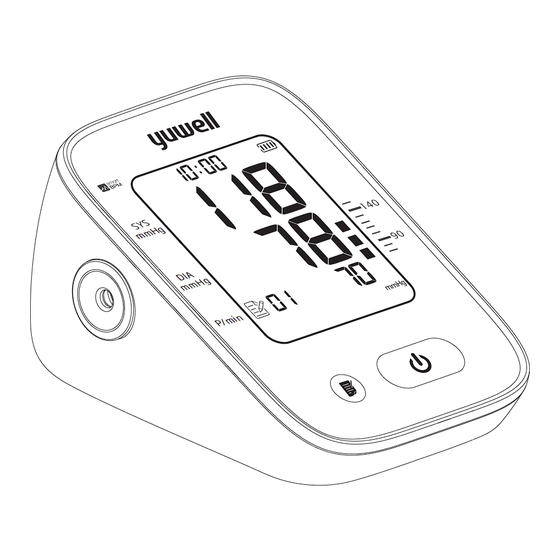

- Page 2 YE660F Electronic Blood Pressure Monitor Metrax GmbH Rheinwaldstr. 22, D-78628 Rottweil, Germany User's Manual JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO.,LTD. NO.1 Baisheng Road Development Zone, Danyang, Jiangsu 212300 CHINA www.yuwell.com YY-BPM0002C-01(A/0) Date of issue ：2024.05 Please read the user's manual closely before using!
-
Page 3: Table Of Contents
Product Features Contents LCD display Data storage Before using Product features............Operation guide............Product structure and parts........Cautions..............Important notes............Battery installation..........Time and date setting..........Voice volume and u nit setting......... -
Page 4: Operation Guide
Operation guide Operation guide This device uses the oscillometric method of Measurement blood pressure measurement. 1. Using method of cuff Please follow the steps as shown below. Wearing the cuff and make the lower edge 2 ~3cm above the elbow, keep the air tube inside of the Power-on arm. -
Page 5: Product Structure And Parts
EU Model: HT-C38B-0510EW Plug port Battery cover US Model: HT-C38B-0510WW 2. Cuff UK Model: HT-C38B-0510UW There are 6 types of cuff provided by yuwell. 4. Display Please subject to the received type. Time and date Battery power Rubber air tube... -
Page 6: Cautions
Important notes Cautions Pay attention with the symbols shown here to Statement：The device is a medical device. prevent harm or damage to the user. 1. Intended purpose This product is intended to measure the blood Caution pressure and pulse rate of adult who is more than 12 years old at household or medical Type BF applied part center (not suitable for neonate, pregnancy or... - Page 7 Important notes Important notes Warning: Do not use the cuff on the arm where Do not take the measurement in a moving vehicle. the side of a mastectomy or lymph node Do not measure continuously. (At least 2~3 clearance. minutes or more should be spared between two Warning: Note that it will lose function of other measurements.) monitor devices simutaneously on...
-
Page 8: Battery Installation
Tips! Statement: If the monitor has not been used and Please use only the authorized Yuwell AC adapter stored in the required temperature, altitude and (output DC 5V 1000mA). If you need to use a AC... -
Page 9: Time And Date Setting
Time and date setting Voice volume and unit setting Time and date setting Voice volume setting The monitor will store the measuring results After finishing the time and date setting, press automatically by the management system. It is the " "... -
Page 10: Using Method Of Cuff
Using method of cuff Measuring posture Tips! Either of the upper-arms can be measured. Keep the upper arm Do not measure other parts of the body. bareness or wearing thin clothes Cuff connecting Keep the center Connect the air connector of the of cuff and heart cuff to the socket which on the at the same level... -
Page 11: Start Measuring
Start measuring Start measuring Please relax as much as possible and not talk or Don't eat, smoke, drink, take bath or do any move during the measurement procedure. high-intensity sport within an hour before measuring. Measurements shall be taken at the same time every day. -
Page 12: Blood Pressure Range Indicator
Start measuring Blood pressure range indicator 3. Take off the cuff If the SYS is higher than 139mmHg or DIA higher than 89mmHg means having high blood 4. Shut down pressure, please contact with doctor for advice. Press the " "... -
Page 13: Memory Function
Memory function Memory function C. Read the recorded data by pressing the " " Tips! button as the sequence: "1", "2" .."90" (max). The monitor will store the measurement data Then return to the 1st. Holding the " " button automatically (including blood pressure and to search the data quickly. -
Page 14: Static Mode
Static mode Static mode This function is mainly for professional personnel Note: When the measured to enter the static mode to test the monitor pressure exceeds 300mmHg during through standard pressure gauge. static test, pressure value and " " are displayed, indicating the Warning: Normal users don't need to know measurement result exceeds the this function and also do not operate. -
Page 15: Common Questions Of Blood Pressure Measurement
Common question of blood pressure Common question of blood pressure measurement measurement 1. What is blood pressure? 4. WHO Blood Pressure Classification? Blood pressure is the force exerted by blood Standards to assess high blood pressure, without against the walls of the arteries. Systolic pressure regard to age, have been established by the world occurs when the heart contracts. -
Page 16: Common Fault And Trouble Shooting
Common question of blood pressure Common fault and trouble shooting measurement Common fault Solutions 5. Blood pressure variations? It doesn't work after pressing Check the batteries are installed correctly An individual's blood pressure varies greatly on a the '' '' button with batteries Replace new batteries installation daily and seasonal basis. -
Page 17: Alarm System
Alarm system Maintenance Please observe the following items to protect the When the determined blood pressure is outside device and ensure the accuracy of measurement. the rated range, there is a visual alarm signal on Please store the monitor and accessories properly the display screen. -
Page 18: Features And Technical Parameters
Features and technical arameters Features and technical arameters 1. Features 3. Operation and storage conditions: Voice function Operation conditions: 90 groups of memory a temperature range of ＋5℃ to ＋40℃； a relative humidity range of 15% to 90%, non ondensing 2. -
Page 19: Electromagnetic Compatibility Information
Guidance and manufacture s declaration- electromagnetic emission This equipment might not offer adequate protection The YE660F Electronic Blood Pressure Monitor is intended for use in to radio-frequency communication services. The electromagnetic environment specified below. The customer or user... - Page 20 Table 3 For ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING Guidance and manufacture s declaration-electromagnetic emission Guidance and manufacture s declaration-electromagnetic immunity The YE660F Electronic Blood Pressure Monitor is intended for use in the electromagnetic environment specified below. The customer YE660F Electronic Blood Pressure Monitor...
- Page 21 Electromagnetic compatibility information Table 4 Test specifications for ENCLOSURE PORT IMMUNITY to RF wireless communications equipment IMMUNITY Test TEST Band Service frequency Modulation LEVEL (MHz) (MHz) (V/m) Pulse 380 to 390 TETRA 400 modulation 18 Hz ±5 kHz deviation GMRS 460, FRS 460 1 kHz sine Pulse LTE Band 13, 17...
