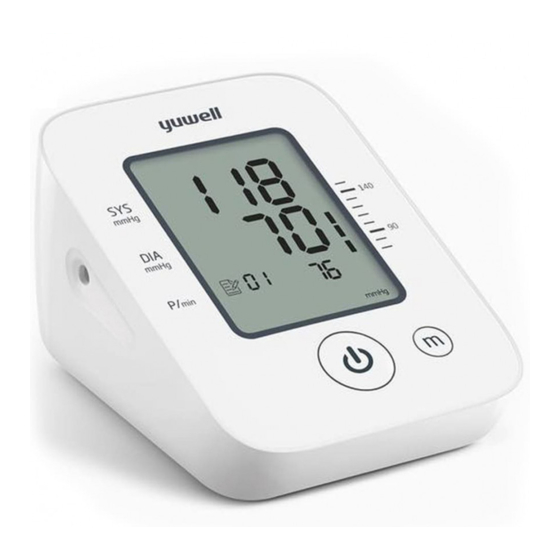

Yuwell YE660D User Manual
Electronic blood pressure monitor
Hide thumbs
Also See for YE660D:
- User manual (83 pages) ,
- User manual (115 pages) ,
- User manual (21 pages)
Table of Contents
Advertisement
JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO.,LTD.
Sales Center Address: Huanyuan East Road No.1,Xuzhuang
Software Park, Nanjing, Jiangsu Province, P.R. China, 210000
Manufacturing Address: Yunyang Industrial Park
Danyang, Jiangsu Province, P.R. China, 212300
http://www.yuwell.com
730169-2A

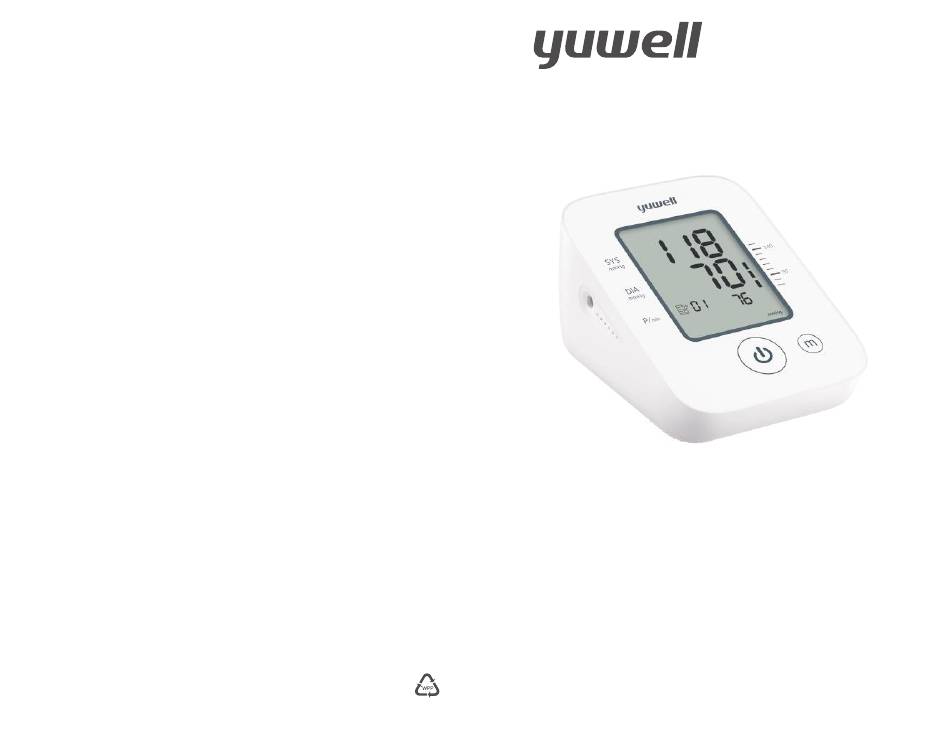

YE660D
Electronic Blood Pressure Monitor
User's Manual
Please read the user's manual closely before using!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yuwell YE660D
Summary of Contents for Yuwell YE660D
- Page 1 YE660D Electronic Blood Pressure Monitor JIANGSU YUYUE MEDICAL EQUIPMENT & SUPPLY CO.,LTD. Sales Center Address: Huanyuan East Road No.1,Xuzhuang User's Manual Software Park, Nanjing, Jiangsu Province, P.R. China, 210000 Manufacturing Address: Yunyang Industrial Park Danyang, Jiangsu Province, P.R. China, 212300 730169-2A http://www.yuwell.com...
-
Page 2: Table Of Contents
Product Features Contents IHB (Irregular Before using Heartbeat) Voice function Product features............. Prompt Operation guide............Product structure........... Parts................Cautions..............Application scope and attention items....Battery installation ..........Voice volume and unit setting......Measuring method Using method of cuff..........Measuring posture..........Start measuring............ -
Page 3: Operation Guide
Operation guide Operation guide Measurement Please follow the steps as shown below 1. Using method of cuff Power-on Wearing the cuff and make the lower edge Connect the power source 2~3cm above the elbow, keep the air tube inside of the arm.(Please turn to page 16 for details) Or install four AA batteries 2 Measuring posture... -
Page 4: Product Structure
Operation guide Product structure 1. Main part Check the records Press the button of " " to check the measuring records. This monitor can display the average m e a s u r e m e n t a n d s t o r e 9 0 r e c o r d s . (Please turn to page 23 for details) 2. -
Page 5: Parts
Parts Parts 1. Main part Display Battery cover 2. Cuff The suitable upper-arm circumference of the Memory Start/Pulse button button cuff is 22cm Plug port Rubber air tube Cuff Power adapter socket Air plug... -
Page 6: Cautions
Cautions Parts 3. Display Pay attention with the symbols shown here to prevent harm or damage to the user. Symbol Description Attention! It might cause damage SYS(systolic) Prohibited Obligatory DIA(diastolic) Safety and environmental protection use periodFor 10 years Records number Pulse rate Type BF application part Inflation... -
Page 7: Application Scope And Attention Items
Application scope and attention items Application scope and attention items 1. Range of application Do not take the measurement in a moving The monitor is used for measuring blood vehicle. pressure of human body (adult older than 12, Do not measure continuously. (2~3 minutes not suitable for new born baby)! or more should be spared between two measurements). -
Page 8: Battery Installation
Battery installation Voice volume and unit setting Open the battery cover and install four AA Voice volume setting batteries properly. Then close the cover with a " " Voice volume setting: Press the button click sound. " " and the button at the same time for more than 3 seconds till the number starts... -
Page 9: Voice Volume And Unit Setting
Voice volume and unit setting Using method of cuff Unit setting Tips! Either of arms can be measured. After voice volume setting, pressing the " " button to enter the unit unit. Press the " " Cuff connecting button to choose unit between mmHg and kPa. Press "... -
Page 10: Using Method Of Cuff
Using method of cuff Measuring posture Using method of cuff K e e p t h e u p p e r Wind the cuff around the upper arm. ( as shown arm bareness or wearing thin clothes In the picture) Keep the lower edge of the Keep the center of cuff and heart... -
Page 11: Start Measuring
Start measuring Start measuring Don't eat, smoke, drink, take bath or do any high impact sport within half an hour before measuring. Measurements shall be taken at the same time every day. Sit still for 5 minutes before the measurement 1. - Page 12 Start measuring Start measuring 3. Take off the cuff Please maintain the position during the measurement and don't speak or move body 4. Shut down or hand. Press the" "button to shut down. Also it will power off automatically in 3 minutes without any operation.
-
Page 13: Blood Pressure Range Indicator
Blood pressure range indicator Memory function Tips! If the SYS is higher than 139mmHg or DIA higher than 89mmHg means having high The monitor will store the measurement data blood pressure. Please contact with doctor for automatically (including blood pressure and advice. -
Page 14: Memory Function
Memory function Memory function 1. Press the " "button for the records. C. Read the recorded data by pressing the A. Press the" "button to show the average " "button as the sequence: "1", "2" value of the latest 3 times measurement.."90"(max). -
Page 15: Auxiliary Measuring Function
Auxiliary measuring function Static mode This function is mainly for professional Cuff detection personnel to enter the static mode to test the monitor through standard pressure gauge. If the cuff winded properly, it will show the Warning: Normal users don't need to know '' icon. -
Page 16: Static Mode
Static mode Entering the static mode 1. What is blood pressure? Blood pressure is the force exerted by blood Press the '' '' button and hold, meanwhile against the walls of the arteries. Systolic install the batteries. Hold on for about 3 pressure occurs when the heart contracts. - Page 17 3. Why measure Blood Pressure at home? Note: There is no definition about hypopiesia, Blood pressure measured at a clinic or doctor's and generally SYS (systolic pressure) less than office may cause apprehension and can 90mmHg or DIA (diastolic pressure) less than produce an elevated reading, 25~30 mmHg 60mmHg is called hypotension.
- Page 18 6. When is the best time to measure blood Common fault Solutions pressure? Check the batteries are installed It doesn't work after correctly pressing the '' ''button After urination, before breakfast in the with batteries installation Replace new batteries morning. Check the connection and winding Before sleeping at night.
- Page 19 Please observe the following items to protect The table below shows the possible fault the device and ensure the accuracy of displaying icon, possible reason, and solutions. measurement. Wrong Please store the monitor and accessories Fault cause Solution indication properly after use. Unable to measure Fasten cuff correctly Do not place the monitor and accessories in...
- Page 20 1. Features backlight LCD display Cuff Wrapping Detection IHB( Irregular heartbeat) indicator Misoperation detection 90 groups of memory Average value display of three times measurement 2. Technical parameters Displaying: LCD digital display Measuring method: oscillation mensuration Measuring range: 0~300mmHg (0.0-40.0kPa) Pulse rate: 40~200 times/min Precision: Pressure: within ±3mmHg(±0.4kPa)
- Page 21 Pressure sensor: Semiconductor pressure There is the potentia risk of radio frequency sensor interference between the device and other Pressurization: Automatic pressurize devices. If there is, please find out the Depressurization: Automatic air releasing problems and take the following measures: Power supply: 4 AA batteries or 6V/600mA DC (1) Turn off the device, and turn on again, power...
