Roxell Swii'Flo User Manual

Hide thumbs Also See for Swii'Flo:
Table of Contents

Advertisement

Quick Links

Download this manual
022-2724
02205284
*02205284*
®
User Guide
Original User Guide
EN
ENGLISH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Swii'Flo and is the answer not in the manual?

Questions and answers

Related Manuals for Roxell Swii'Flo

Summary of Contents for Roxell Swii'Flo

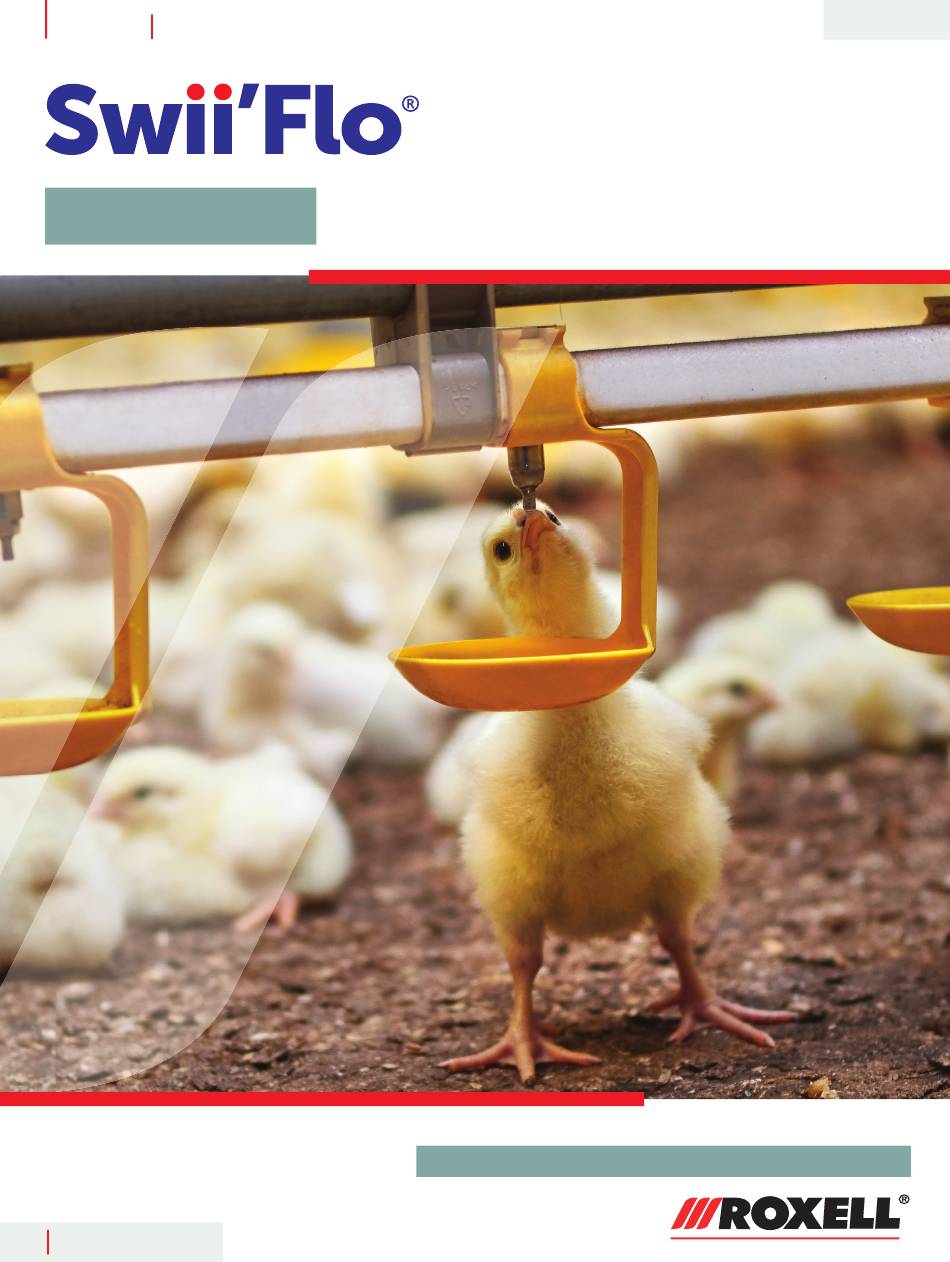

  • Page 1 022-2724 02205284 *02205284* ® User Guide Original User Guide ENGLISH...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Disclaimer General information Instructions for the user ........................I-1 General safety rules – hand winch ..........................I-1 General description of Swii'Flo ............................I-2 Water supply .................................. I-2 Water panel ................................... I-5 Line height ................................... I-12 Pressure regulator ............................... I-15 End unit ..................................

  • Page 3: Disclaimer

    The original, authoritative version of this manual is the English version produced by ROXELL BV Subsequent changes to any manual made by any third party have not been reviewed nor authenticated by Roxell. Such changes may include, but are not limited to, translation into languages other than English, and additions to or deletions from the original content.

  • Page 4: General Information

    Roxell’s most current use and maintenance manuals; use of cleansing agents and disinfectants in violation with the instructions received from the suppliers;...
  • Page 5 In the European Union If you have used the product for commercial purposes and you want to dispose of it, contact Roxell, who will give you information about the return of the product. It is possible that you will have to pay a disposal charge for the return and recycling.
  • Page 6 Swii'Flo – General information Roxell – 022 – 4823 LOTOTO = Lock Out - Tag Out - Try Out Before you begin: Everyone needs his own lock and tag (label), which can’t be removed by other persons. Inform all the persons who are influenced by the procedure.
  • Page 7 Roxell – 022 – 4823 Swii'Flo – General information Information about the residual risks - used safety signs There are three levels of danger, which you can recognize from the following signal words: • DANGER • WARNING CAUTION • The nature and source of the imminent danger and possible consequences of not obeying warnings is stated here!

  • Page 9: Instructions For The User

    Do not wear loose clothing. • Only adults may control the hand winch. • Only use the hand winch to suspend Roxell drinking, heating or nesting lines. • Only use the hand winch with the supplied handle. • Always check the condition of the hand winch and the cable before use.

  • Page 10: General Description Of Swii'flo

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 General description of Swii'Flo Swii’Flo is an automated drinking system with nipples for broiler breeders, broilers and layers. Different nipple types are available. The ingoing water pressure is 3 bar. The outgoing pressure is controlled by a pressure regulator. In this system the nipple lines are winchable to adjust their height according to the age of the flock.

  • Page 11: Cleaning And Disinfection

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Iron: When water is pumped to the surface, iron occurs in its soluble ferrous form. The insoluble ferrous ions oxidize upon exposure to air or dissolved oxygen. These and other chemical reactions cause insoluble gelatinous deposits.
  • Page 12 Swii'Flo – Instructions for the user Roxell – 022 – 4823 Minimum pressure and flow WARNING: Max. ingoing pressure is 9 bar! Pressure range Roxell water panel & pump suitable for Water tank Pump Regular operation ≥ 0.4 bar 2 - 3 bar...

  • Page 13: Water Panel

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Water panel Water panel overview 1" Name Ball valve Non return valve Pressure restrictor Bypass valve Medicator Filter Key for filter...

  • Page 14: Filter Cleaning

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Filter cleaning General rule Difference between inlet and outlet gauges > 0.5 bar! • Check if there is no pressure on the system, gauges on 0. • Drain the remaining water in the filter.

  • Page 15: Regular Cleaning

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Regular cleaning Intensive cleaning Cleaning and disinfection (page I-3).
  • Page 16 Swii'Flo – Instructions for the user Roxell – 022 – 4823 Valve operation Normal operation 1" 1" 1" 1" 3/4" 3/4" 3/4" Operation with medicator 1" 1" 1" 1" 3/4" 3/4" 3/4" 3/4" 3/4"...
  • Page 17 Roxell – 022 – 4823 Swii'Flo – Instructions for the user Cleaning the medicator 1" 1" 1" 3/4" 3/4" 3/4" 3/4" 3/4"...
  • Page 18 Swii'Flo – Instructions for the user Roxell – 022 – 4823 Divided houses Normal operation 1" 1" 1" 1" 1" 3/4" 3/4"...
  • Page 19 Roxell – 022 – 4823 Swii'Flo – Instructions for the user Option: operation with medicator 1" 1" 1" 1" 3/4" 3/4" 1"...

  • Page 20: Line Height

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Line height To adjust the line height To adjust the line height of the complete line...
  • Page 21 Roxell – 022 – 4823 Swii'Flo – Instructions for the user To adjust the line height with the three-hole string adjuster ± 15 cm ± 15 cm To adjust the line height with the suspension screw...
  • Page 22 Swii'Flo – Instructions for the user Roxell – 022 – 4823 To adjust the height of the line with the adjustment leveller...

  • Page 23: Pressure Regulator

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Pressure regulator To set the modes of the pressure regulator Turn the flush button to the open position for operation mode. Turn the flush button to the closed position to cut off the water supply.
  • Page 24 Swii'Flo – Instructions for the user Roxell – 022 – 4823 To regulate the water pressure Start 0 – 7 days 7-12 cm 7 – 21 days 21 days – end of the flock 25-30 cm 7-12 cm...

  • Page 25: End Unit

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user End unit To set the modes of the end unit Operation mode Flushing mode To use the intermediate shut-off valve Whole house Partial brooding...

  • Page 26: Flow Of Nipples

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Flow of nipples 40 cm 30 cm 20 cm 10 cm 6.5 cm 0 cm VT 80 Recommended # birds / nipple VT 80 Moderate climate Hot climate Min.
  • Page 27 Roxell – 022 – 4823 Swii'Flo – Instructions for the user VT 130 Recommended # birds / nipple VT 130 Moderate climate Hot climate Min. Max. Min. Max. Breeders production Layers production FS 80 Recommended # birds / nipple FS 80...
  • Page 28 Swii'Flo – Instructions for the user Roxell – 022 – 4823 FS 130 Recommended # birds / nipple FS 130 Moderate climate Hot climate Min. Max. Min. Max. Breeders production Pullets-breeder rearing & Layers rearing & Turkey (< 6 weeks)

  • Page 29: Cleaning The Drinking System

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Cleaning the drinking system To clean the drinking system TIP: In order to maintain the correct functioning of the drinking system, cleaning (flushing) should be performed on a regular basis.
  • Page 30 Swii'Flo – Instructions for the user Roxell – 022 – 4823 To use the flushing with overflow Flushing time: seconds/line = number of tubes/line x 6 seconds Example: 90 m = 30 tubes x 6 s = 180 s...
  • Page 31 Roxell – 022 – 4823 Swii'Flo – Instructions for the user To use the automatic flushing NOTE: Operation explained in the Roxell Flushing Controller (RFC) Guide.

  • Page 32: Vaccination And Medication

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Vaccination and medication To administer vaccination and medication CAUTION: Always clean the system before and after administration! Check which combination of products is approved. Check the specifications of the supplier(s).
  • Page 33 Roxell – 022 – 4823 Swii'Flo – Instructions for the user Administer the additives. Check that the additives have reached the end of the drinking line.

  • Page 34: Perch Protection

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Perch protection To use the electric poultry perch guard DANGER: Turn off the main switch first. Ensure you use personal protective equipment (protective gloves, anti-slip safety shoes, safety glasses, dust mask...).

  • Page 35: Maintenance Instructions

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Maintenance instructions DANGER: Turn off the main switch first. Ensure you use personal protective equipment (protective gloves, anti-slip safety shoes, safety glasses, dust mask...). ATTENTION: Actions on a grey background must be done by a technically trained person.

  • Page 36: Hand Winch

    Swii'Flo – Instructions for the user Roxell – 022 – 4823 Concerned part/ At first system startup During the flock Between 2 flocks Every 6 months handling Electric poultry Check the mechanical Daily check that no • Check the perch guard tension on the cable.

  • Page 37: Troubleshooting Guide

    Roxell – 022 – 4823 Swii'Flo – Instructions for the user Troubleshooting guide DANGER: Turn off the main switch first. Ensure you use personal protective equipment (protective gloves, anti-slip safety shoes, safety glasses, dust mask...). CAUTION: If you must replace leaking nipples, remove them carefully. Screw the nipples vertically into the pipe, so that you do not deform the screw thread.
  • Page 38 Swii'Flo – Instructions for the user Roxell – 022 – 4823 Issue Possible cause Corrective action Water is wasted. Pressure regulator is installed at the wrong Check "Technical Data sheet". place. Too high floor scope. Install the slope regulator at the correct position.
  • Page 39 Roxell – 022 – 4823 Swii'Flo – Instructions for the user Issue Possible cause Corrective action Pressure regulator is Incorrect connection of the water hose. (page 2- hanging in an incorrect position. Water pressure at the end Too great angle of floor slope.
  • Page 40 Swii'Flo – Instructions for the user Roxell – 022 – 4823 Issue Possible cause Corrective action Birds are perching in case Poultry perch guard not electrified. Connect to the poultry perch guard: turn of electric poultry perch system. Check on short circuits.
  • Page 41 Roxell – 022 – 4823 Swii'Flo – Instructions for the user Hand winch Maintenance instructions – hand winch DANGER: Ensure you use personal protective equipment (protective gloves, anti-slip safety shoes, safety glasses, dust mask...). • Do not use water to clean the hand winch.
  • Page 42 *02205508* 1020 02205508 House chart Line height Operation of the drinking system Adjust the line height: General guidelines for the water pressure (water column) in > 1 week function of the age of the birds:: The line height depends on the size of the birds and their >...
  • Page 43 1020 02205508 House chart Manual flushing Flushing with overflow 1. Connect the end unit to the drain hose. Proceed as described in Manual Flushing. 2. Put the end unit valve in the flushing position. The end unit is connected to the drain pipe (overflow). 1.

  • Page 44: Declaration Of Incorporation Of Partly Completed Machinery

    Roxell BV, Industrielaan 13, 9990 Maldegem Tel: + 32 50 72 91 72 Fax: + 32 50 7167 21 “This part may only be filled out if all built-in subparts are delivered by Roxell” EG-verklaring van overeenstemming (Richtlijn 2006/42/EG, Bijlage II.1.A)
  • Page 45 Supply of Machinery (Safety) Regulations 2008 Manufacturer: Roxell BV, Industrielaan 13, 9990 Maldegem “This part may only be filled out if all built-in subparts are delivered by Roxell” Tel: +32 50 72 91 72 Fax: +32 50 71 67 21...

  • Page 46: Ec Declaration Of Conformity

    EG-verklaring van overeenstemming(Richtlijn 2006/42/EG, Bijlage II.1.A) EC-declaration of conformity (Directive 2006/42/EC, Annex II.1.A) Fabrikant/Manufacturer: Roxell BV, Industrielaan 13, 9990 Maldegem Tel: + 32 5072 91 72 Fax: + 32 50 71 67 21 Verklaart geheel onder eigen verantwoordelijkheid dat het product:...
  • Page 47 UK Declaration of Conformity Supply of Machinery (Safety) Regulations 2008 Manufacturer: Roxell BV, Industrielaan 13, 9990 Maldegem Tel: +32 50 72 91 72 Fax: +32 50 71 67 21 Declares on its own responsibility that the product: Winching system Nr: 00102368 / 00102087 Winching system for feed- and drink lines;...
  • Page 48 ROXELL USA Inc. - 720 Industrial Park Road, Anderson MO 64831 (USA) Tel. +1 417 845 6065 - info.usa@roxell.com - www.roxell.com ROXELL Malaysia - No. 49, Jalan Permata 2/KS9, Taman Perindustrian Air Hitam, 41200 Klang, Selangor (Malaysia) Tel. +60 3 3123 1767 - info.malaysia@roxell.com - www.roxell.com...
