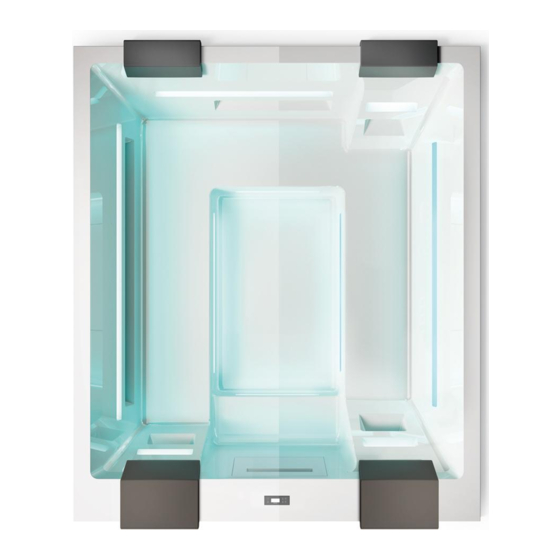

- Page 1 Muse GP Installation manual...
- Page 2 The installation of this minipool is simple and immediate, however we advise you to read this manual carefully before installing it. The Treesse team is always available for any information or request for assistance that may be required during installation.
-
Page 3: Table Of Contents
Contents Safety instructions __________________________________________4 _________________________________________________4 EXPLANATION OF PICTOGRAMS Preliminary operations ______________________________________5 PREPARATIONS AND CHOICE OF POSITION _________________________________________ 5 CHECKING MINIPOOL INTEGRITY __________________________________________________ 5 OUTDOOR INSTALLATION __________________________________________________________________ 5 INDOOR INSTALLATION ____________________________________________________________________ 5 Transport and position ______________________________________6 MOVING _________________________________________________________________________ 6 POSITIONING _____________________________________________________________________ 7 TEMPORARY POSITIONING _________________________________________________________________ 7 POSITIONING IN THE PLANNED LOCATION __________________________________________________ 7 Installation _________________________________________________8... -
Page 4: Safety Instructions
Unauthorised actions, tampering or Treesse invites you to protect the environ- modifications that do not follow the ment by disposing of the material in special information provided in this manual can cause separate collection bins. -
Page 5: Preliminary Operations
Preliminary operations Muse GP minipool PrEPArATIonS AnD ChoICE More information oF PoSITIon ouTDoor InSTAllATIon The pre-installation sheet supplied at the time of purchase provides all the information neces- Preparations: sary for a correct preparation of the installation To run the electric cables from the main electrical panel environments. -
Page 6: Transport And Position
Transport and position Muse GP minipool MovIng To move the minipool to the place of installation a suit- able lifting device (e.g., pallet jack) is required. As an alternative, provide for the availability of eight people. If the installation is indoor, before moving the minipool make sure that it can easily pass through the doors and hallways to reach the desired place of installation. -
Page 7: Positioning
Transport and position Muse GP minipool PoSITIonIng TEMPorAry PoSITIonIng The installation of the minipool should be done immediately upon receipt. In any case, once unpacked, if it is necessary to temporarily place it on a surface awaiting the installation, it will be necessary to place level concrete slabs having a minimum thickness of 5 cm under the entire bottom of the minipool. -
Page 8: Installation
Installation Muse GP minipool DESCrIPTIon oF CoMPonEnTS 1 Control Panel 2 2-speed pump (water + recirculation) 2a Hydromassage pump 3 Skimmer with paper filters 4 Skimmer cover panel 5 Electronic control unit 6 Heater (integrated with the control unit) 7 Chromotherapy control unit... -
Page 9: Connections Required
Installation Muse GP minipool ConnECTIonS rEquIrED To be used, the minipool only requires an electrical connection (power supply). room for the electrical Also prepare an electrical and plumbing connections connection to an exchanger (optional - if provided) - see following page. - Page 10 Installation Muse GP minipool PrEPArATIon oF ConnECTIon To An oPTIonAl ExTErnAl ExChAngEr (noT SuPPlIED) room for the electrical connections The exchanger means the Inlet connection: device that heats water (in 1”1/4 female this manual, it is outlet connection: represented by a 1”1/4 female...
- Page 11 Installation Muse GP minipool ArrAngEMEnT For ConnECTIon To An oPTIonAl ouTDoor SPA PACk room for the electrical connections Inlet connection: 1”1/4 female outlet connection: 1”1/4 female The circulator must be water installed according to inlet the characteristics of the ouT: water domestic system (head, length, etc...) and the water...
-
Page 12: Water Supply
Installation Muse GP minipool WATEr SuPPly More information WATEr hArDnESS It is recommended to use OnlY tap water. Water hardness (TH) is determined by the total content If this is not possible refer to the “more informa- of calcium and magnesium present in the water, coming tion”... -
Page 13: Cleaning The Paper Filter
Installation Muse GP minipool ClEAnIng ThE PAPEr FIlTEr Cleaning/replacing the paper filter depends on how often the minipool is used. In general, rinse the cartridge every 2-3 weeks with clean water to remove hair and other foreign substances. Be careful to clean well between the folds of the filter. -
Page 14: Electrical Connections
ElECTrICAl ConnECTIonS The Treesse minipools are built in compliance with European laws (En 60 335-2-60) and are tested during production to ensure the safety of the installer and user. The connection must be made by an experienced, qualified electrician. -
Page 15: Safety Zone
Installation Muse GP minipool SAFETy zonE local regulations prohibit any electrical installation (plug sockets, switches, lamps, etc.) in the area surround- ing the minipool for a distance of at least 60 cm and a height of 230 cm. TESTIng AFTEr InSTAllATIon MAkE SurE ThAT... -
Page 16: First Run
First run Muse GP minipool FIllIng ThE MInIPool Perform a preliminary cleaning of the minipool using a Manual filling with a garden hose bit of water and a mild detergent. Do not use cloths or cleaners that are abrasive, aggressive or that contain solvents because they could irreparably damage the surface of the minipool. -
Page 17: First Run
Muse GP First run minipool Main page FIrST run WARM JETS 1 After turning the power on at the main power panel, the top-side panel display will go through specific sequences. JETS 2 This sequence displays a variety of information regarding LIGHT the configuration of the minipool. BLOWER PrIMIng MoDE COOL... -
Page 18: Alarms
Muse GP Alarms minipool If any alarms appear during initial startup, read the instructions provided in the following table. If the solution is not possible, immediately contact the manufacturer to request technical support. In the meantime, do not try to repair or use the minipool but rather disconnect it from the electricity and water supplies. - Page 19 Muse GP Alarms minipool MESSAgES ConnECTED DISPlAy DESCrIPTIon oF SIgnAlS AnD PoSSIBlE SoluTIonS To WATEr SCrEEn hEATIng Problem description: There may be an insufficient water flow into the heater. Water heating is blocked for about a minute, until a new heating The water attempt is made.
- Page 20 Muse GP Alarms minipool SEnSor-rElATED DISPlAy DESCrIPTIon oF SIgnAlS AnD PoSSIBlE SoluTIonS MESSAgES SCrEEn Problem description: The sensors connected to the water temperature survey provide inaccurate indications (error margin of 2°C or 3°F). Temperature Solutions: If the problem persists, contact Technical Service.
- Page 21 Alarms Muse GP minipool SySTEM DISPlAy DESCrIPTIon oF SIgnAlS AnD PoSSIBlE SoluTIonS MESSAgES SCrEEn Problem description: At power up, the system did not pass the check- sum (system integrity check). This indicates a problem in the operating Memory fault - system.
-
Page 22: Decorative Panels
Decorative panels Muse GP minipool Mount the wood or laminate resin panels as shown in the figures below. -
Page 23: Covering
Under these conditions or when not used, advise the owner to use a fixed or mobile cover to protect the minipool (we recommend the optional Treesse covers). In addition to preserving the surfaces, the cover will keep the water hot and protected against falling leaves and other outdoor debris. - Page 24 www.gruppotreesse.it GRUPPO TRE S s.p.a. 01036 Nepi (VT) - Italy S.S. Cassia km. 36.400 Settevene industrial area tel. (+39) 0761 527242 fax (+39) 0761 527223 info@gruppotres.it...
