UltraDish™ TP

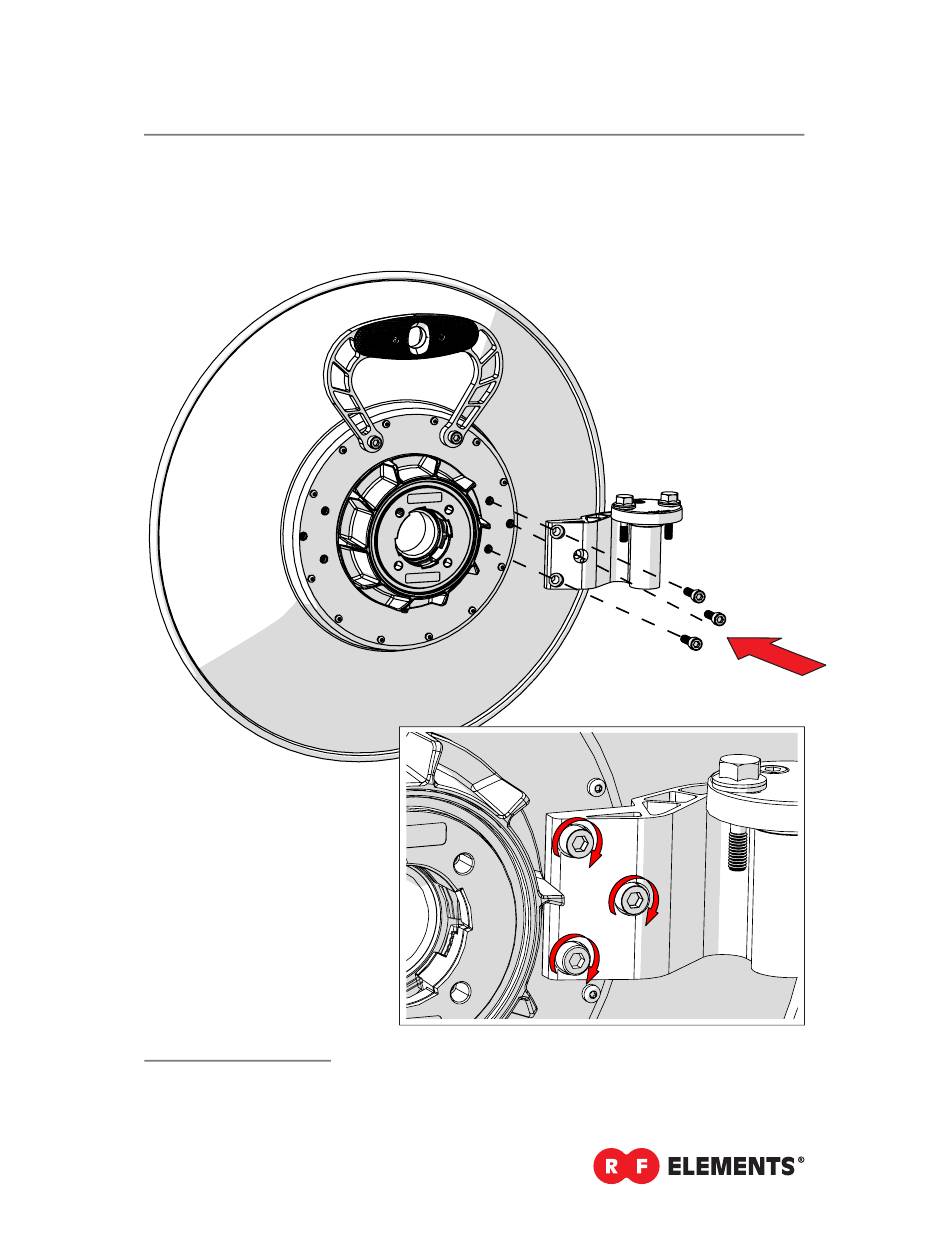

Pre - Installation
The bracket is pre-assambled for installation on the left side of the pole.
If you need to swap to use the right side of the pole, see page 13.
Model ULD-TP-400-4PACK shown. Installation instructions are identical for
ULD-TP-550-4PACK. Antenna dimensions may differ.
www.rfelements.com
5
