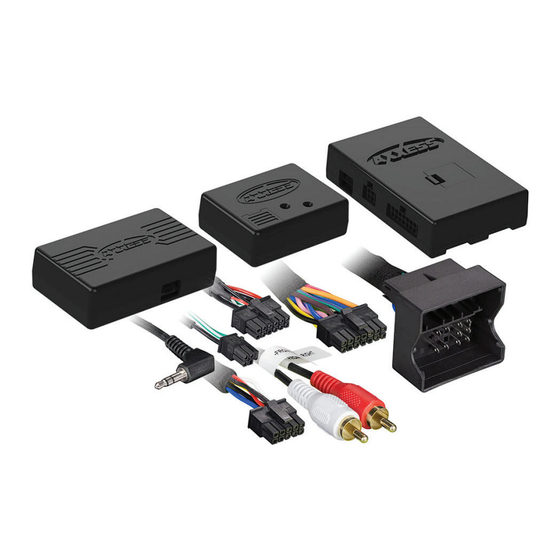

INTERFACE COMPONENTS
• AX-MC90082 interface
• AX-MC90082 amplifier interface
• ASWC-1 interface
• AX-MC90082 harness
• ASWC-1 harness
• Female 3.5mm connector with stripped leads
AxxessInterfaces.com
Mercedes ML (W164)
(with M.O.S.T. 25 amplifier)
Data Interface with SWC
Mercedes GL (X164)
(with M.O.S.T. 25 amplifier)
Data Interface with SWC
INTERFACE FEATURES
• Provides accessory power
• Retains R.A.P. (retained accessory power)
• Designed for amplified models
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Retains balance
• Micro-B USB updatable
© COPYRIGHT 2020 METRA ELECTRONICS CORPORATION
AX-MC90082
I N S TA L L AT I O N I N S T R U C T I O N S
TABLE OF CONTENTS
Connections ............................................................2
2005-2011
Installation .............................................................3
Programming .........................................................3
2006-2010
TOOLS REQUIRED
• Wire cutter • Crimp tool • Solder gun • Tape
• Connectors (example: butt-connectors, bell
caps, etc.)
CAUTION!
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
All accessories, switches, climate
REV. 4/28/20 INSTAX-MC90082
Advertisement
Related Manuals for Axxess AX-MC90082
Summary of Contents for Axxess AX-MC90082
- Page 1 • Retains audio controls on the steering wheel • Retains balance • Micro-B USB updatable INTERFACE COMPONENTS • AX-MC90082 interface • AX-MC90082 amplifier interface CAUTION! All accessories, switches, climate controls panels, and especially air bag indicator • ASWC-1 interface lights must be connected before cycling the •...
- Page 2 CONNECTIONS From the aftermarket radio to the AX-MC90082 harness: • For the radios listed below, connect the female 3.5mm connector with stripped leads, to the male 3.5mm SWC jack from the ASWC-1 harness. Any remaining wires tape off and disregard: •...
- Page 3 • Connect the AX-MC90082 harness to the wiring harness in the vehicle. L.E.D. feedback legend • Connect the ASWC-1 harness to the ASWC-1 interface, and then to the AX-MC90082 interface. 1 flash - Eclipse (Type 1) † 10 flashes - Clarion (Type 2) †...
- Page 4 AX-MC90082 I N S TA L L AT I O N I N S T R U C T I O N S IMPORTANT If you are having difficulties with the installation of this product, please call our Tech Support line at 1-800-253-TECH. Before doing so, look over the instructions a second time, and make sure the installation was performed exactly as the instructions are stated.
