PowerBox Systems POWERCUBE ONE Quick Setup Manual page 2

This short manual shows how to get the Cube flight computer ready to use in the PowerCube ONE power supply unit.
The manual includes the parameters setup in Ardupilot Mission Planer for the communication between the Cube flight computer
and the PowerCube ONE.
1. Connect the Cube Pilot to the PowerCube ONE and use the 4 screws included with the package to secure it in place.
2. Power up the system with at least one battery. The power input works in a range of 6V to 35V.
3. Turn the system on by pressing the SET button for one second. Once the red LED lights up, press button I and II,
while continuing to hold the SET button.
4. Connect the USB-C port to your computer and press CONNECT in the Mission Planner.
5. Open the Full Parameter List and change the settings in the recommended sequence:
a) BATT and BATT2 Parameters

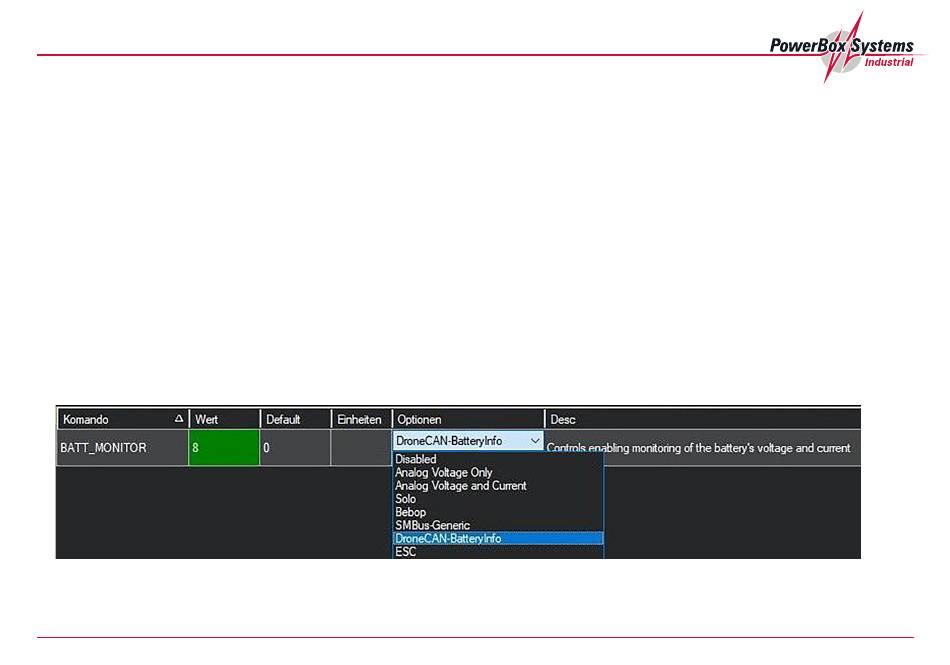

Command: BATT_MONITOR - Option: DroneCan-BatteryInfo
PowerBox-Systems Industrial 2
