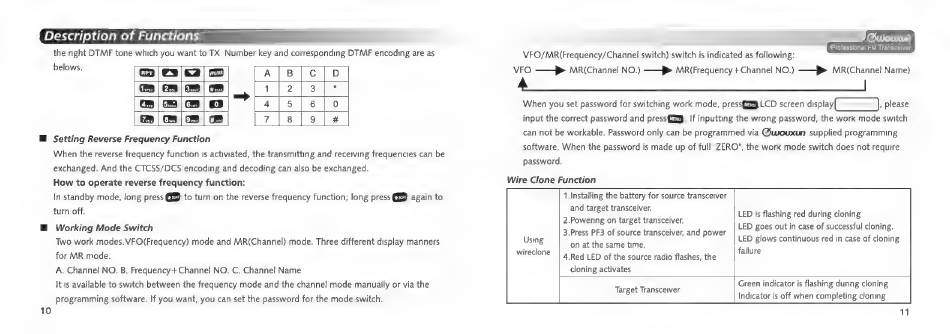

Description of Functions
10
the right DTMF tone which you want to TX. Number key and corresponding DTMF encoding are as
Below;
©ea
c
а |в | с[0
ов пз ge се
1
|-2:
|73: | +
св се | св ез"?
:
5 | 6 | 0
се пз па па
7|8]9
Setting Reverse Frequency Function
When the reverse frequency function is activiated, the transmitting and receiving frequencies can be
exchanged. And the CTCSS/DCS encoding and decoding can also be exchanged.
How to operate reverse frequency function:
In standby mode, long press (ff) to turn on the reverse frequency function; long press (f) again to
turn off.
Working Mode Switch
Two work modes: VFO(Frequency) mode and MR(Channel) mode. Three different display manners
for MR mode.
A. Channel NO. B. Frequency-- Channel NO. C. Channel Name
It is available to switch between the frequency mode and the channel mode manually or via the
programming software. If you want, you can set the password for the mode switch.
Professional FM Transceiver
VFO/MR(Frequency/Channel switch) switch is indicated as following:
VFO ---ф- MR(Channel МО.) ——> MR(Frequency+Channel МО.) -- > MR(Channel Name)
When you set password for switching work mode, ргез5 LCD screen display( ———— ], please
input the correct password and ргеѕ5 7. If inputting the wrong password, the work mode switch
can not be workable. Password only can be programmed via @wouxun supplied programming
software. When the password is made up of full "ZERO", the work mode switch does not require
password.
Wire Clone Function
1.Installing the battery for source transceiver
and target
transceiver.
is
UL
LED is flashing red during cloning.
2.Powering on target transceiver.
a
LED goes out in case of successful cloning.
3.Press PF3 of source transceiver, and power
6
`
Using
И
LED glows continuous red іп case of cloning
on at the same time.
i
failure.
wiredone
4.Red LED of the source radio flashes, the
шше
cloning activates
Green indicator is flashing during cloning.
Indicator is off when completing cloning.
Target Transceiver
11
