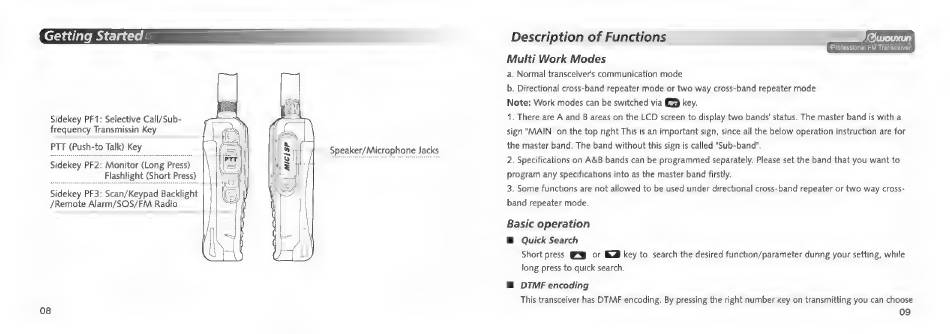

Sidekey PF1: Selective Call/Sub-
PIT (Ризћ- to Talk) Key
Sidekey PF2: Monitor (Long Press)
_Flashlight (Short Press)
Sidekey PF3: Scan/Keypad Backlight
/Remote Alarm/SOS/FM Radio
08
Speaker/Microphone Jacks
Description of Functions
Multi Work Modes
a. Normal transceivers communication mode
(Фшоихип
Professional FM Transceiver
b. Directional cross-band repeater mode or two way cross-band repeater mode
Note: Work modes can be switched via key.
1. There are A and В areas on the LCD screen to display two bands' status. The master band is with a
sign "MAIN" on the top right.This is an important sign, since all the below operation instruction are for
the master band. The band without this sign is called "Sub-band".
2. Specifications on A&B bands can be programmed separately. Please set the band that you want to
program any specifications into as the master band firstly.
3. Some functions are not allowed to be used under directional cross-band repeater or two way cross-
band repeater mode.
Basic operation
B Quick Search
Short press SW ог @@ key to search the desired function/parameter during your setting, while
long press to quick search.
B DTMF encoding
This transceiver has DTMF encoding. By pressing the right number key on transmitting you can choose
09
