USE AND CARE GUIDE

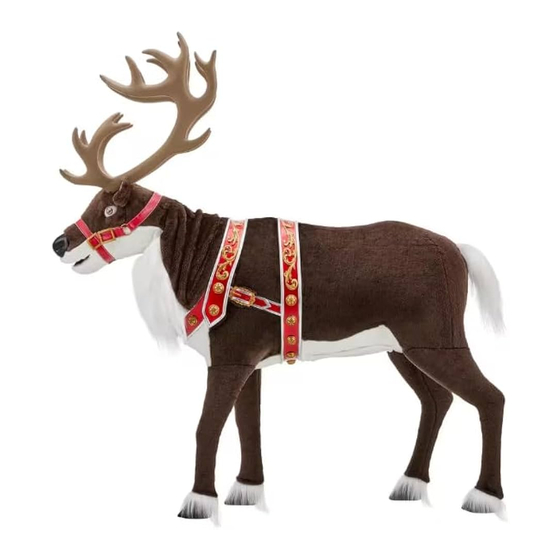

4.5 FT ANIMATED REINDEER
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt ready
and email the SVI customer experience team (customerservice@svius.com) within 90 days of the date of
purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM
PARTS LIST
A. Body x 1
B. Left Front Leg x 1
C. Right Front Leg x 1
D. Left Hind Leg x 1
E. Right Hind Leg x 1
F. Head x 1
G. Left Antler x 1
H. Right Antler x 1
I. Small Parts Bag x 1
J. Adapter * x 1
* Power Adapter Spec
Input: 120V~60Hz
Output: 5.9V 2A
Wattage: 11.8W
NOTE: Do not
overtighten.
E
D
NOTE: Use the zipper at the neck of the (F) Head to close the
area between the white and brown fur.
F
F
A
F
G
Screw
M6*50mm
C
B
A
F
A
IMPORTANT TIPS:
• Ensure that item's adapter is plugged in at the Function Control Box and
plugged in the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: Head doesn't move left and right or up and
down), ensure that cables are connected to their corresponding cable as
shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Be sure nothing is blocking the sensor. See Operations Instructions page 4 for
complete details.
A B
X2 Screw X4 Screw
M6*55mm M6*50mm
H I
1
2
3
1.1
Screw
M6*55mm
H
H
3.1
C D E
IR SENSOR
M5 hex wrench
(included)
J
F
A
NOTE: Connect loose end of rod from
Body (A) to motor shaft inside Head
(F). Secure with cotter pins.
4
NOTE: Do not
overtighten.
G
H
USA 1011183710
CAN 1001872350
Model 24SV24394
F
F
A
2.1
G
G
4.1
