USE AND CARE GUIDE
TM

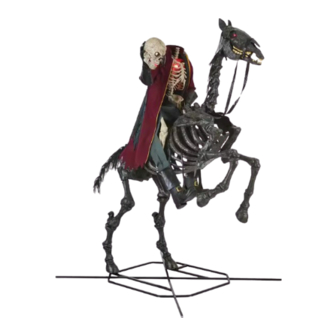

8.5 FT. KNIGHT DULLAHAN
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM

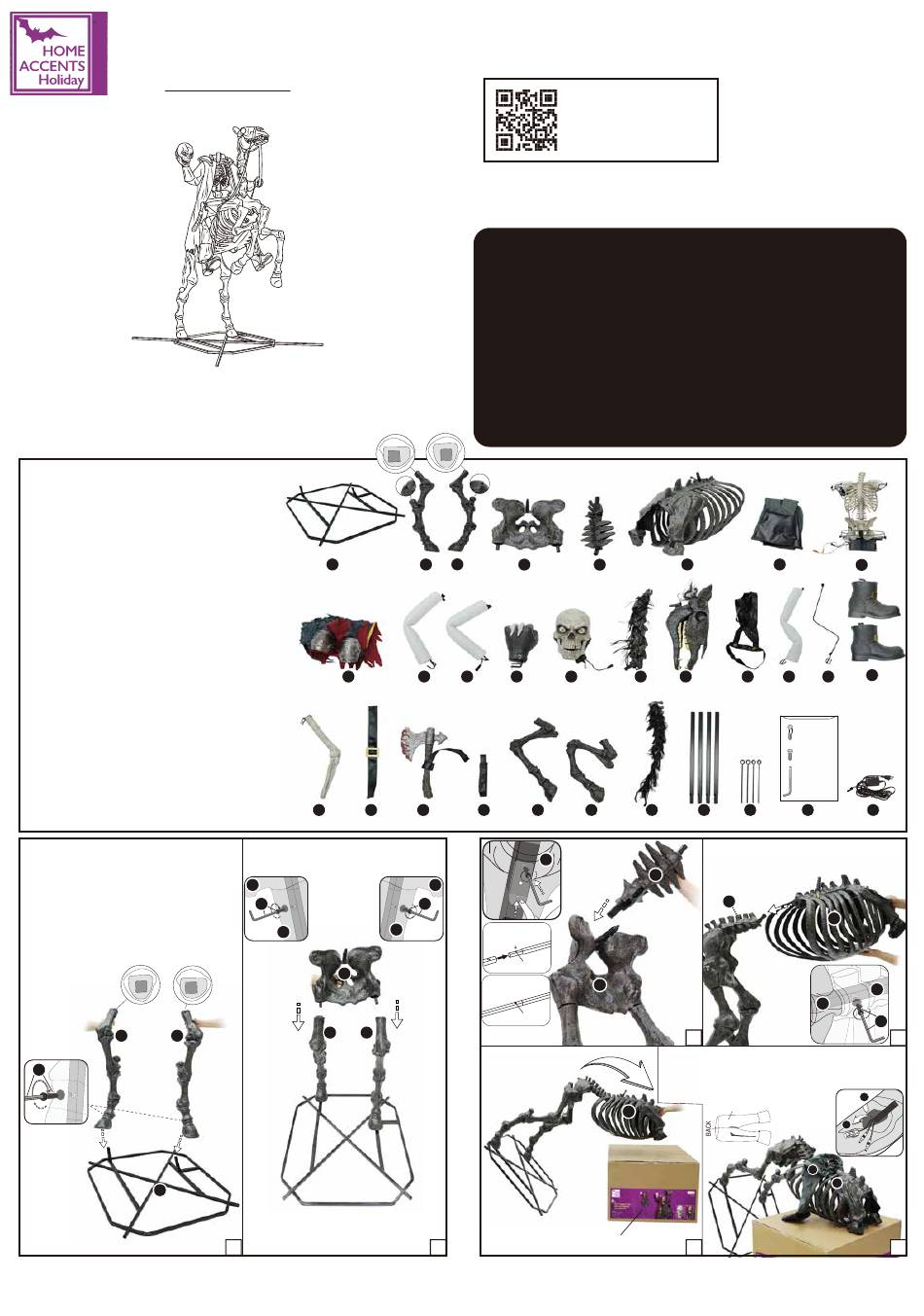

PARTS LIST
A. Base x 1
B. Left Lower Leg x 1
C. Right Lower Leg x 1
D. Horse Pelvis x 1
E. Lower Spine x 1
F. Horse Ribcage x 1
G. Rider Pants x 1
H. Rider Body with Box x 1
I. Rider Jacket x 1
J. Left Arm x 1
K. Right Arm x 1
L. Left Hand x 1
M. Right Hand with Rider Head x 1
N. Horse Neck x 1
O. Horse Head x 1
P. Reins
Q. Left Leg with Foam x 1
R. Right Leg Frame x 1
S. Boots x 2
T. Right Leg x 1
U. Belt x 1
V. Axe x 1
W. Stirrup x 1
X. Horse Left Foreleg x 1
Y. Horse Right Foreleg x 1
Z. Horse Tail x 1
Z1. Base Extenders x 4
Z2. Stakes x 4
Z3. Small Parts Bag x 1
Z4. Adapter * x 1
Power Adapter * Spec
Input: 120V~60Hz
Output: 5.9V 3.0A
Wattage: 17.7W
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
C B
Z
3
M6*31mm
BACK
A
RIGHT
FRONT
A
I
T U
M6*31mm
D
Z
3
C
D
C B
LEFT
1.1
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE
RECOMMENDED. PLEASE FOLLOW THE STEP BY STEP GUIDE AND
ENJOY YOUR 8.5 FT. KNIGHT DULLAHAN!
IMPORTANT TIPS:
• Ensure that item's adapter is plugged in with the screw cap tightened at the
Function Control Box and plugged in the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: eyes & body don't light up, head and arm don't
move), ensure that cables are connected to their corresponding cable as shown
in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor. Prop only speaks on SENSOR mode,
TIMER mode, and when Step Pad is pressed. See Operations Instructions page 5
for complete details.
B C D
J K L
V W X
E
D
Z
3
B
Locking Pin
Click
Means It's
Locked
M6*31mm
1.2
Video assembly
instructions
available online
E F
M N O
Y Z Z
1
E
E
D
2.1
NOTE: Set the hole of the (G) Pants over the pole at
the top of the (F) Horse Ribcage. Make sure the
cables at the top of this pole also come through the
hole in the (G) Pants.
FRONT
F
Outer Box
2.3
USA Item 1010830996
Model 24SV24282
G H
S
P Q R
X2 Screw
M6*56mm
X8 Screw
M6*31mm
M5 hex wrench
(included)
Z Z Z
2 3 4
F
F
E
Z
3
M6*31mm
2.2
F
G
G
F
2.4
