USE AND CARE GUIDE
TM
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM
PARTS LIST
A. Base x 1
B. Lower Support Pole x 1
C. Upper Support Pole x 1
D. Body Hoop x 1
E. Body Frame with Box x 1
F. Costume x 1
G. Left Arm x 1
H. Right Arm x 1
I. Cuffs x 2
J. Lower Sword x 1
K. Upper Sword x 1
L. Sword Hilt with Hands x 1
M. Head x 1
N. Adaptor x 1
Power Adapter * Spec
Input: 120V~60Hz
Output: 5.9V 1.5A
Wattage: 8.85W
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
B
BACK
A
RIGHT
FRONT

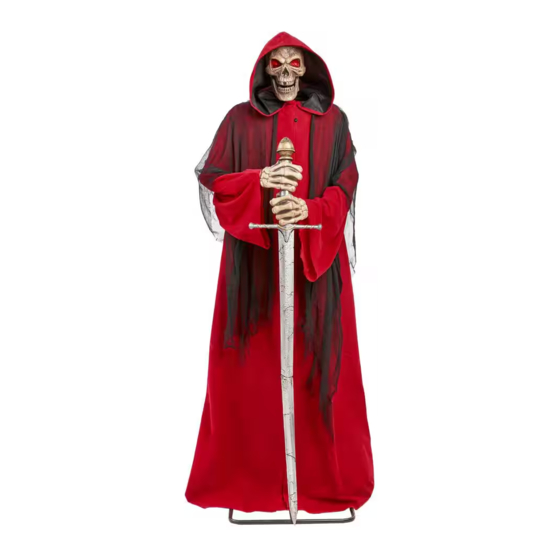

72" Reaper
A
F
B
A
LEFT
1.1
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the Function Control Box and in
the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up), ensure
that cables are connected to their corresponding cable as shown in the instruc-
tion sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor.
B
G H
L M
1.2
USA Item 1010746491
C D
I
N
C
B
2 1
.
Model 24SV24260
E
J K
D
C
2.2
1/4
