USE AND CARE GUIDE
TM

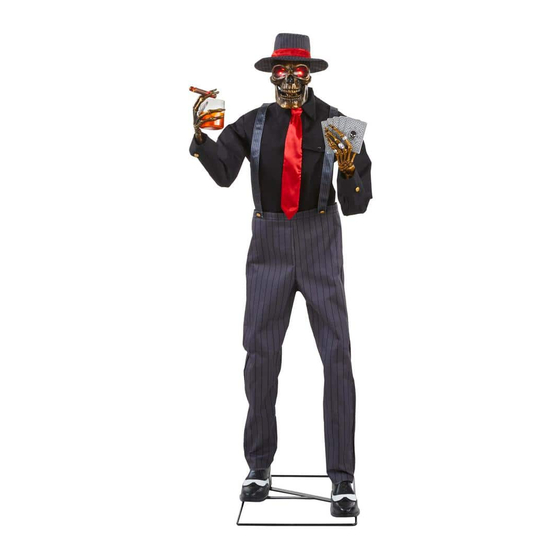

6.5 FT LED JACK OF SPADES
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM
PARTS LIST
A. Standing Base x 1
B. Sitting Base x 1
C. Lower Leg Poles x 2
D. Left Shoe x 1
E. Right Shoe x 1
F. Upper Leg Poles x 2
G. Leg Foam x 2
H. Pants x 1
I. Lower Body Frame x 1
J. Body Hoop x 1
K. Upper Body Frame with Control Box x 1
L. Left Arm x 1
M. Right Arm x 1
N. Shirt x 1
O. Left Hand with Cards x 1
P. Right Hand with Glass x 1
Q. Neck x 1
R. Head x 1
S. Hat x 1
T. Adapter * x 1
Power Adapter * Spec
Input: 120V~60Hz
Output: 5.9V 2.0A
Wattage: 11.8W
STANDING POSE
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
Locking Pin
Click
Means It's
Locked
C
C
BACK
LEFT
A
RIGHT
FRONT
OR
A
I
Q
E
C C
1.1
IMPORTANT TIPS:
• Ensure that item's adapter is plugged in at the Function Control Box and
plugged in the wall.
• Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: cigar or eyes don't light up, jaw or arm don't
move), ensure that cables are connected to their corresponding cable as shown
in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor. See Operations Instructions page 4 for
complete details.
B C
J K L
R S
D
F
C
1.2
USA Item 1010831006
Canada Item 1001852748
Model 24SV24259
Video assembly
instructions
available online
D
E F G
M N
T
F
G
C
2.1
H
O P
G
2.2
1/5
