USE AND CARE GUIDE
TM

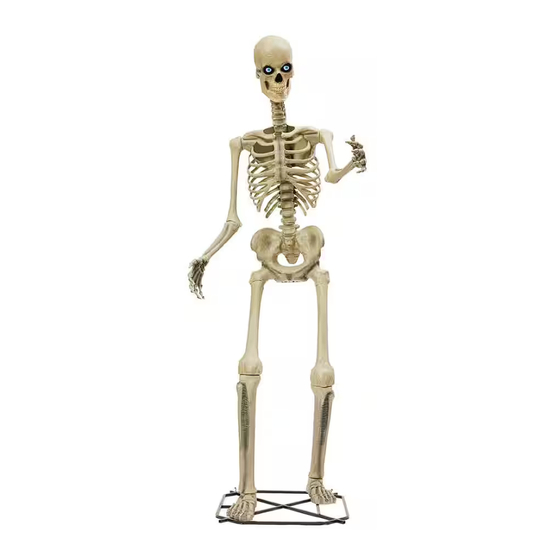

12FT SKELLY WITH SERVO
Questions, problems, missing parts? Before returning to the store, please have a copy of your receipt
ready and email the SVI customer experience team (customerservice@svius.com) within 90 days of
the date of purchase or call Home Accents Holiday Customer Service 8 a.m. - 7 p.m., EST,
Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-855-HD-HOLIDAY (1-855-434-6543)
HOMEDEPOT.COM
PARTS LIST
A. Base x 1
B. Right Foot x 1
C. Left Foot x 1
D. Right Lower Support Pole x 1
E. Left Lower Support Pole x 1
F. Right Shin x 1
G. Left Shin x 1
H. Upper Support Pole x 2
I. Right Femur x 1
J. Left Femur x 1
K. Pelvis x 1
L. Spinal Support x 1
M. Rib Cage with Servo Head Bracket x 1
N. Right Humerus x 1
O. Left Humerus x 1
P. Right Forearm x 1
Q. Left Forearm x 1
R. Head x 1
S. Base Stabilizer x 4
T. Loop Screw x 1
Power Adapter * Spec
U. Cable x 1
V. Stake x 4 Input: 120V~60Hz
W. Adapter * x 1
Output: 5.9V 3A
X. Remote Control x 1
Wattage: 17.7W
NOTE: Throughout the instructions, Right
and Left are relative to the character.
Hex wrench included for assembly.
B
BACK
C
RIGHT
A
LEFT
FRONT
A
K
T
Click
Means It's
Locking Pin
Locked
D E
BACK
RIGHT
A
FRONT
1 1
.
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE RECOMMENDED.
PLEASE FOLLOW THE STEP BY STEP GUIDE AND ENJOY YOUR 12 FOOT
SKELETON!
IMPORTANT TIPS:
• If not functioning properly (eyes don't light up), ensure that cables are
connected to their corresponding cable as shown in the instruction sheet (See
steps 5.1 and 7.2).
• If item does not activate when turned on, ensure that the adapter is plugged
into a live outlet.
• If the Remote Control is not working. Make sure you are withing a 20 ft.
range of the 12ft Skelly with Servo. If the issue persists, replace the batteries
in the Remote Control with fresh batteries (2 x 1.5V AAA). If there is still a
problem with your Remote Control, contact customer service.
B C D
L
M
U V W
NOTE: Slide the two shins over
the lower support poles and fit
them onto the feet as shown.
F
D
LEFT
1 2
.
USA Item 1010851070
Model 24SV24665
E
F G H
P Q R
N O
TOOLS REQUIRED
X
M6 hex wrench
ON•OFF/ MODE/
MARCHE MODE/
•ARRÊT/ MODO
ENCENDER
(included)
•APAGAR
FCC ID:2BEA3-24386
IC:10335A-24386
MODEL: HAL-24386
H
G
F
E
2 1
.
I J
S
Small phillips
screwdriver
(not included)
H
G
2 2
.
